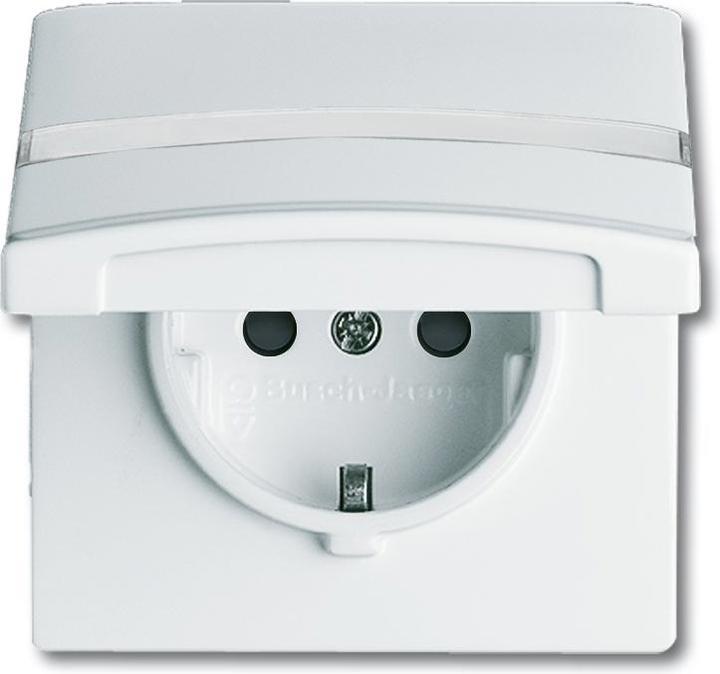

Busch-Jaeger Schuko socket outlet insert 20 EUGKBN-34-101 Manufacturer: Busch-Jaeger Designation: Schuko socket outlet insert IP44 alpine white Type: 20 EUGKBN-34-101 Design: SCHUKO Protective contact: yes Protective conductor contact round: no Number of active contacts (round): 2 With signal lamp: no With built-in USB power supply: no Number of units: 1 Number of modules (with modular design): 1 Number of phases: 1 Imprint/labeling: without Connection type: plug-in terminal With hinged cover: yes With increased contact protection: yes Text field/labeling area: yes Color: alpine white RAL number (similar): 9010 Transparent: no Lockable: no Ejector mechanism: no Insulated installation: yes With function lighting: no With orientation light: no Overvoltage protection: no Residual current protection: no With fine-wire fuse: no Special power supply: without special power supply Mounting type: flush-mounted Mounting type: claw/screw mounting Material: plastic Material grade: thermoplastic Halogen-free: yes Surface protection: Untreated Surface finish: glossy Antibacterial treatment: no With on/off switch: no With loop-through function: yes Twisted central insert: no Rated current: 16 A Rated voltage: 250 V Frequency: 50 Hz Rated residual current: 0 mA Suitable for Protection class (IP): IP44 Impact resistance: IK04 Device width: 71 mm Device height: 12 mm Device depth: 32 mm Min. Device box depth: 40 mm Cover: central plate For "difficult conditions" (according to VDE): noBusch-Jaeger Schuko socket outlet insert 20 EUGKBN-34-101: further detailsLabeling field 66.7 x 10 mm. With increased touch protection. Supplied with sealing ring. IP 44 only in combination with frame Allwetter 44®. With plug-in connection. 2-pole (2 P + E) Suitable labeling software at www.BUSCH-JAEGER-Beschriftungstool.de. , EAN: 4011395172322.
