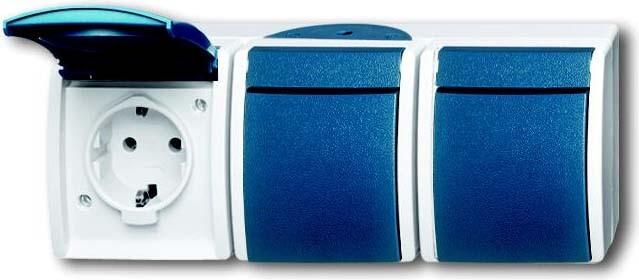

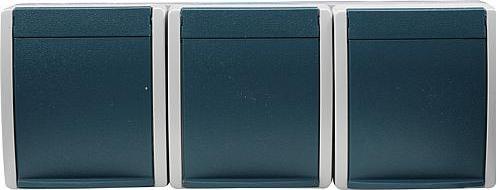

Busch-Jaeger Schuko socket outlet 3f, 2300/3 EW-53

Manufacturer: Busch-Jaeger
Designation: Schuko socket outlet 3f, horizontal
Type: 2300/3 EW-53
Design: Schuko
Protective contact: Yes
Protective conductor contact round: No
Number of active contacts (round): 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 3
Number of modules (for modular design): 1
Number of phases: 1
Imprint/marking: Without
Connection type: Screw terminal
With hinged cover: Yes
With increased touch protection: No
Text field/labeling area: No
Color: Gray/blue-green
RAL number (similar): 7035
Transparent: No
Lockable: No
Ejector mechanism: No
Insulated installation: Yes
With function lighting: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With fine-wire fuse: No
Special power supply: Without special power supply
Mounting type: Surface-mounted
Mounting type: Fastening with screw
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Matt
Antibacterial treatment: No
With on/off switch: No
With loop-through function: Yes
Twisted central insert: No
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Rated residual current: 0 mA
Suitable for protection class (IP): IP44
Impact resistance: IK04

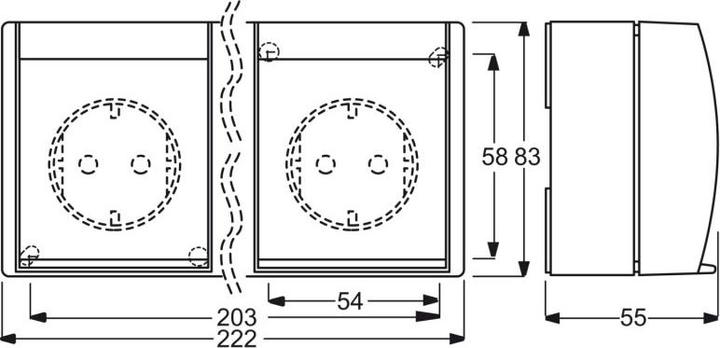

Device width: 222 mm
Device height: 83 mm
Device depth: 55 mm
Min. depth of device box: 0 mm
Cover: Complete housing
For "difficult conditions" (according to VDE): No

Further details: For horizontal mounting. With screw connection. Pre-wired. With hinged covers. 2 P + E. Can be labeled with label holder 1763-53. Switches, pushbuttons, light signals, or Schuko sockets with lock can be used instead of Schuko sockets. EAN: 4011395993293.
