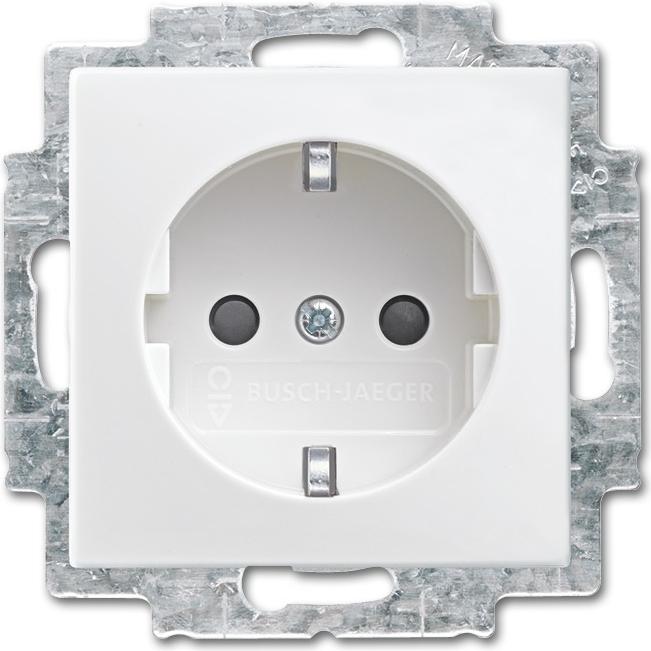

Busch-Jaeger Schuko socket outlet insert 20 EUCBLI-914

Manufacturer: Busch-Jaeger
Designation: Schuko socket outlet insert
Color: Alpine white
Type: 20 EUCBLI-914
Design: Schuko
Protective contact: Yes
Number of active contacts: 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 1
Number of modules: 1
Number of phases: 1
Connection type: Plug-in terminal
With hinged cover: No
With increased touch protection: Yes
Text field/labeling area: No
RAL number (similar): 9010
Lockable: No
Ejector mechanism: No
Insulated installation: Yes
With function lighting: No
With orientation light: Yes
Overvoltage protection: No
Residual current protection: No
With microfuse: No
Special power supply: Without special power supply
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Glossy
Antibacterial treatment: No
With on/off switch: No
With loop-through function: Yes
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Rated residual current: 0 mA
Suitable for protection class (IP): IP20
Impact resistance: IK03
Device width: 71 mm
Device height: 12 mm
Device depth: 32 mm
Min. device box depth: 40 mm
Cover: Central plate
For "difficult conditions" (according to VDE): No

Further details: With increased touch protection, plug connection, 2-pole (2 P + E), separate connection leads for switching contact, and light emitting diode. Schuko socket outlet Safety+ with shutter (increased contact protection according to VDE 0620). EAN: 4011395191231.
