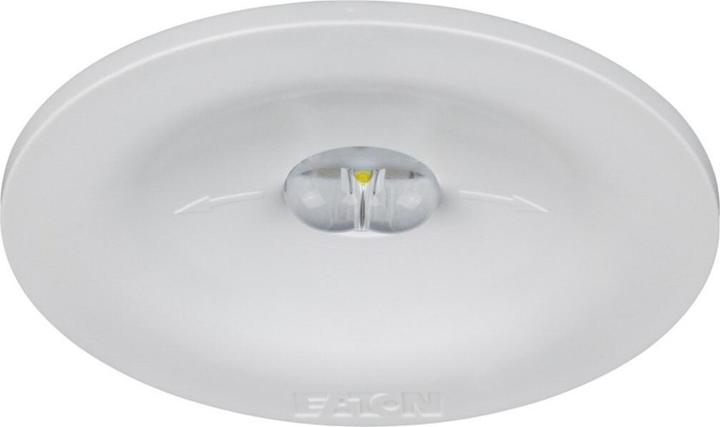

Ceag Notlichtsysteme LED safety light GuideLedSL13011.2CGS

Manufacturer: Ceag Notlichtsysteme
Designation: LED safety light
Type: GuideLedSL13011.2CGS
Mounting type: Recessed
With pictogram: No
Monitoring device: Monitoring module (centrally supplied system)
With remote switch connection: Yes
Power supply: Central (central battery)
Illuminant: LED not replaceable
With illuminant: Yes
Lampholder: Without
Housing material: Plastic
Housing colour: White
Voltage type: DC
Rated voltage: 220-240 V
Control gear: LED control gear current-controlled
Light distributor: Focus lens
Energy efficiency class of the permanently installed light source: A++, A+, A (LED)
Rated service life L80/B10 at 25 °C: 100,000 h
Protection class (IP): IP41
Impact resistance: IK03
Protection class: II
Luminaire with limited surface temperature "D symbol": No
Rated ambient temperature according to IEC62722-2-1: -20 to 40 °C
Max. system power: 3.9 W
Rated luminous flux to IEC 62722-2-1: 300 lm
Power factor: 0.59
Width: 0.001 mm
Height/depth: 0.001 mm
Length: 0.001 mm
Outer diameter: 80 mm
Installation height/depth: 40 mm
Installation diameter: 64 mm
Wiring type: Suitable for through-wiring
Conductor cross-section: 2.5 mm²
Connection type: Plug-in connection

Ceag emergency lighting systems LED emergency light GuideLedSL13011.2CGS: more details GuideLed SL 13011.2 CG-S, round recessed ceiling light, with asymmetrical optics for escape route illumination, for mounting heights up to 7 m, 4000 K, LED supply and CG-S technology in housing with strain relief.
