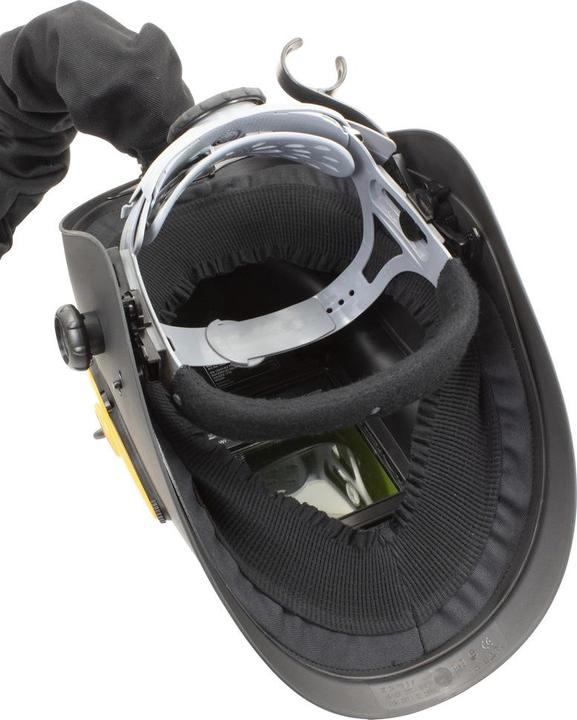

The WH70 BR3 AIR automatic welding helmet with R60 blower set provides the user with clean fresh air while working. Easy to handle and maintain, this helmet protects the user from a variety of hazards when working with welding machines, plasma cutting devices, and also when using angle grinders. When using the plasma cutting device, there is a high concentration of toxic gases, vapors, and dusts, in addition to high IR and UV radiation. The user must always be effectively protected from these particularly health-threatening substances.

Features:

• Helmet:
• Power supply of the helmet via solar cells
• Visible area activated shade level 6-8 and 9-13, non-activated visible area shade level 4
• Ultraviolet/Infrared protection (at least 16 in every shading)
• Suitable for manual arc, MIG/MAG, and TIG welding applications from 50 A
• Sensitivity adjustment

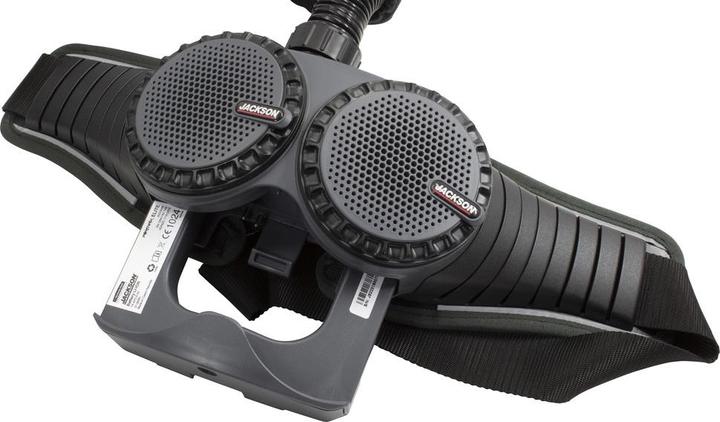

• Respiratory protection system:
• Vibration alarm when filter is saturated
• Two-stage airflow regulation
• Removable Li-ion battery for a minimum of 8 hours of runtime
• Vibration alarm and acoustic warning signal at low battery level

Delivery includes:
1 automatic helmet
1 blower unit
1 air hose
1 charger
1 battery

Technical data:
Lens: 96 x 68.5 mm
Switching time light-dark: 0.15 ms
Switching time dark-light: 0.1-1.0 s
Optical class: 1
Temperature range: -10 to +60 °C
Weight: 4.5 kg

Article number: JD201374.
