Product details

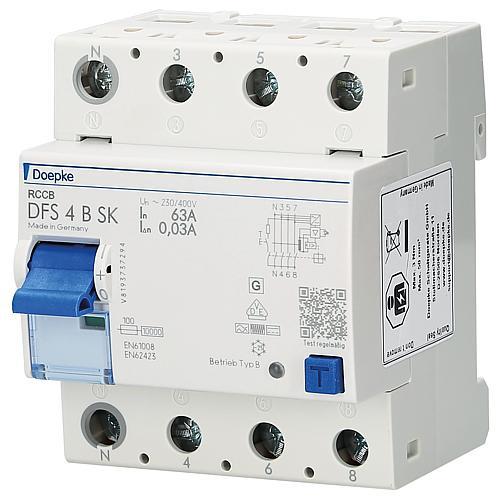

The Doepke RCD is a highly advanced residual current device designed for use in single-phase and three-phase networks. It provides comprehensive protection for people, animals, and electrical systems by immediately interrupting the power supply in the event of dangerously high fault currents. The compact design of the device allows for easy installation on a DIN rail, occupying only four modular units. With a rated current of 63 A and high immunity to operational leakage and fault currents, this switch is particularly suitable for applications where high system availability is required. The type B all-current sensitivity ensures that the switch operates reliably across frequencies from 0 Hz to 150 kHz. Additionally, the tripped position of the multifunction switch lever facilitates troubleshooting, while the free labeling software supports the labeling of the switches.

  • All-current sensitive for frequencies from 0 Hz to 150 kHz
  • High immunity to operational leakage and fault currents from 1 kHz
  • Suitable for single-phase and three-phase networks
  • Easy installation on DIN rail with compact design
  • Increased surge current and lightning resistance.

Key specifications

Circuit breaker type
FI-LS fire protection switch
Length
90 mm
Width
40 mm
mounting style
Top-hat rail
number of poles
4
Item number
20024623

General information

Manufacturer
Doepke
Category
Residual-current device
Manufacturer no.
09144998
Release date
16-3-2022
External links
Manufacturer's site (de)

Colour

Exact colour description
RAL 7035

Circuit Breaker Features

Circuit breaker type
FI-LS fire protection switch
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
B
Rated current
63 A
Rated current
0.03 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
400 V
Residual current (rated differential current)
10000 A
Protection type (IP code)
IP20

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
90 mm
Width
40 mm
Height
80 mm
Weight
460 g
