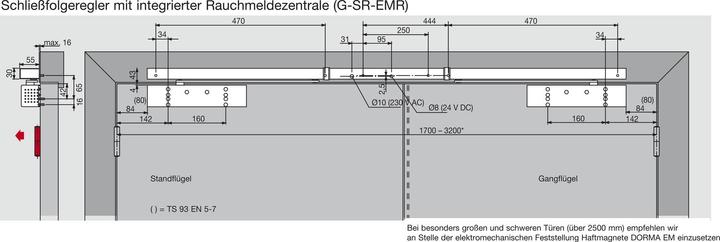

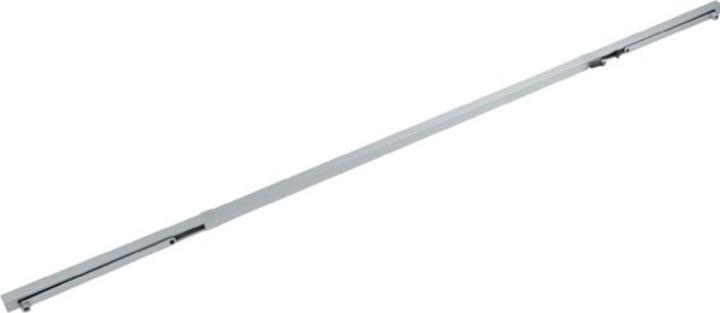

For TS 93 B, the correct sequence when closing double-leaf doors is ensured. Individual locking of the door leaves in case of an alarm or power failure will be released, and the door will be closed by the door closer. The control is done via an external or integrated smoke detector control panel. The adjustable release force (tool-free) allows the locking to be easily triggered manually. Suitable for both DIN-L and DIN-R doors. It is combined with the door closer DORMA TS 93 B. Installation is on the hinge side. For doors where the locking point should be over 130°, we recommend using DORMA EM adhesive magnets instead of the electromechanical locking.

Duty cycle: 100% ED. F-suitability certificate: The DORMA TS 93 G-SR-EMF 1, EMF 2, and EMF 1G systems are approved by the German Institute for Structural Engineering, Berlin, with all major smoke detection systems, and acceptance testing is required. The DORMA TS 93 G-SR-EMR 1, EMF -2, and EMF 1G systems are approved by the German Institute for Structural Engineering, Berlin, as locking systems, and acceptance testing is required.

Additional technical specifications: Duty cycle ED: 100%. Delivery without door closer, please order separately.

Features:
Color: silver
Model: GSR-EMR-2/V
Min. door width: 1700 mm
Max. door width: 2500 mm
Compatible with: TS 93 B
Release moment: adjustable
Design: electromechanical
Locking range up to: 130°
Input voltage: 230 V / AC
Locking range from: 80°
Function: closing sequence control
Mounting type: hinge side
Operating voltage.
