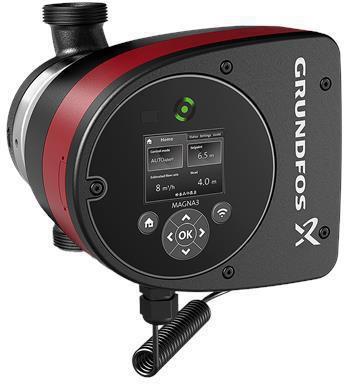

Grundfos Electronically controlled circulation pump MAGNA3 25-80 180 mm 1 1/2" 97924625

Price in EUR including VAT, free shipping
Ratings
Delivered between Fri, 6-6 and Wed, 11-6
Only 2 items in stock at supplier

Product details

Electrically controlled single pump made of cast iron.

Further technical features:

  • Pump circuit: other
  • Insulation class according to IEC: F
  • Pump height: 185 mm
  • Max. medium temperature (continuous operation): 110 °C
  • Installation length: 180 mm
  • Type of speed control: infinitely variable
  • Delivery head at nominal volume flow: 55.38 m
  • Min. medium temperature (continuous operation): -10 °C
  • Communication bus: possible with accessories
  • Energy efficiency index (EEI): 0.18
  • Oval flange shape: no
  • Nominal flow rate: 4.5 m³/h
  • Pressure stage item: PN 10
  • Electrical connection: other
  • Speed control motor: built-in
  • Frequency: 50/60 Hz
  • Double pump: no
  • Material impeller/pump wheel: plastic
  • Absorbed motor power (P1): 116 kW
  • Speed: 4050 1/min
  • Rated current: 1.02 A
  • Nominal diameter: DN 25.

Key specifications

Maximum flow rate
8.50 l/min
Power
9 W
Max. Delivery pressure
10 bar
Item number
24946493

General information

Manufacturer
Grundfos
Category
Water pumps
Manufacturer no.
97924625
Release date
23-9-2022

Water Pump Features

Power
9 W
Maximum flow rate
8.50 l/min
Max. Delivery pressure
10 bar
Protection type (IP code)
IP44

Power supply

Power supply
Electrical connection

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Package dimensions

Length
28.10 cm
Width
24.80 cm
Height
22.50 cm
Weight
5.89 kg
