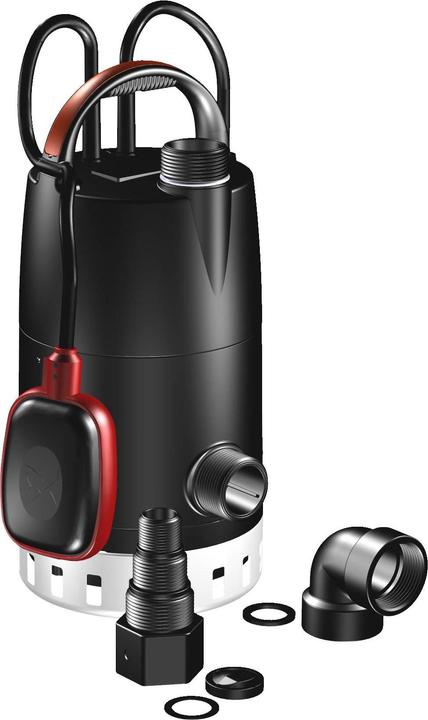

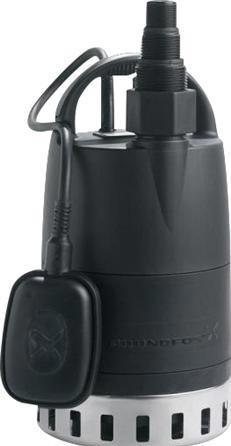

Pump made of composite and stainless steel motor 1x 220-230 V, 50 Hz, with selectable pressure outlet, integrated cooling jacket, free passage 10 mm, triple shaft seal, standard flat suction down to 3 mm residual water level. Scope of delivery: with plug, 10 m mains cable, non-return flap and transition piece, graduated to R 3/4", 1" or 1 1/4" ET and 90° angle with Rp 1 1/4" IT as well as threaded cap.

Further technical features:

• Connection external thread gas cylindrical BSPP (ISO 228-1)
• Supply voltage 1x 230 V
• Absorbed motor power (P1) 250 kW

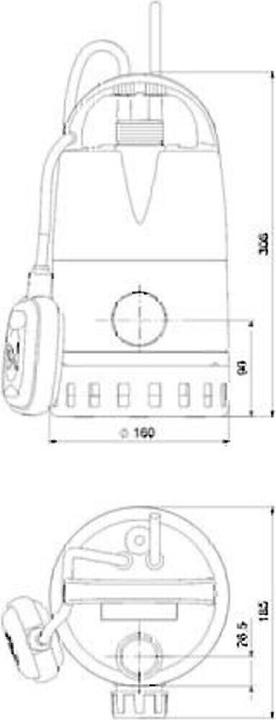

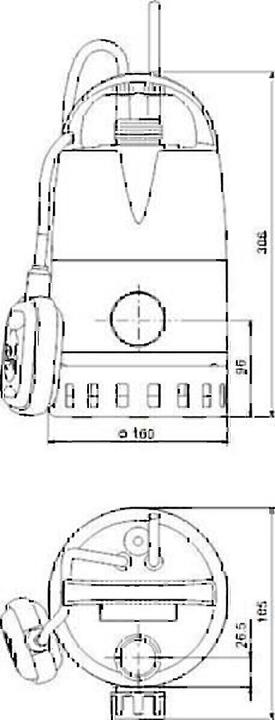

• Diameter pump 160 mm
• Delivery head at nominal flow rate 24.71
• Frequency 50 Hz
• Insulation class according to IEC B
• Length of connecting cable 5 m
• Motor output power (P2) 108 kW
• Rated current 0.98 A
• Rated volumetric flow 2.56
• Pump height 306.6 mm
• Material of motor housing polypropylene (PP)
• Max. delivery head 5 m
• Max. flow rate 6.
