Hager FI-LS 1P+N 6kA B-16A 30mA Type F QC

Price in EUR including VAT
Ratings
Delivered between Sat, 12-7 and Tue, 15-7
Only 2 pieces in stock at supplier
free shipping

Product details

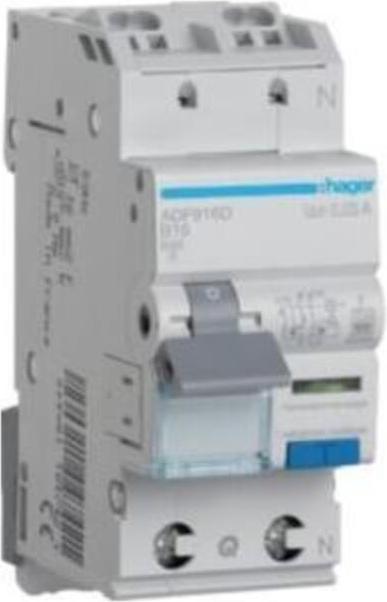

Hager Residual Current Circuit Breaker ADF916D

Manufacturer: Hager
Designation: Residual Current Circuit Breaker 1P+N 6kA B-16A 30mA
Type: ADF916D
Number of poles (total): 2
Number of protected poles: 1
Rated voltage: 230 V
Rated insulation voltage Ui: 500 V
Rated impulse voltage withstand Uimp: 4 kV
Rated current: 16 A
Rated residual current: 0.03 A
Residual current type: F
Energy limiting class: 3
Power loss: 5.2 W
Rated short-circuit capacity according to IEC 60947-2: 6 kA
Rated breaking capacity Icn according to EN 61009-1: 6 kA
Tripping characteristic: short-time delayed
Impulse current withstand: 3 kA
Type of voltage: AC
Frequency: 50 Hz
Tripping characteristic: B
Switched neutral conductor: yes
With locking device: yes
Overvoltage category: 3
Degree of pollution: 2
Ambient temperature during operation: -25..40 °C
Width in division units: 2
Installation depth: 68 mm
Flush-mounted installation: yes
False tripping protection: yes
Protection class (IP): IP20
Connectable conductor cross-section single-core: 1..25 mm²
Connectable conductor cross-section multi-core: 1..16 mm²

Hager Residual Current Circuit Breaker ADF916D: additional details
Residual current circuit breaker 1P+N 6kA B-16A 30mA Type F QuickConnect. Residual current circuit breaker according to DIN EN 61009-1 (VDE 0664-20) with QuickConnect terminal, outgoing up to 20 A and incoming up to 63 A, blue test button and residual current display. Easy single removal from the phase rail connection. Suitable for retrofitting additional devices. Labeling option directly on the device.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Length
68 mm
Width
2 mm
mounting style
Flush-mounted
number of poles
2
Item number
44845671

General information

Manufacturer
Hager
Category
Residual-current device
Manufacturer no.
ADF916D
Release date
11-4-2024

Colour

Colour
Blue
Exact colour description
Blue

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
mounting style
Flush-mounted
number of poles
2
Tripping characteristic
B
Rated current
16 A
Rated current
0.03 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
500 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
France

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
68 mm
Width
2 mm
Height
10 mm

Legal Notice

Product Safety

14-day cancellation right
30-day right of return if unopened
24 Months statutory warranty
