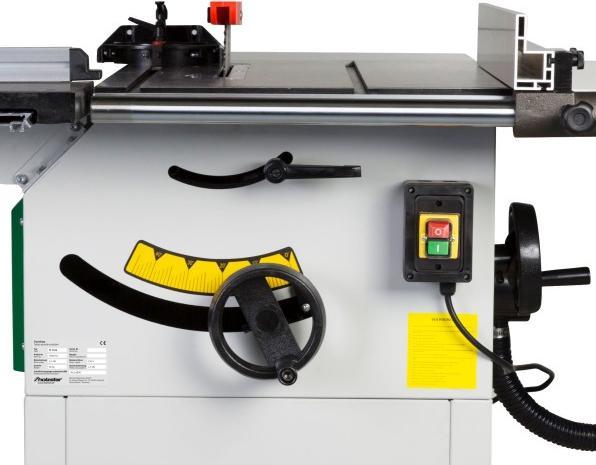

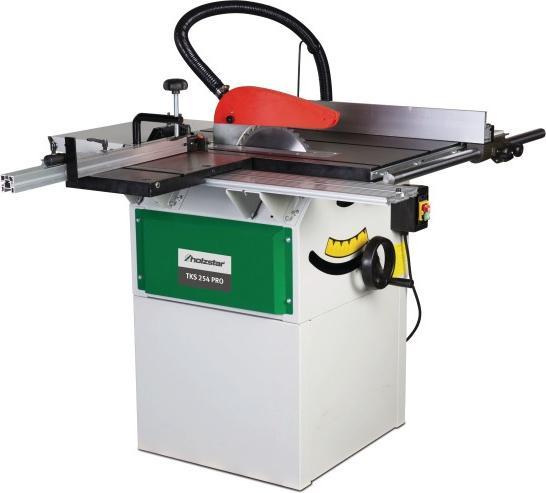

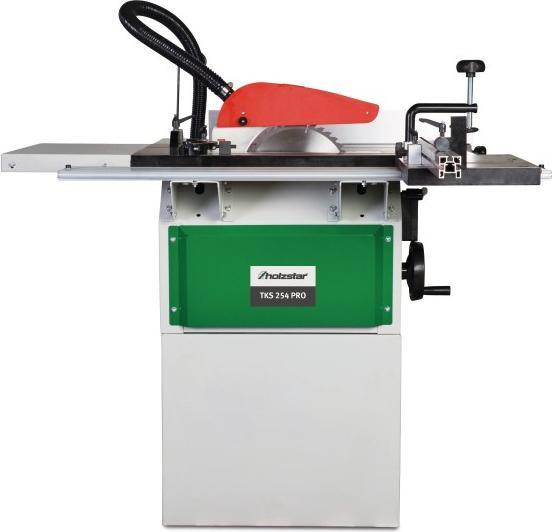

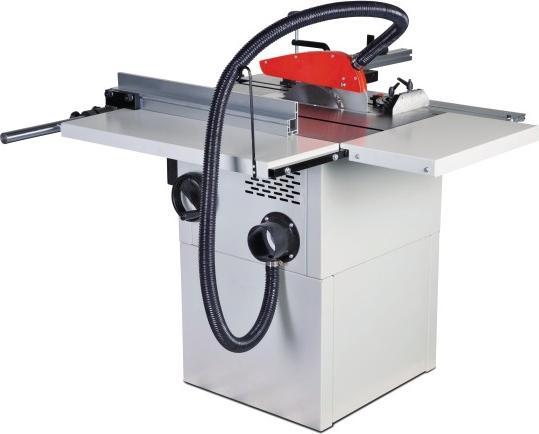

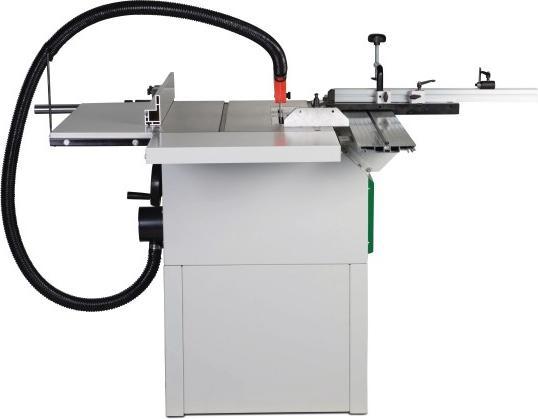

Large cast table. Saw blade tilt from 0° to 45°, precise, degree-accurate, and easily adjustable via handwheel and scale. Large central dust extraction connection Ø 100 mm. The saw blade height adjustment is also made via a handwheel from the operator's front. The stable suspension of the saw unit at the front and rear allows for precise cuts. Equipped with a powerful motor and thermal overload protection. Includes saw blade guard with integrated dust extraction connection. With standard table extension.

Technical Data:

Dimensions and Weights:
Length (Product) approx. 1430 mm
Width/Depth (Product) approx. 1000 mm
Height (Product) approx. 1030 mm
Weight (Net) approx. 131 kg

Dust Extraction Connection:
Dust extraction nozzle diameter 100 mm
Dust extraction nozzle diameter saw blade guard 30 mm

Electrical Data:
Connection voltage 400 V
Network frequency 50 Hz
Power of drive motor 1.5 kW
Input power 2.0 kW
Total power 2.1 kW
Total connection value 3.5 A
Motor speed 2800 min¯¹

Sliding Table and Table:
Format sliding table length 400 mm
Format sliding table width 250 mm
Table length 720 mm
Table width 480 mm
Table height 835 mm

Noise Emission:
Sound pressure level 83 dB(A)

Circular Saw Unit:
Cutting width with parallel stop 610 mm
Max. cross-cut width left of the saw blade 550 mm
Saw blade tilt 90° to -45°
Max. cutting height 90° 80 mm
Max. cutting height -45° 54 mm
Saw blade diameter 254 mm
Saw blade speed 4000 min¯¹

Scope of Delivery:
Base
Sliding table
Table extension
Parallel stop
Saw blade 254 x 30 x 3.0 mm Z40
Saw blade guard with dust extraction hose
Angle stop.
