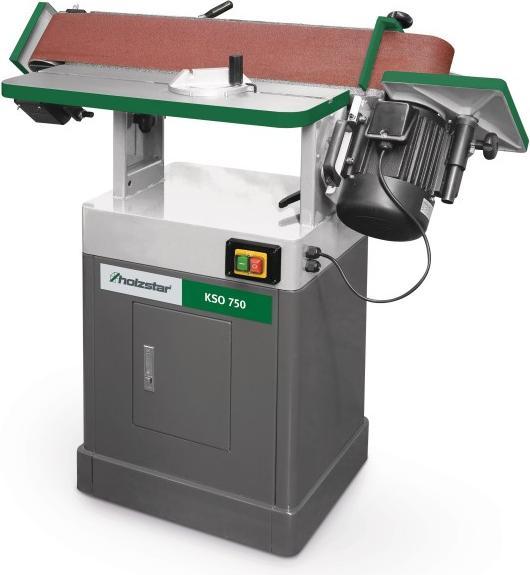

Description: With an oscillating sanding belt for good material removal performance, a clean sanding pattern, and a longer lifespan of the sanding belt. Features a height-adjustable sanding table. Comes standard with a continuously adjustable miter and workpiece stop from -45° to +45°. Continuously adjustable sanding unit (0°-90°) for vertical and horizontal sanding. Table height adjustment via handwheel. Robust work table made of cast iron with T-slots, ensuring stable machine operation during work. Includes a height-adjustable auxiliary table for contour sanding. Quick and easy sanding belt change via quick-clamping system. Spring-loaded clamping device for uniform belt tension. Sanding sole with graphite coating included as standard. Dust extraction port Ø 100 mm. Comes with a lockable storage compartment in the standard base.

Equipment details: Thanks to the continuously adjustable sanding unit, the edge sanding machine is suitable for various sanding processes, such as vertical and horizontal sanding.

Technical data:
Dimensions and weights:
Length (product) approx. 1300 mm
Width/Depth (product) approx. 750 mm
Height (product) approx. 1200 mm
Weight (net) approx. 120 kg

Dust extraction connection:
Dust extraction port diameter 100 mm

Work table(s):
Long table length 750 mm
Long table width 250 mm
Height adjustment long table 80 mm
Cross table height min. 980 mm
Work table height adjustment 80 mm

Electrical data:
Connection voltage 230 V
Mains frequency 50 Hz

Sanding unit:
Sanding belt length 2270 mm
Sanding belt width 150 mm
Belt speed(s) 16.3 m/s
Sanding area length 820 mm
Sanding area width 170 mm

Scope of delivery:
Miter stop
Workpiece stop 499 x 178 x 69 mm
Sanding belt grit K60.
