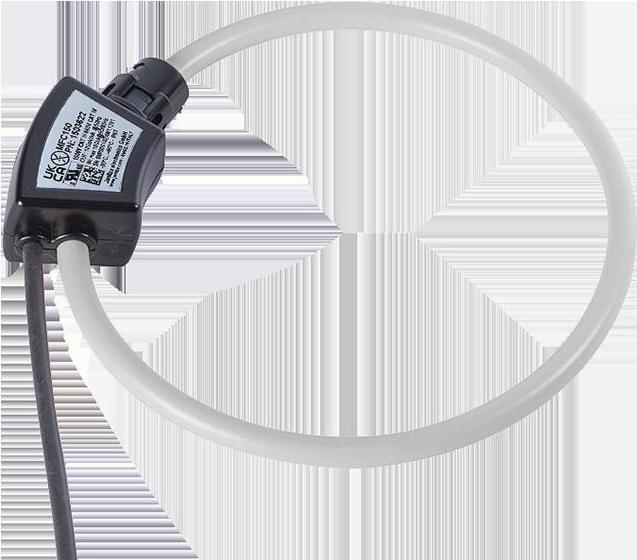

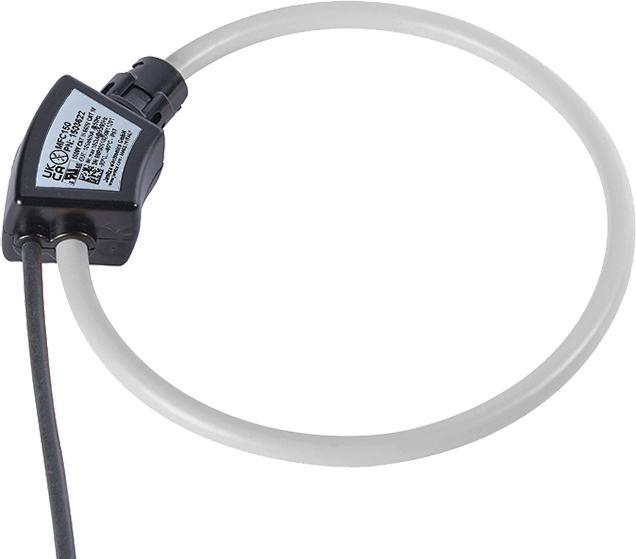

Janitza 1503622 Rogowski coil for RCM Ø 120mm 1pc.
Price in EUR including VAT
Delivered between Thu, 10-7 and Sat, 12-7
8 pieces in stock at supplier
8 pieces in stock at supplier
free shipping
Product details
Rogowski Current Transformer, 120 mm (UL certified)
The Rogowski coil is used for measuring differential currents of type A on busbars and high-current lines. The output signal from the Rogowski coil is fed to the differential current monitoring device RCM 201-ROGO, which outputs a standardized AC current of up to 0 to 40 mA.
- 100 mV/kA output signal (RMS)
- Suitable for the measurement ranges of the RCM 201-ROGO: 5 A, 10 A, 25 A, 125 A
- Connection cable 3 m
- Position error +/- 1 %
- Frequency range: 40 Hz to 20 kHz
- Rated insulation voltage 1 kV CAT III.
Item number | 36140204 |
Manufacturer | Janitza |
Category | Control technology accessories |
Manufacturer no. | 1503622 |
Release date | 8-6-2023 |
Country of origin | Italy |
CO₂-Emission | |
Climate contribution |
Length | 3000 mm |
Specifications may include unverified machine translations.
