Mennekes Eight-way distributor THW version 230 V/400 V, 32 A
9 x, CEE, CEE 7/3Free shipping starting at 30,–

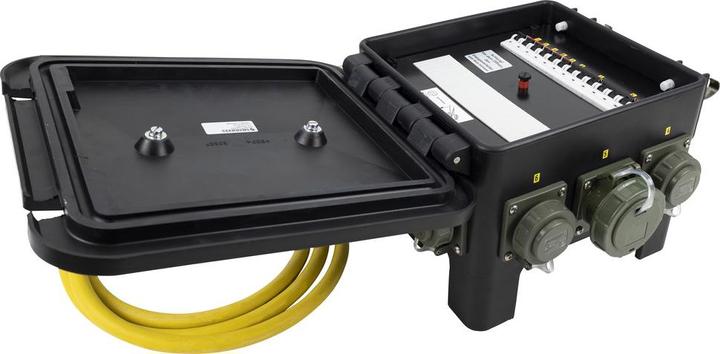

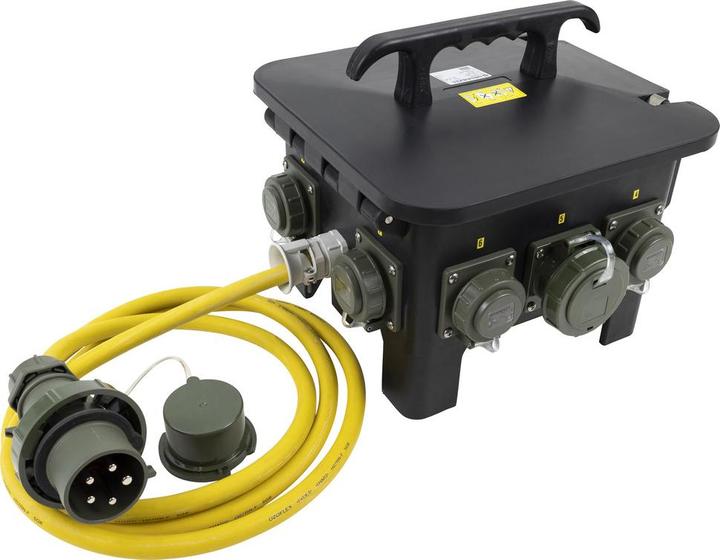

Equipped with a 3 m sulfur yellow, highly flexible special rubber cable H07RN-F5G6 according to DIN VDE 0282. The fuse is located under the hinged housing cover with a stainless steel quick-release fastener. It features a black solid rubber housing.
The six Schuko couplings (16 A, 230 V, IP68) are individually fused via circuit breakers. The two CEE couplings (16 A, 400 V, IP68) are also individually fused via circuit breakers.
Selection criteria:
THW part number: 6150T00134
Dimensions (L x W x H): 360 x 340 x 330 mm
Technical data:
Input: 1 x plug CEE 5-pin 32 A, IP67
Output: 6 x coupler Schuko, IP68, individually fused via 6 circuit breakers
Output 2: 2 x CEE 5-pin 16 A couplings, fused via 16 A circuit breaker
Output 3: 1 x coupling CEE 5-pole 32 A, IP67
Connection cable: 3 m
Protection class: IP54
Load capacity: 32 A
Cable: H07RN-F5G6
Weight: 10 kg
Item number: MEN7528182
Shop number: 201902.
Output voltage | 400 V |
Number of power sockets | 9 x |
Circuit breaker type | Miniature circuit breaker |
Protection type (IP code) | IP54 |
Item number | 24513094 |
Manufacturer | Mennekes |
Category | Power distributors |
Manufacturer no. | 7528182 |
Release date | 9-3-2023 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Solid rubber |
Cable length | 3 m |
Output voltage | 400 V |
Number of power sockets | 9 x |
Socket type | CEE, CEE 7/3 |
Circuit breaker type | Miniature circuit breaker |
Protection type (IP code) | IP54 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Width | 34 cm |
Length | 36 cm |
Height | 33 cm |
Weight | 10000 g |
Product Safety |
