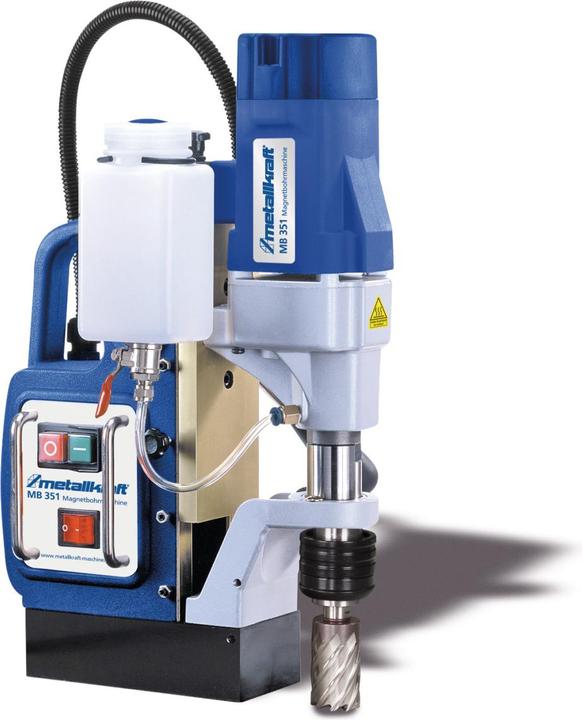

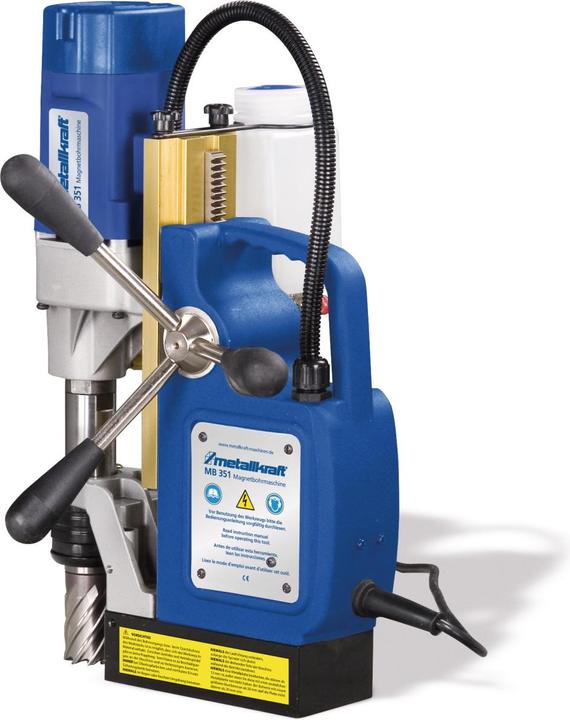

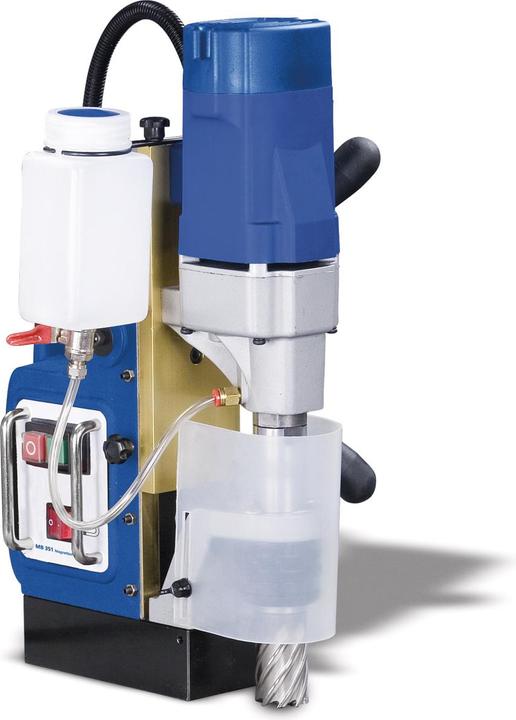

Metallkraft Magnetic Core Drill MB 351

• For core drills with a 19 mm Weldon shank

• Stable drill guidance due to a long and particularly deep-mounted quill holder

• The device is grounded and double insulated, making it ideal for construction sites

• High magnetic holding power

• High-quality construction

• The coolant is fed through the drill

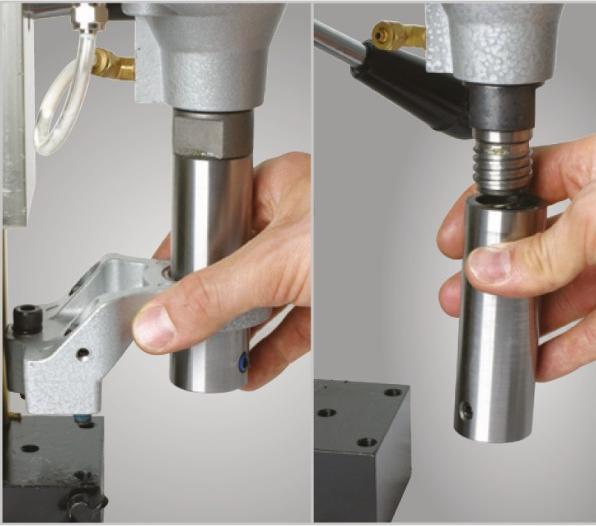

• Quick-release chuck for easy changing of core drills

• Conversion from core drilling to full drilling with just a few simple steps

• Safe and reliable operation

Technical Details

• Length approx.: 450 mm

• Width/Depth approx.: 330 mm

• Height approx.: 260 mm

• Weight approx.: 12.6 kg

• Main motor: 1.1 kW

• Spindle: M 24

• Drill: Weldon 3/4 "

• Under load (right rotation): 330 min¯¹

• Connection voltage: 230 V

• Max diameter with manual feed: 35 mm

• Max drilling depth with manual feed: 50 mm

• Holding power: 15000 N

• Base length: 165 mm

• Base width: 80 mm

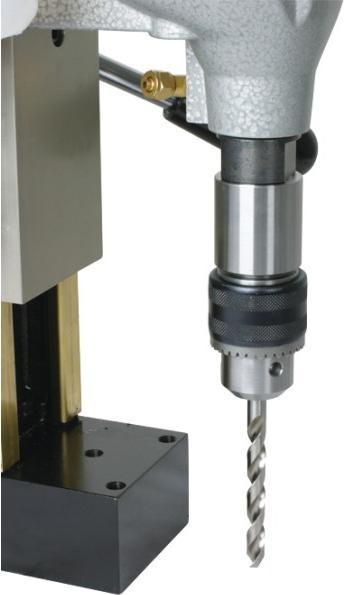

• Max diameter with adapter and drill chuck mounted: 13 mm

• Max drilling depth full drill with adapter and drill chuck mounted: 140 mm

Scope of Delivery

• 1 coolant tank and coolant line

• 1 safety device

• Operating tool

• Plastic carrying case

• 1 chain
