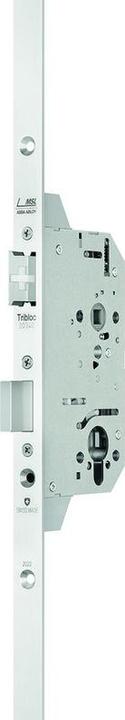

With the PolyTribloc, the function can be set to either pressure or key operation before installation. When the door is closed, turning the key in the locking direction extends all three bolts and blocks both the latch and the bolts. Unlocking occurs with a turn of the key in the opening direction, retracting all three bolts. To lock the mechanism with less effort, after a half turn of the key in the locking direction, the locking can be activated with an upward pressure movement. The key then only needs to be turned to the withdrawal position.

With an upward pressure movement, the additional bolts are extended. A turn of the key in the locking direction will extend the main bolt. Thus, the latch and additional bolts are blocked. Turning the key in the opening direction retracts the main bolt. The additional bolts and latch are retracted with a downward pressure movement.

• Tool-free adjustable for DIN right and left
• Four-point locking
• Two additional bolts and one main bolt
• Latch blocking
• Bolt and additional bolt extension of 20 mm
• Single turn
• Automatic pressure reset
• Switching from pressure to key operation and from key to pressure operation is possible

Application area
For entrance and apartment exit doors
For security and fire protection doors in both commercial and private sectors

Only use the bolt contact switch MSL 1886 on the frame side.
