Area: Harmony
Series: Harmony XVB

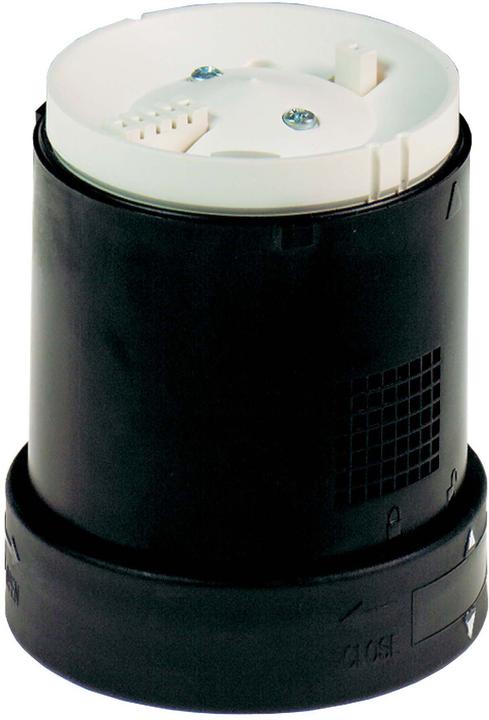

Module Type: Warning Sound Element
Power Type: AC
Supply Voltage: 120 - 230 V AC
Minimum Decibel: 70 dB
Maximum Decibel: 90 dB
Height: 63 mm
Base Diameter: 70 mm
Housing Color: Black

Complies with IEC/EN 60947-5-1 (Signal Lights, Base and Cover). CE, UL, CCC, CSA, GOST. Modular Signal Tower Schneider XVBC. The Harmony XVBC series from Schneider is a visual and acoustic signal tower designed to indicate various operating states for a device or system, such as start, machine stop, no material, call technical personnel, and fault signaling. These signal towers offer a high level of protection, additional brightness, and excellent reliability, making them suitable for any type of environment.

Industrial applications include machine manufacturers (assembly lines, etc.), mobile loads (mobile cranes, trolleys, etc.). The para-industrial and service sector includes highway toll stations, cash registers, distribution boards, etc.

Features and Benefits:

• Available as incandescent (bulbs must be ordered separately) and LED modules
• Mounting of up to 5 light modules or 4 light modules and one sound module possible
• Buzzer available with intermittent or continuous tone
• Base and cover for mounting must be ordered separately
• Pipes and pipe covers are available for higher mounting of signal lights
• Sound unit operates with a supply of 12–48 V AC or 120–230 V and delivers a sound level of 90 dB at a frequency of 0–12 kHz
• All units have an operating temperature range of –25 to +50 °C (except for continuous light lens units without bulbs: –25 to +70 °C)
• Made from fiberglass reinforced polyamide and polycarbonate
• Protection class IP65
• Signaling over long distances: 35 to 50 m
• The units have a diameter of 70 mm and a height of 63 mm
• Cable entry from the side or from below.
