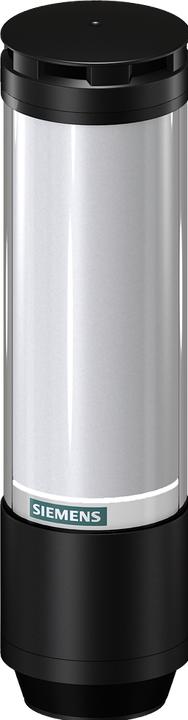

Siemens Digital Industry Electronics pre-assembled signal tower 8WD4613-5JH37. Manufacturer: Siemens Digital Industry. Description: Electronically pre-assembled signal tower, 9 segments. Type: 8WD4613-5JH37. Housing color: black. Housing material: plastic. Voltage type: DC. Rated voltage: 24 V. Number of colors: 1,000,000. Mounting type: other. Built-in acoustic signal: yes.

Additional details: Electronically configurable signal tower, conventional, 9 segments, with acoustic signal, M12 connector, 8-pole. The electronically configurable SIRIUS 8WD4 signal tower enables visual and/or acoustic signaling even in harsh environmental conditions both indoors and outdoors, e.g., for optical indication of operational status in manufacturing plants.

The signal tower allows flexible parameterization of the individual LED segments. Adjustable features include color and number of levels, light intensity, and light behavior, such as continuous, flashing, strobe, or rotating light. For signal towers with acoustic function, the signal type and volume can be varied up to 105 dB. The signal tower can be installed without special tools and wiring effort.

Configuration can be adjusted at any time to meet changed requirements via IO-Link or an M12 connector without any modifications. The modern yet robust industrial design allows for use in extreme conditions (IP 66, IP 69K). These signal towers are delivered pre-configured. They are available with 9 or 15 LED segments, with or without acoustic function, and with IO-Link or conventional 24V connection.

Optional accessories include various bases, tubes, and brackets for wall mounting. SIRIUS 8WD signal towers - modular and communication-capable with modern design. EAN: 4047621096360.
