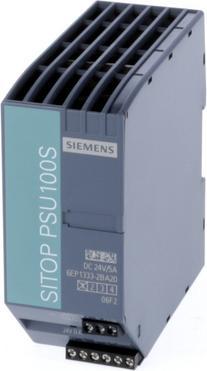

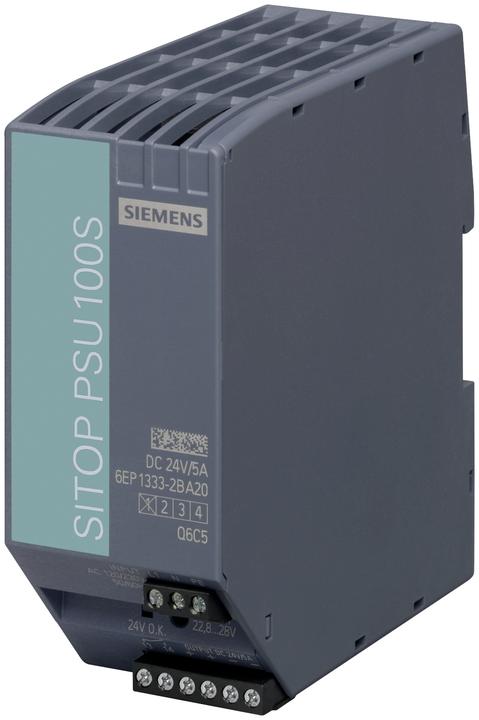

One third smaller, yet even more powerful: The SITOP smart is among the narrowest DIN rail power supplies and impresses with its outstanding overload behavior. Even high loads can be switched on without any issues. Rated outputs of continuously 120% make these power supplies some of the most reliable of their kind. Numerous certifications facilitate universal and worldwide use, as well as application in explosion-hazard areas.

The advantages at a glance:

• Rounded power range of 60 – 960 W for universal use
• Compact design with widths from 32.5 to 150 mm for minimal mounting space
• Easy DIN rail mounting
• Extra power: 150% of the rated output for 5 seconds as reliable overload protection – for trouble-free switching on of DC/DC converters, motors, and loads with high inrush current
• More power with a continuous 120% of the rated output up to 45 ºC
• Large adjustable output voltage range up to 28 V, easily accessible via potentiometer from the front
• Parallel connection possible for increased power
• Extensive certification according to UL, CSA, GL (Germanischer Lloyd), and ATEX directives (Atmosphère Explosible)
• Compatible with SITOP add-ons: redundancy modules, DC UPS modules, and selectivity modules
• Input voltage 120 V (85 - 132 V) / 230 V (170 - 264 V)
• All devices with network harmonic limitation according to EN 61000-3-2 except 6EP1332-2BA10, 6EP1333-2AA01, and 6EP1334-2AA01.
