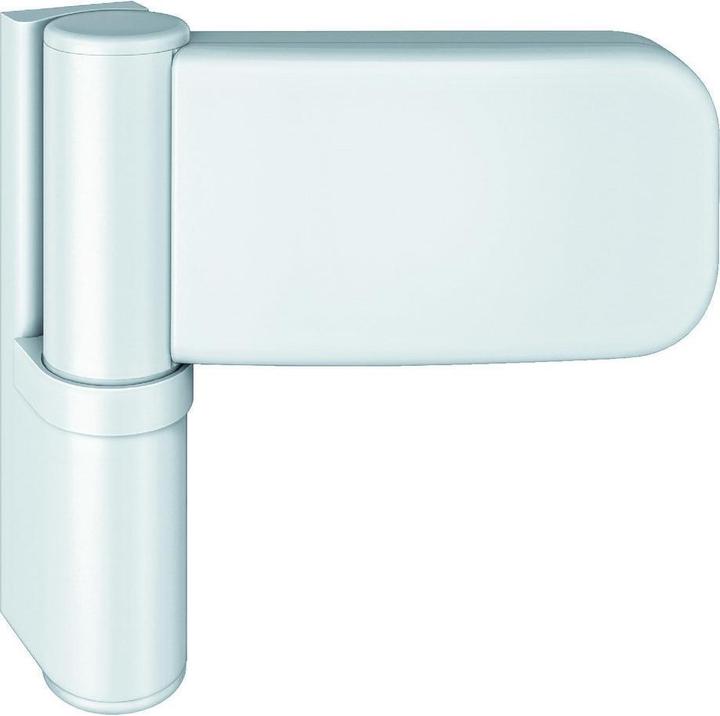

Simonswerk Front door hinge Siku 3D K 3030 steel white 120 kg Pin retention: yes PVC-U front doors
Currently out of stock
Free shipping starting at 30,–
Product details
For plastic front doors with angular bolt fastening for overlap thicknesses of 15-19 mm. Usable for DIN left/right. The roller length is 105 mm with a roller diameter of 24 mm. Features three-dimensional adjustability and maintenance-free sliding bearing technology, as well as an integrated safety device with a pin.
Additional technical features include a load capacity of up to 120 kg.
Contents: 3 pieces per carton.
Material group | Metal |
Material | Steel |
Door hinge type | Front door hinge |
Door hinge | Left, Right |
Load capacity | 120 kg |
Item number | 22076615 |
Manufacturer | Simonswerk |
Category | Door hinge |
Manufacturer no. | 5 190710 0 07003 |
Release date | 8-9-2022 |
External links |
Colour | White |
Exact colour description | RAL 9016, traffic white, White |
Material group | Metal |
Material | Steel |
Door hinge type | Front door hinge |
Door hinge | Left, Right |
Load capacity | 120 kg |
Roll diameter | 24 mm |
Country of origin | Czech Republic, Germany |
Length | 115 mm |
Width | 75 mm |
Height | 60 mm |
Weight | 600 g |
