Somfy Modernization Kit 1038131

Manufacturer: Somfy
Designation: Modernization Kit Radio io 10/17
Type: 1038131
Outer Diameter: 45 mm
Torque: 10 Nm
Square Steel Shaft SW 40: no
Square Steel Shaft SW 50: no
Square Steel Shaft SW 60: yes
Square Steel Shaft SW 70: yes
For Roller Shutters: yes
For Awnings: no
For Profile Tube Shaft: yes
Diameter of Profile Tube Shaft: 50 mm
Max. Roller Shutter Weight: 24 kg
Type of Limit Switches: electronic
Backjump: no
Electronic Travel Monitoring: no
Electronic Obstacle Detection: yes
With Coupling: yes
With Adapter for Shaft: yes
Length: 498 mm

Somfy Modernization Kit 1038131: additional details
The drive is controlled via radio control (included in delivery).

• Can be connected in parallel
• With obstacle detection and freeze protection
• Fixed/automatic end positions
• Somfy Drive Control
• Adjustable intermediate position
• Soft start and stop
• Two speeds

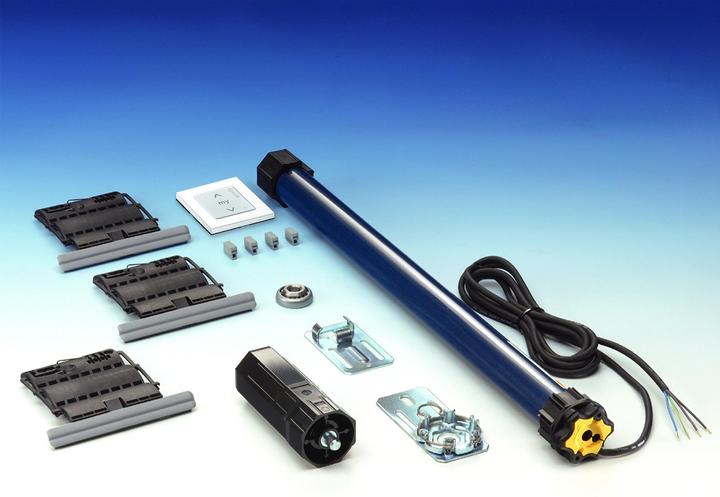

Package Contents:

• Radio Plug-in Drive

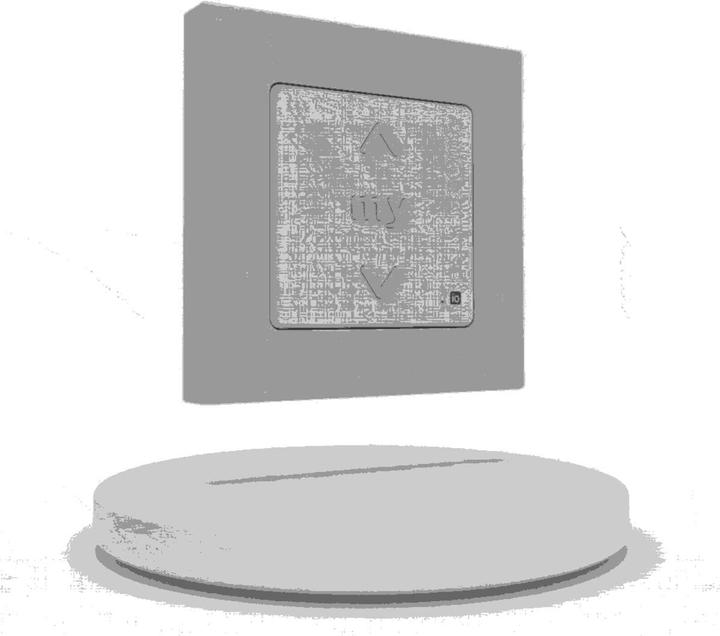

• Smoove 1 io Pure Radio Wall Transmitter
• Adapter and coupling for precise fitting of the drive in the square shaft
• Motor Bearing
• Counter/Ball Bearing for particularly safe, low-friction, and quiet operation
• Telescopic Roller Capsule
• Length adjustments of the roller shutter shaft can be easily and quickly made by removing the belt/gear drive
• Mounting Springs for easy, precise attachment of the roller shutter fabric to the square shaft
• Quick Connection Terminals
• 3 m black cable

Application Area Plastic: 4 sqm
Application Area Aluminum: 2.5 sqm
Use in Square Shaft: ø 60
Rated Torque: 10 Nm
Rated Speed: 17 rpm
Rated Voltage: 230 V
Frequency: 50 Hz
Rated Power Consumption: 55 W
EAN: 3660849563080.
