somfy Modernization kit 9/14 EGH 1023027
10 items in stock at supplier
Product details

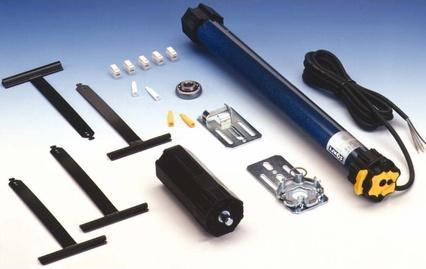

The Somfy complete package represents an all-in-one solution for various roller shutter installation situations and is characterized by user-friendliness and efficiency. The operation of the drive is carried out via the included wired Smoove UNO wall switches, eliminating the need for complex installation work. The system is designed for maximum comfort and durability, achieved among other things by a fixed end position setting and a smooth, quiet operation due to high-quality bearings. The package includes a powerful plug-in drive and matching components such as adapters, a drive for the 8-sided shaft, a robust motor bracket, and a telescopic roller capsule that allows for easy adjustment to the roller shutter shaft. Mounting springs, quick connection terminals including a 3-meter cable, and a Smoove UNO wall switch with a frame further facilitate installation. The drive is suitable for plastic roller shutters with an area of up to 5 m² and aluminum roller shutters with an area of up to 3.5 m², offering a rated torque of 9 Nm and a rated speed of 16 rpm at a nominal voltage of 230 V. With a power consumption of 110 W, a frequency of 50 Hz, and a diameter of 40 mm, the system strikes a balance between performance and energy efficiency. For those looking for a more flexible option, the io modernization kit is available. This minimizes wiring effort and allows for quick initialization, making it ideal for retrofitting. Thanks to the possibility of integration into Somfy's TaHoma home control system, the wireless drive can be incorporated into a wide range of other smart devices, enabling comprehensive home automation.
