Properties

DC TIG welding - direct current (DC). Welding of almost all metals, such as steel, stainless steel, copper and many more. Note: Not suitable for aluminium - an AC/DC device is required for this.
2 in 1 combination device - TIG welding is possible up to 200 A, MMA welding up to 160 A.

Note
The device is not intended for use in residential areas where the power supply is provided by a public low-voltage supply system. It may be difficult to ensure electromagnetic compatibility in these areas due to both conducted and radiated interference.

Technical data

Output current: TIG/ MMA 10 -200 A (TIG)/ 10 - 160 A (MMA)
Protection class: IP21S
Mains voltage: 1x 230 V AC
Mains frequency: 50/60 Hz
Maximum mains current (llmax): 30 A
Maximum effective mains current (l1eff): 11 ,6 A
Weight: 5.8 kg
Dimensions L x W x H (mm): 365 x 152 x 275
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 6097 4-10 (Class A)

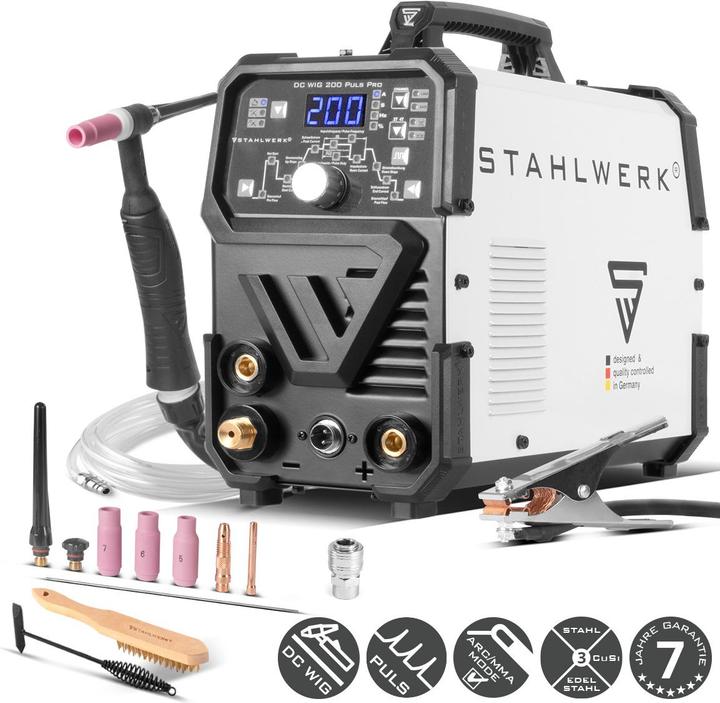

Scope of delivery

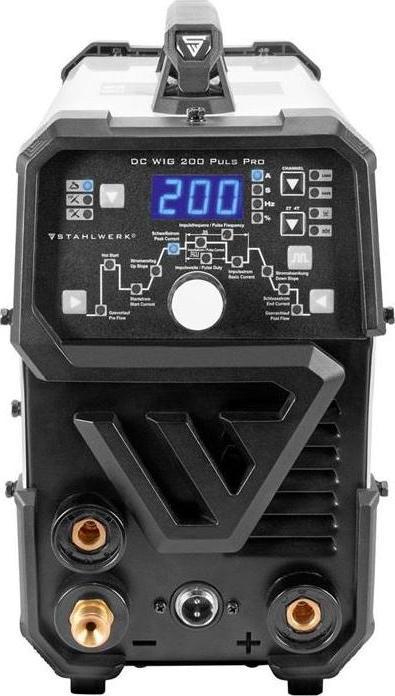

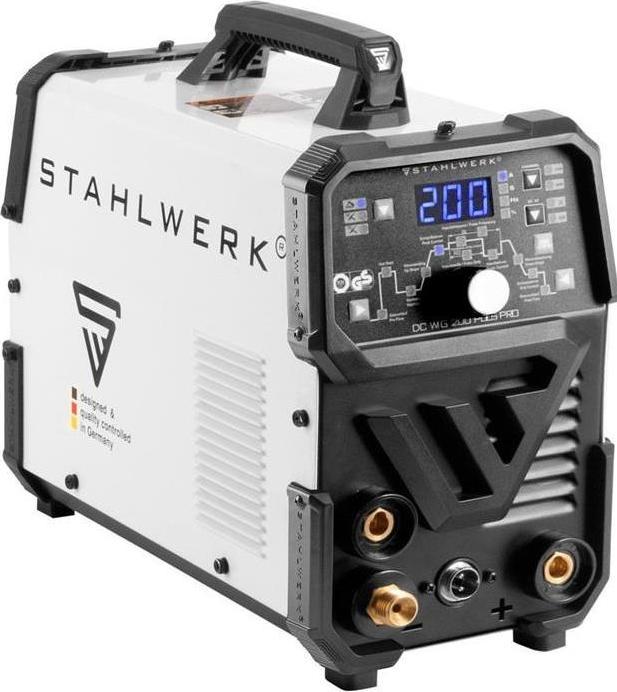

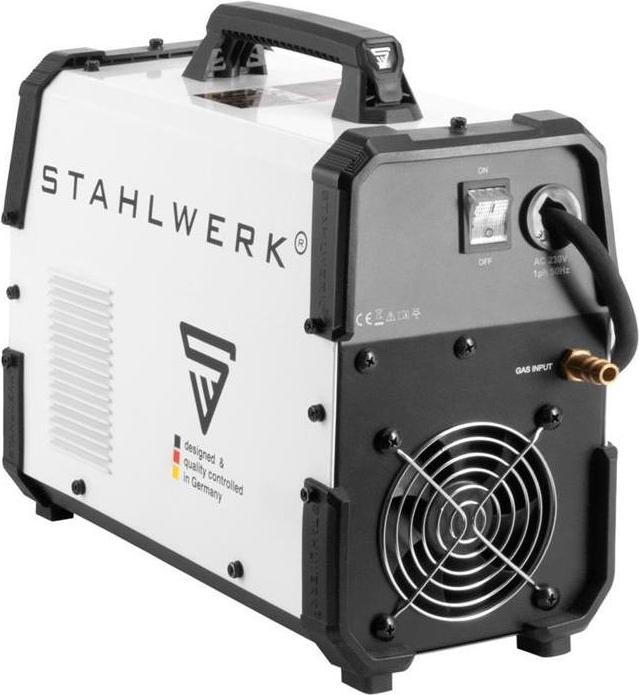

1 x DC TIG 200 Puls Pro steelworks
1 x Professional TIG welding torch WP-26F / hose package 3 metres, ball joint and flexible torch head
1 x TIG TIG accessory set 8 pieces: 3 x gas nozzles sizes: 5, 6, 7, 1 x clamping sleeve size 1.6, 1 x clamping sleeve housing size 1.6, 2 x torch caps - one short and one long, 1 x universal tungsten electrode 1.6 mm
1 x earth cable 3 metres
1 x wire brush
1 x gas connection hose with quick coupling 5 metres
1 x protective cover
