Properties

High-quality, robust pressure reducer with 2 scales and extra brass shut-off valve, manufactured in accordance with DIN EN ISO 2503
High-quality steelwork pressure reducer
MIG/MAG + TIG/TIG professional applications
Argon, CO2, mixed gas, shielding gas
Can be used universally on any gas cylinder with a W 21.8 x 1/14 connection.
Due to its high quality (brass) and properties, the pressure reducer can be used up to a pressure of 200 bar.

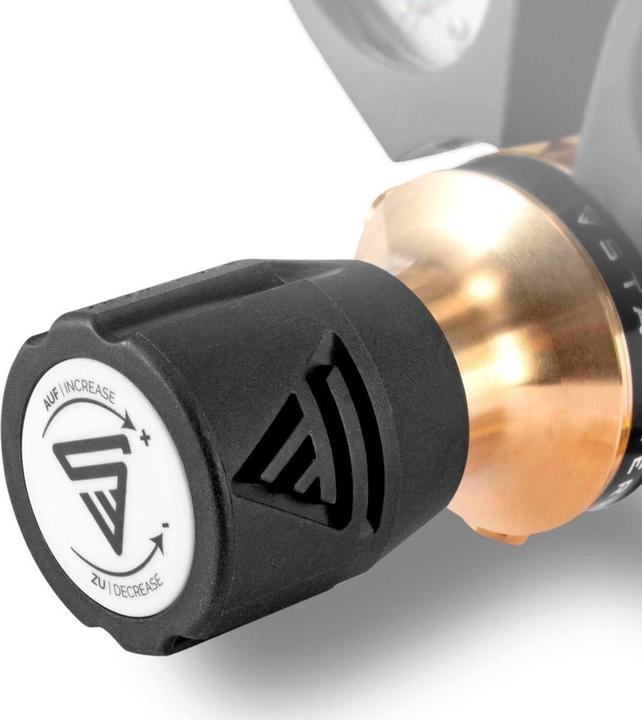

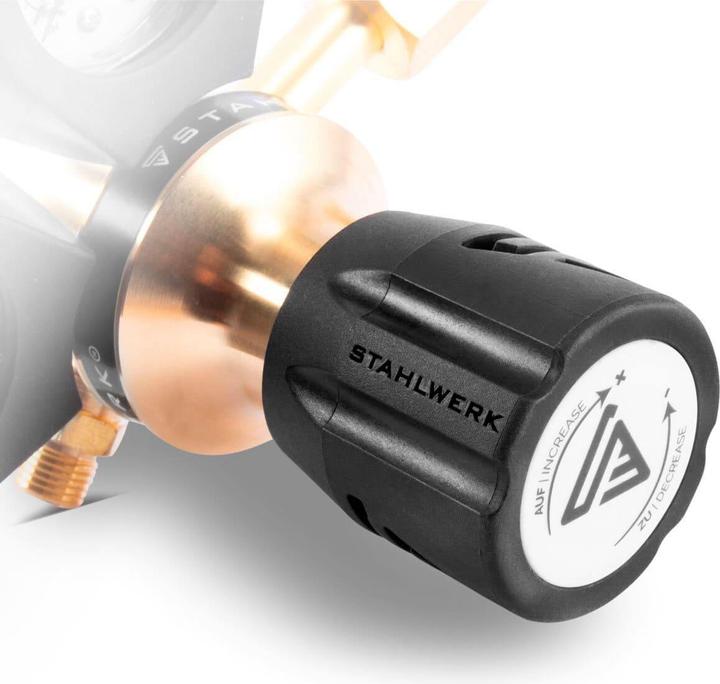

The flow rate of the litre display is regulated using the rotary knob.
The gauges are rubberised all round.
Ideal for MIG/MAG & TIG applications.
High-quality argon and CO2 gas fitting. Two large displays for pressure (bar) and content.
The dial gauges are precision instruments according to DIN.

Technical data

Manufacturer: Steel mill
Application: Argon, CO2, shielding gas, mixed gas
Maximum cylinder pressure gauge: 0-200 bar
Cylinder connection: W 21.8 x 1/14(Attention, gas cylinders from the Netherlands and Great Britain may have a different connection!)
Hose nozzle: 6-8 mm
Flow rate: 5-30 litres (CO2), 6-32 litres (argon) per minute
Material: Brass
standards: DIN EN ISO 2503
Weight: 1.1 kg

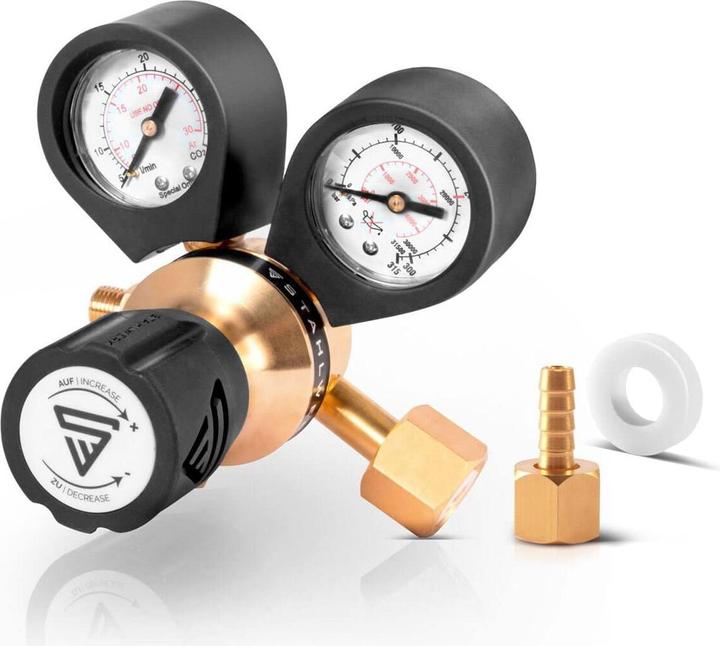

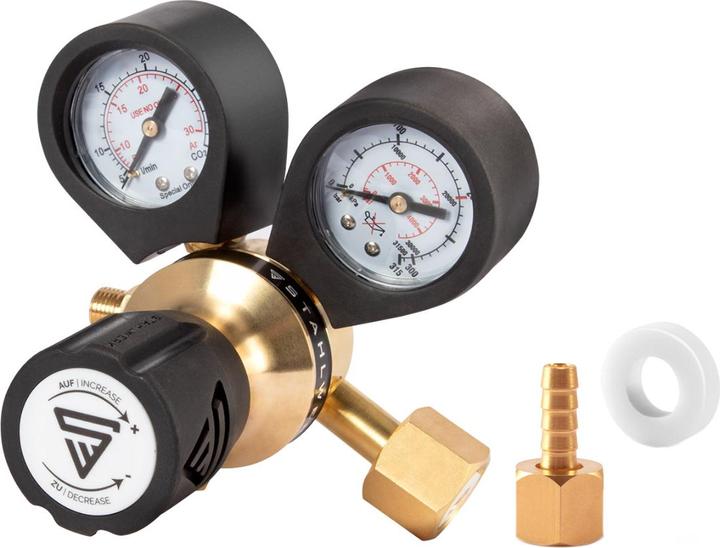

Scope of delivery

1 x pressure reducer
1 x hose nozzle for hoses with an internal diameter of 6 to 8 mm
1 x union nut for the hose nozzle
