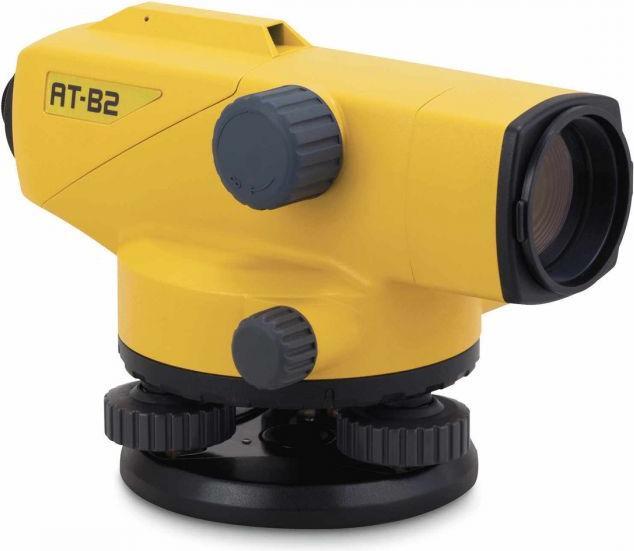

Topcon AT-B2 Automatic Level 32x + Tripod + Measuring Rod

Description
Precision from Topcon. All levels in the AT-B series feature a magnetically damped compensator and are highly resistant to cold, heat, and vibrations. Horizontal angles can be read directly in 1 gon or degree increments. The continuous fine adjustment allows for comfortable and precise aiming. Thanks to the carefully tuned autocollimation, Topcon's AT-B series automatic levels are ideal for determining height differences on busy and noisy construction sites. The automatic levels with an IPX6 protection class are therefore protected against strong water jets, rain showers, and even continuous rainfall. The new housing design also protects against fogging of the optics and condensation within the telescope.

Magnification 32×
Fast, accurate, and stable automatic compensation
Extremely short minimum distance: Focusing from 20 cm
Reliability in any weather
Fine adjustment via continuous drive

Technical Data
Effective lens diameter 42 mm
Magnification 32 x
Field of view (at 100 m) 1°20' (2.3 m)
Minimum focus / horizontal circle 0.2 m / 1° (1 g)
Compensator working range ±15'
Accuracy over 1 km double leveling 0.7 mm
Protection class IPX6

Scope of delivery
Transport case
Rain cover
Tripod 520066
Measuring rod 520054.
