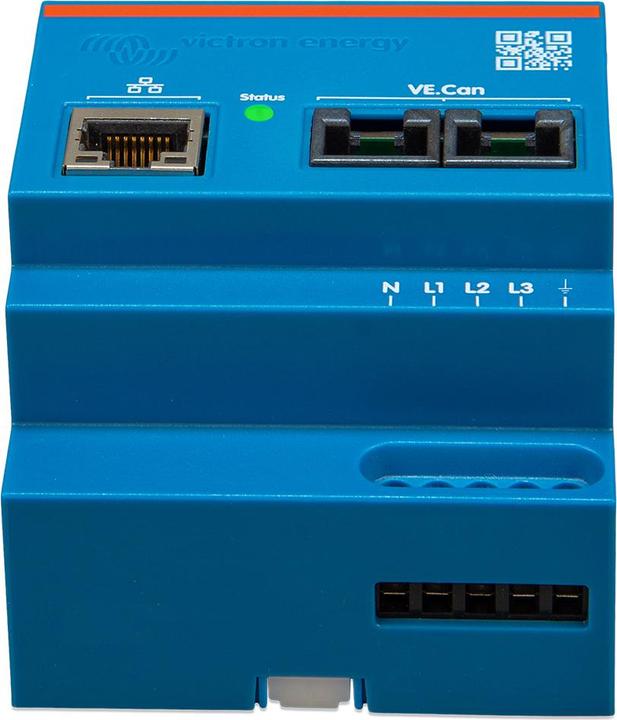

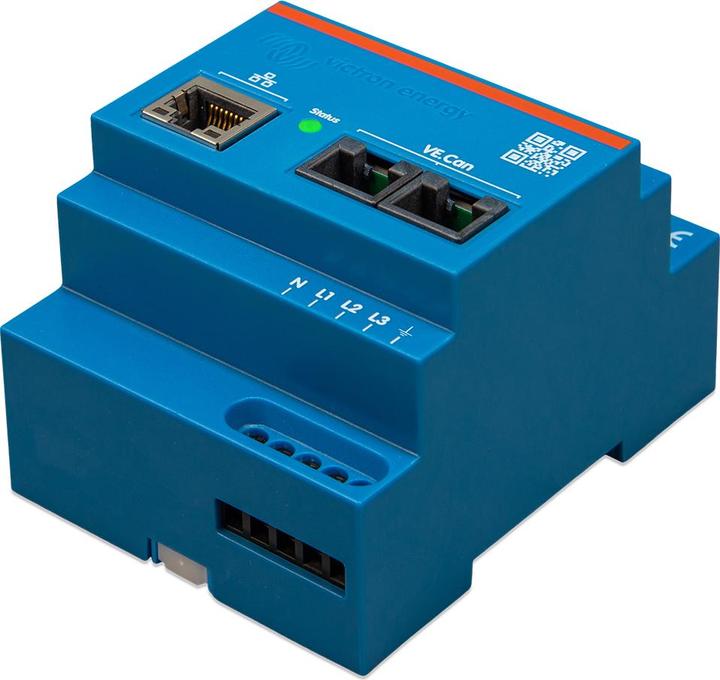

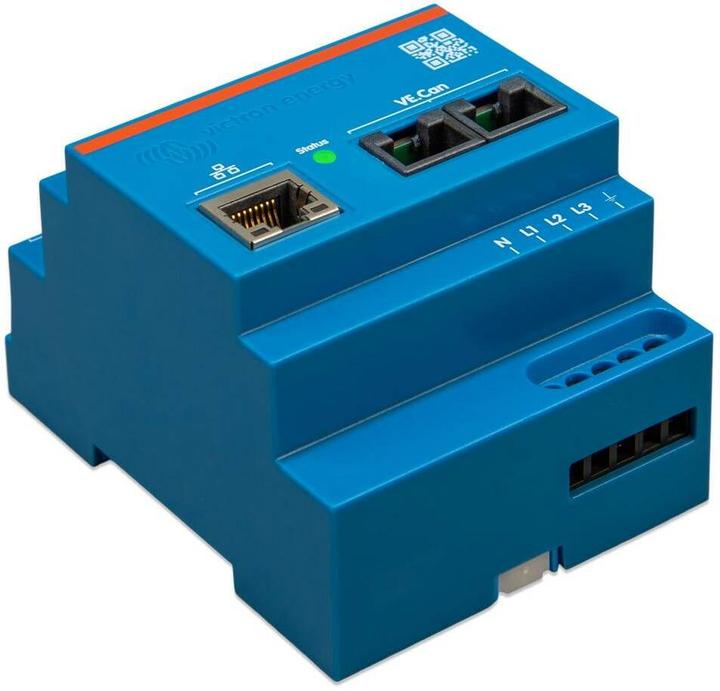

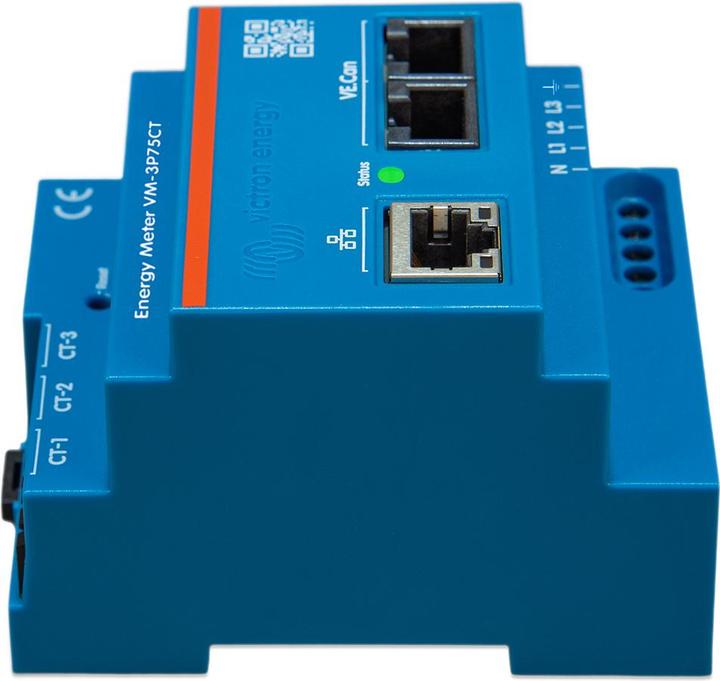

Energy Meter VM-3P75CT

Three-phase energy meter with Ethernet and VE.Can communication connections. The Victron VM-3P75CT Energy Meter is a standard device for measuring the power and energy of single-phase and three-phase applications, for example at the distribution board or for measuring the output of a PV inverter, an alternator, or the performance of an inverter and inverter/charger.

High baud rate. The Energy Meter calculates the RMS power values for each phase and transmits them at a high rate via VE.Can or Ethernet, enabling more accurate measurements for energy consumption, grid import, and grid feed-in, for example in an ESS system.

Setting up the VM-3P75CT is a breeze. The Energy Meter is designed for easy integration and works immediately as a grid meter in most systems (plug-and-play). Configuration (via VictronConnect) is only required for changing the function (grid meter, PV inverter, AC generator, or AC load meter) and for manual IP configuration instead of the default DHCP.

Remote monitoring from anywhere. Its data is displayed in the VictronConnect app, on a GX device such as the Cerbo GX or Ekrano GX, as well as on our VRM portal.

Effortless installation with plug-in current transformers. The VM-3P75CT uses current transformers in the form of clamps to accurately measure current without the need to alter the wiring of an existing installation.

Vector registration method. The VM-3P75CT employs the vector registration method (the vectors of the individual phases L1, L2, and L3 are summed).
