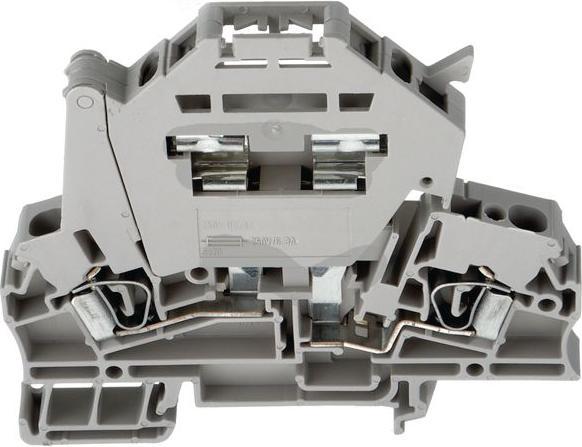

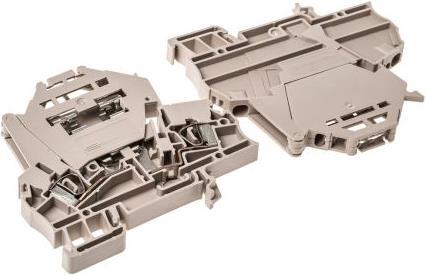

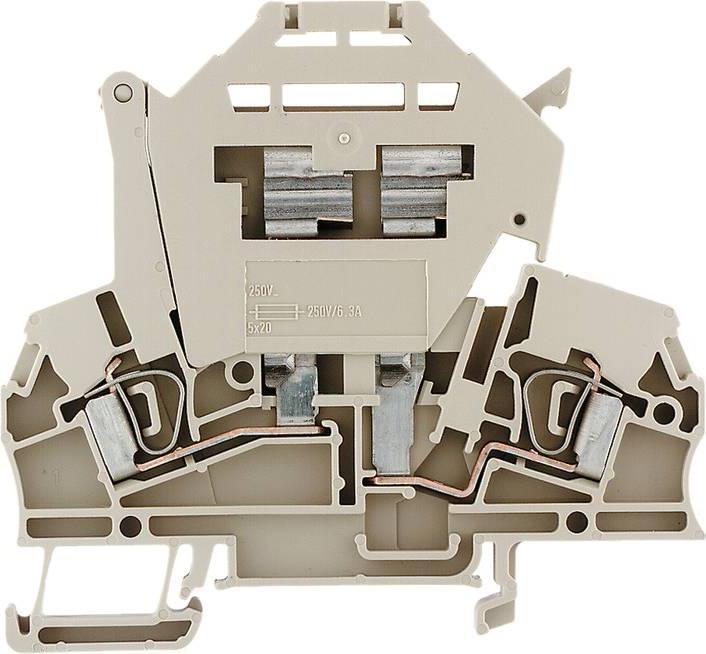

Weidmüller ZSI2.5 DIN rail fuse terminal,5x20mm

Cylinder fuse, 6.30 A
Price in EUR including VAT
was EUR13,15
Ratings
BrandMore from Weidmüller
Delivered between Sat, 12-7 and Thu, 17-7
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

Number of levels: Single
Wire size: 26 to 12 AWG
Color: Beige
Grid: 12 mm
Fuse size: 5 x 20 mm
Rated current: 6.3 A
Operating voltage: 500 V
Connection type: Terminal
Profile rails compatibility: TS35
Series: ZSI
Operating temperature max.: +120°C
Operating temperature min.: -50°C

CSA, UL, SEV, KEMA 00 ATEX 2107U, NEMKO, Lloyds register of shipping, SETI. The 1/4 x 1/4" terminal has no ATEX approval. Fuse terminals for standard fuses 20 x 5 mm (max. 6.3 A) and 1/4 x 1 1/4" (max. 10 A). These clamps have a rotating top so that the fuses can be insulated and then removed or tested in place. Ground protection requires an end cover for the lower half of the terminal, and protection of the upper fuse holder requires a fuse plate that opens for easy access.

Key specifications

Item number
10406959

General information

Manufacturer
Weidmüller
Category
Fuses
Manufacturer no.
1616400000
Release date
5-2-2019
External links
Manufacturer's site (de)

Colour

Colour
Beige
Exact colour description
Beige

Material

Material group
Plastic
Material
Thermoplastic resin

Backup Features

Fuse type
Cylinder fuse
Nominal current
6.30 A
breaking capacity
6.30 A
Nominal voltage
500 V
voltage type
AC/DC

Origin

Country of origin
Czech Republic

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
50 pcs.

Product dimensions

Width
7.90 mm
Length
73 mm
Height
79.50 mm
