Best selling Actuators from Gira
On this page you’ll find a ranking of the best Actuators from Gira. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Gira X1 Server
The Gira X1 Server is a versatile visualization server specifically designed for mobile devices with iOS and Android. It combines the functions of a logic module in a compact device and allows control of up to 250 functions via a user-friendly app. The visualization features include dimmers, switches, blinds, shutters, heating control, and much more. The app offers an intuitive interface that can be customized and enables simultaneous access from up to 10 mobile devices. Additionally, the X1 Server provides an extensive library of 35 logic blocks, allowing for flexible programming and automation of processes. With support for smart home protocols like KNX and compatibility with Google Assistant and Amazon Alexa, the Gira X1 Server is an ideal solution for modern smart home applications.
- Visualization server for mobile devices with iOS and Android
- Control of up to 250 functions via the app
- Intuitive, customizable user interface for easy operation
- Extensive library of 35 logic blocks
- Simultaneous access from up to 10 mobile devices.

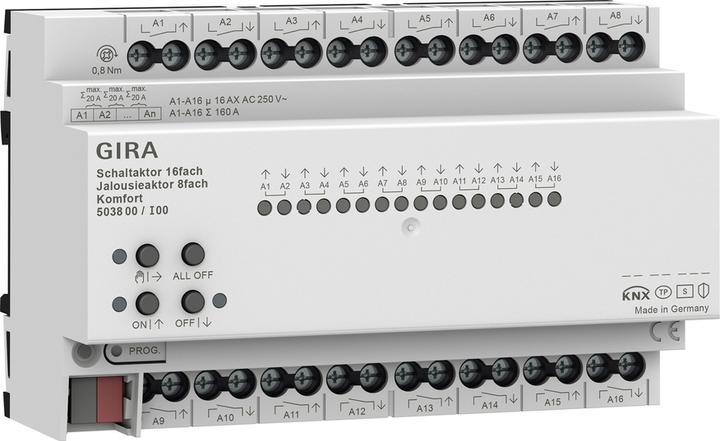

2. Gira 503800 16f/8f 16 A REG Kmf KNX Secure switching/shutter actuator
The Gira 503800 switch/jalousie actuator is a versatile device that can function both as a switch actuator with 16 outputs and as a jalousie actuator with 8 outputs. This product is designed for integration into KNX systems and provides a convenient solution for controlling electric blinds, roller shutters, and other motorized applications. The parameterization allows for flexible use, enabling the outputs to be configured as switch or jalousie outputs as needed. With the option to use mixed forms, users can combine different functions within a single actuator. The actuator is equipped with up to 8 independent logic functions, allowing for simple to complex logical operations. Additionally, it offers manual control of the outputs, which operates independently of the KNX system, and features intelligent LED status indicators that contribute to energy savings. The simple mounting on a DIN rail and the power supply via the KNX bus make installation straightforward.
- Parameterizable operating modes for switch and jalousie operation
- Mixed operation with combinable outputs possible
- Up to 8 independent logic functions for complex controls
- Actively sending feedback after bus voltage recovery
- Easy installation with simplified terminal connection.
Actuator
EUR437,98
Gira 503800 16f/8f 16 A REG Kmf KNX Secure switching/shutter actuator
Shutter actuator
3. Gira Jal.actuator 4f DC 24 V manual KNX REG 215400
The Gira Jal.aktor 4f DC 24 V Hand KNX REG 215400 is a versatile heating actuator specifically designed for controlling blinds in a KNX system. With an operating voltage of 24 volts DC, this device is ideal for low voltage applications. The actuator allows for independent control of up to four blind outputs, enabling flexible and individual management of lighting conditions in a room. Installation is straightforward on a DIN rail, making it easy to integrate into existing systems. The Jal.aktor is designed for indoor use and has an IP20 protection rating, which protects it from dust and touch. The package includes connection and junction terminals for KNX integration, ensuring a quick and uncomplicated setup in your smart home system.
- Independent control of four blind outputs
- Easy installation on DIN rail
- Includes connection and junction terminals for KNX
- Suitable for low voltage DC 12 to 48 V.

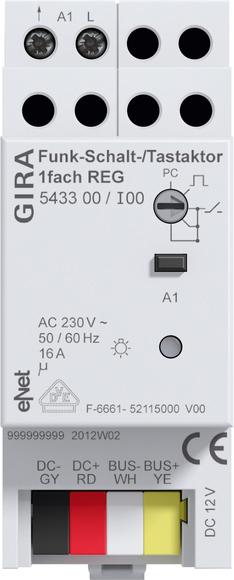

4. Gira Wireless switching/push-button actuator 1f REG eNet 543300
The Gira Wireless Switch/Push Button Actuator 1f REG eNet 543300 is a versatile device designed for controlling lighting systems in modern applications. It enables wireless communication via an eNet radio receiver module or an eNet server, allowing for flexible and user-friendly control of light sources. The actuator can operate as either a switch actuator or a push button actuator, making it adaptable to various requirements. With features such as status feedback, scene operation, and a variety of adjustable parameters like flashing function and delay time, it offers high adaptability. Installation is done on a DIN rail, which facilitates integration into existing systems. The wireless switch/push button actuator is suitable for indoor use and provides a maximum switching capacity of 2300 watts, making it ideal for a wide range of applications.
- Operating modes: switch actuator or push button actuator
- Status feedback to eNet radio transmitter
- Adjustable functions such as flashing function and delay time
- Maximum switching capacity of 2300 watts
- Mounting on DIN rail for easy installation.

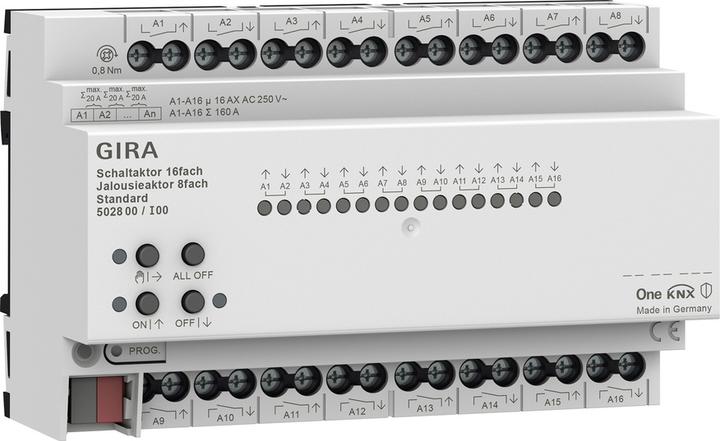

5. Gira 502800
The Gira Switching and Blind Actuator 502800 is a versatile device that can be used both as a switching actuator and as a blind actuator. With a capacity of 16 outputs and a maximum load of 16 amperes, this actuator provides a flexible solution for controlling electrical devices and blinds in a KNX system. The parameterization allows for individual configuration of the outputs, enabling mixed modes of switching and blind operation. This means that adjacent relay outputs can be combined into a blind output, allowing for efficient use of the available outputs. The actuator is designed for mounting on a DIN rail and does not require an additional power supply, as it operates directly via the KNX bus. With intelligent LED status indicators and the option for manual control of the outputs, the Gira 502800 offers a user-friendly solution for modern smart home applications.
- Parameterizable operating modes for switching and blind operation
- Mixed operation of switching and blind functions possible
- Actively sending feedback and status indicators
- Energy savings through intelligent LED displays
- Simplified terminal connection without terminal overlap.

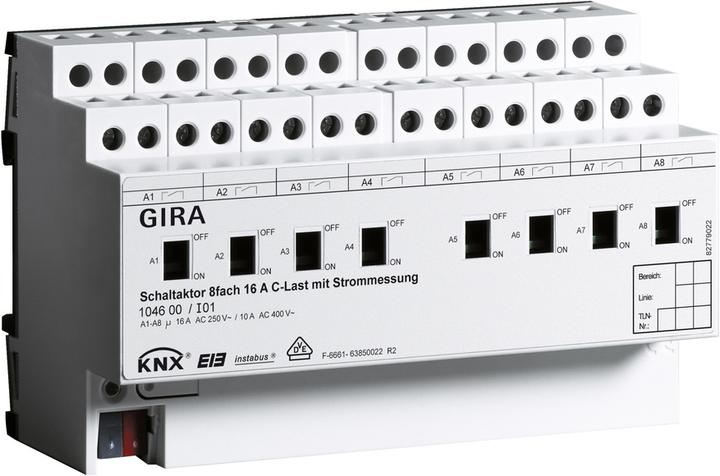

6. Gira Switching actuator
KNX Switch Actuator 8-fold 16 A with manual operation and current measurement for C-loads. REG plus REG switch actuators with integrated bus coupling. Designed for switching independently controllable load groups. Features a manual switch for toggling the relay (On/Off) in parallel or without KNX operation. Multi-phase connection. No additional power supply required.
Features: Manual operation of the relays independent of the bus or switching position display. Normally open or normally closed operation. Central switching function. Collective feedback to reduce bus load. Active or passive (object readable) cyclic feedback function. Feedback can be delayed after bus voltage recovery. Logical linking function for each output. Locking function for each channel can be parameterized. Alternatively, forced positioning function for each output. Time functions (on/off delay, stair light function - also with pre-warning function). Inclusion in light scenes is possible, with a maximum of eight internal scenes per channel being parameterizable. Memory function for light scenes. Operating hour counter as a forward and backward counter with limit value function (limit value adjustable via bus) can be activated for each output. Input monitoring for cyclic updates with safety position. Reactions to bus voltage failure and recovery, as well as after an ETS programming process, can be set for each channel.
The switching contacts of the 8-fold C-load switch actuator are specifically designed for loads with capacitive characteristics, which can cause temporarily high inrush currents. The switch actuator features integrated current detection. Current measurement can be performed for each channel. Current detection: Measurement of load current for each channel. Threshold values for load monitoring (e.g., load failure notification). Independent switching of the eight outputs.
Notes: Mounting on DIN rail. VDE approval according to EN 60669-1, EN 60669-2-1.

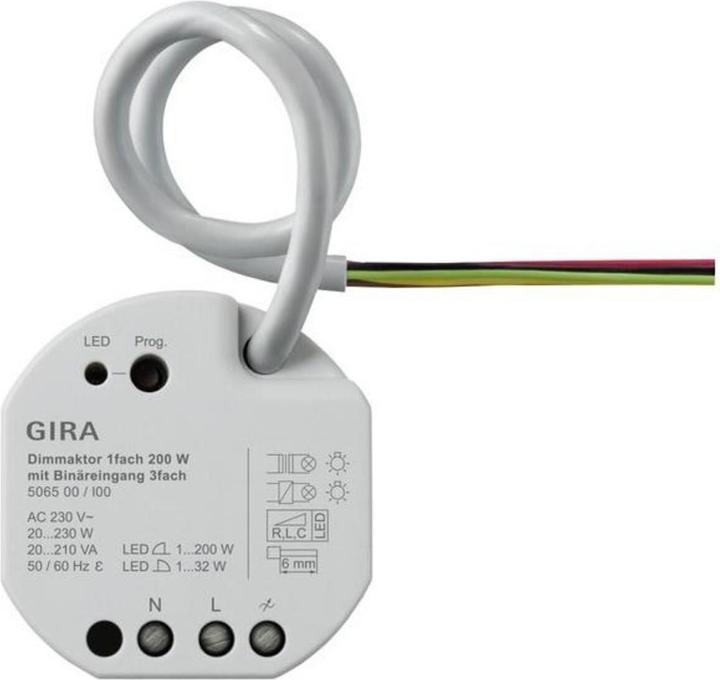

7. Gira 506500 Dimming actuator 1f 200W UP KNX
The Gira Dimmaktor 506500 is a versatile device designed for controlling and dimming various light sources. With a maximum switching capacity of 200 watts, this dimmer is suitable for incandescent lamps, high-voltage halogen lamps, dimmable high-voltage LED lamps, as well as dimmable compact fluorescent lamps. It offers the option to choose between different dimming principles to ensure optimal adaptation to the respective load. The dimmer is equipped with a binary input, allowing for easy integration into KNX systems. Additionally, it provides extensive functions for adjusting the dimming curve and controlling the dimmable range. Safety is ensured through protection mechanisms such as no-load, short-circuit, and over-temperature protection. With up to eight independent logic functions, both simple and complex logical operations can be realized, making the dimmer a flexible solution for modern lighting control systems.
- Automatic or manual selection of the dimming principle for different load types
- Adjustable dimming curve to match the connected load
- Central control function for up to 6 switching and dimming objects
- No-load, short-circuit, and over-temperature protection
- Up to 8 independent logic functions for complex controls.
8. Gira Radio
The Gira wireless switch and blind actuator is a versatile device designed for controlling lighting and electrically operated coverings. With the ability to function both as a switch actuator and a blind actuator, this product offers a flexible solution for modern smart home applications. It receives signals via an eNet wireless receiver module or an eNet server, allowing control of up to eight outputs that can be configured in various operating modes. Users can customize the operating modes to either switch lighting or control blinds and shutters. Additionally, the actuator provides status feedback to eNet wireless transmitters and enables the programming of scenes for automated control. The ability to save different positions for sun protection and twilight makes it a practical choice for energy-efficient living.
- Operating modes: adjustable switch actuator, push-button actuator, blind actuator, and shutter actuator
- Scene operation for automated control of blinds and lighting
- Saveable positions for sun protection and twilight
- Maximum switching power of 2300 watts
- Easy installation on a DIN rail.
9. Gira S1 KNX REG 208900
The Gira S1 KNX REG 208900 is an advanced automation solution specifically designed for integration into smart home systems. This device enables secure remote access to various applications and systems via the Gira Smart Home App and the Gira HomeServer App. Users can efficiently manage and program their KNX projects while benefiting from high data security. The use of SSL TLS encryption ensures that all data transmissions are protected. Additionally, the S1 KNX REG offers the capability to record KNX telegrams on a microSD card and send notifications via email, significantly simplifying the monitoring and management of smart home applications. With its compact design and mounting on a DIN rail, this product is ideally suited for indoor use and can be seamlessly integrated into existing systems.
- Secure remote access via Gira Smart Home and HomeServer Apps
- Support for secure remote maintenance and programming of KNX projects
- Data transmission with SSL TLS encryption for high security
- Recording of KNX telegrams on microSD card
- Email notifications with optional attachments.
10. Gira Jal.actuator 2f AC 230 V manual KNX REG 215200
The Gira Jal.aktor 2f AC 230 V Hand KNX REG 215200 is a highly advanced shutter actuator specifically designed for controlling shutters in a KNX/EIB system. With an operating voltage of 230 V, this actuator allows for independent control of two shutter outputs, ensuring flexible and efficient use in various applications. The automatic fabric travel time detection ensures that the actuator works optimally with drives that have mechanical limit switches, simplifying installation and operation. The actuator is suitable for mounting on a DIN rail and comes with a connection and branching terminal for KNX, making integration into existing systems easier. Made in Germany, the Gira Jal.aktor offers a reliable solution for modern smart home applications without the need for an additional smart home hub.
- Independent control of two shutter outputs
- Automatic fabric travel time detection for drives with mechanical limit switches
- Easy mounting on DIN rail
- Includes connection and branching terminal for KNX in the delivery package.
