Best Victron Energy products in the Charge controller category
On this page you'll find a ranking of the best Victron Energy products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Victron Energy SmartSolar 100/30 MPPT
The Victron SmartSolar 100/30 MPPT Solar Charge Controller for 12V/24V batteries is suitable for solar panels with a total output of up to 440 W (at 12V) or 880 W (at 24V). The charge controller can be easily configured and monitored via Bluetooth using an app. The ultra-fast Maximum Power Point Tracking (MPPT) significantly improves the yield from the solar cells, especially in overcast conditions. The built-in BatteryLife algorithm ensures optimal battery charging, even when the battery cannot be fully charged during a charging cycle, for example, due to shading or darkness preventing the solar panel from generating power.
2. Victron Energy Charge controller SmartSolar MPPT 100/20
A solar charger is powered by solar modules and stores energy in batteries. Using advanced technology, the BlueSolar charge controller maximizes energy harvesting and intelligently directs it to fully charge the batteries in the shortest time possible. The device maintains the battery's functionality, thereby extending its lifespan. By continuously monitoring the voltage and current output of your solar modules, the BlueSolar MPPT technology ensures that all available energy is extracted from the modules and stored. The advantage is particularly noticeable when the sky is partially cloudy and light intensity is constantly changing. You can remotely control and monitor the extensive features of your BlueSolar MPPT charger and pair it with your smartphone or another device via VictronConnect. If your system is connected to the Victron Remote Management Internet portal, you have full access to your MPPT anytime and from anywhere. Both services are available free of charge. The intelligent load output prevents damage caused by using depleted batteries. You can configure the voltage at which the BlueSolar charge controller disconnects a load to prevent excessive discharge of your batteries. The device attempts to recharge the battery to 100% every day. If this is not possible due to bad weather, it raises the voltage threshold for disconnection daily until it is successful.
3. Victron Energy BlueSolar MPPT 100/20
The Victron Energy MPPT 100/20 belongs to the family of BlueSolar MPPT charge controllers and offers ultra-fast power tracking, which can increase the yield of your solar system.
MPPT: Ultra-fast Maximum Power Point Tracking. By continuously monitoring the voltage and current output of your solar (PV) modules, MPPT technology ensures that all available energy is extracted from the modules and stored. The benefits are most noticeable when the sky is partially cloudy and the light intensity is constantly changing.
Features:
- Suitable for 12V/24V/48V systems
- Short-circuit protected load output
- Intelligent battery management with Battery Life
- Programmable battery charging algorithm
- Day/night time control and light dimming option
- Intelligent VE.Direct data communication port for connection with additional devices such as Bluetooth Smart Dongle or GX Color Control Panel
- Integrated protection against output short circuit and over-temperature
Remote monitoring and control: You can remotely control and monitor the extensive features of your BlueSolar MPPT charger by attaching a Bluetooth dongle and pairing it with your smartphone or another device via VictronConnect. If your system is connected to the Victron Remote Management Internet portal through a GX device, you will have full access to your data anytime and from anywhere.
4. Victron Energy SmartSolar MPPT
A solar charger is powered by solar modules and stores the energy in batteries. Using the fastest technology, the SmartSolar maximizes this energy collection and directs it intelligently to charge the batteries as quickly as possible. The SmartSolar maintains the battery's functionality, thereby extending its lifespan. The SmartSolar charge controller can even recharge a deeply discharged battery. It can operate with a battery voltage as low as 0 volts, provided the cells are not permanently sulfated or otherwise damaged.
5. Victron Energy BlueSolar
The load output disconnects the loads when the battery has been discharged to a specified voltage level. Alternatively, an algorithm for intelligent battery management can be selected. The load output is short-circuit proof. Some loads, especially inverters, are best connected directly to the battery. The inverter remote control is best connected to the load output. In some cases, a special interface cable may be required.
The BatteryLife algorithm monitors the battery's state of charge. If necessary, it raises the threshold for disconnecting the load day by day until the energy gained is sufficient to charge the battery to nearly 100%. From this point, the threshold for turning off the load is modulated so that charging to nearly 100% is achieved approximately once a week. Options for displaying data in real-time are available for Apple and Android smartphones, tablets, and other devices.
6. Victron Energy BlueSolar MPPT 100/50
MPPT controller with an efficiency of over 98%. Fast MPPT controller for maximum energy yield. Fully programmable charging algorithm. Protection against overheating and short circuits. The algorithm maximizes energy output. Rated PV power, 12 V: 700 W. Rated PV power, 24 V: 1400 W. Especially in overcast conditions, when light intensity is constantly changing, an extremely fast MPPT controller can improve energy yield by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. In the case of partial shading, there may be two or more maximum power points (MPP) on the current-voltage curve. Conventional MPPTs tend to lock onto a local MPP, which may not be the optimal MPP. The innovative algorithm of the BlueSolar device maximizes energy yield by locking onto the optimal MPP. Fully programmable charging algorithm as well as eight pre-programmed algorithms that can be selected via a rotary knob. Overheating protection and load reduction at high temperatures. Protection against PV short circuits and PV reverse polarity. PV backflow protection.

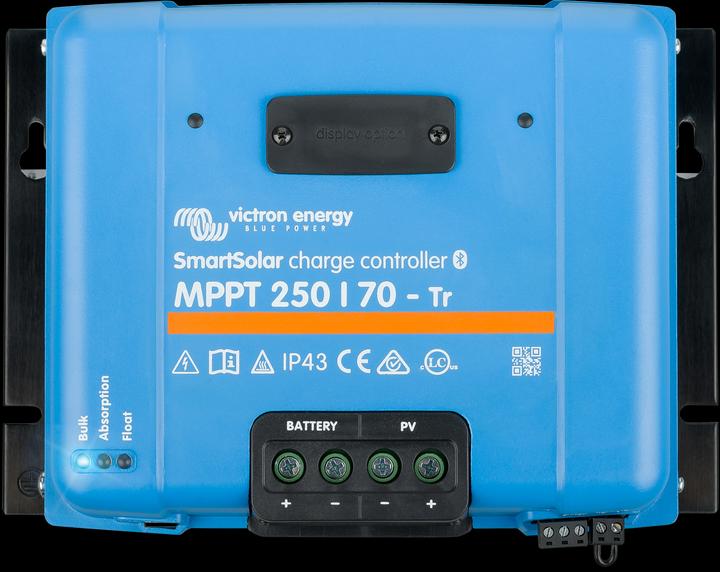

7. Victron Energy SmartSolar MPPT 250/70-Tr
The SmartSolar MPPT 250/70-Tr from Victron Energy is a highly advanced charge controller designed for the efficient use of solar energy. With a maximum PV input voltage of 250V DC and a rated current of 70A, this controller is capable of supporting a variety of battery systems with 12, 24, 36, or 48 volts. The innovative technology of the device enables ultra-fast power tracking and automatic detection of the optimal operating point, even in partial shading conditions. This ensures maximum energy yield and increases the efficiency of the entire system. Additionally, the controller is equipped with an integrated Bluetooth module that allows for easy analysis and configuration via mobile devices. The SmartSolar MPPT 250/70-Tr sets new standards in the industry by achieving an efficiency of up to 99%, making it one of the best options on the market.
- Maximum PV power: 1000 W (12 V), 2000 W (24 V), 4000 W (48 V)
- Integrated Bluetooth module for easy configuration and monitoring
- Ultra-fast power tracking and automatic power point detection
- High efficiency of up to 99%
- Supports parallel operation with other controllers of the same type.
8. Victron Energy BlueSolar PWM-Light 12V 24V 5A Solar Charge Controller
The PWM-Light 12V 24V 5A from Victron Energy is an affordable PWM charge controller specifically designed for lighting control. It offers a variety of configuration options to turn the DC load on or off at the controller. In addition to lighting, other devices such as ventilation or similar can also be controlled cost-effectively with this controller. Please refer to the user manual for detailed configuration options.
9. Victron Energy SmartSolar MPPT 75/10
Ultra-fast Maximum Power Point Tracking (MPPT). Detection of the Maximum Power Point even in partial shading. Load output. Flexible charging algorithms. Overheating protection and load reduction at high temperatures. Automatic battery voltage detection and intelligent battery management through load shedding. A solar charger is powered by solar modules and stores this energy in batteries. Using progressive technology, the BlueSolar charge controller maximizes this energy harvesting and directs it intelligently to fully charge the batteries in the shortest time possible. The device maintains the functionality of the battery, thereby extending its lifespan. By continuously monitoring the voltage and current output of your solar modules, the BlueSolar MPPT technology ensures that all available energy is extracted from the modules and stored. The benefits are most noticeable when the sky is partially cloudy and light intensity is constantly changing. You can control and monitor the extensive features of your BlueSolar MPPT charger remotely: Bluetooth Smart enables setup and monitoring with a smartphone or other Bluetooth-enabled device. When your system is connected to the Victron Remote Management Internet portal, you have full access to your MPPT anytime and from anywhere. Both services are available free of charge.
10. Victron Energy BlueSolar MPPT 100/30
The Victron MPPT 100/30 is part of the large family of BlueSolar MPPT charge controllers and, like its larger siblings, offers ultra-fast power tracking, which can increase the yield of your solar system. In addition to greater charging and PV capacity, this model differs even more from the lower models. The 100/30 controller has the ability to fully program and store various charging algorithms. The custom algorithms can then be selected directly via a switch knob on the housing. The load output directly on the controller is no longer available from this model onward.
Compared to the smaller models in the BlueSolar MPPT series, the 100/30 features overheating protection with a shutdown function and automatic restart once normal operating temperature is reached. The latest generation high-speed MPP tracker significantly improves energy yield, especially in overcast conditions where light intensity is constantly changing, by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. Additionally, the 100/30 includes several other innovative technologies, such as the VE.Direct communication port.
