Best selling Power generator accessories from Fischer

On this page you’ll find a ranking of the best Power generator accessories from Fischer. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

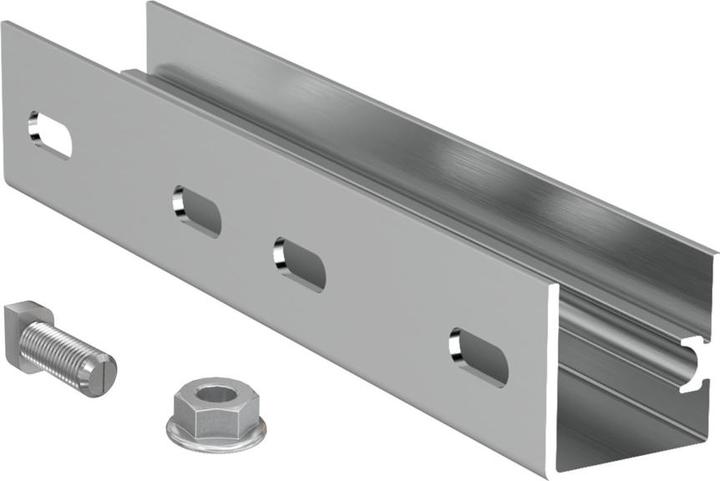

1. Fischer Profile connector SolarFish H44 AL

The SolarFish H44 AL connector from Fischer is a practical solution for connecting two SolarFish H44 solar rails. This accessory features a thoughtful design that allows for easy and quick assembly. The rails can be effortlessly inserted into the connector, with a special groove on the outer side and a dovetail joint ensuring precise positioning. The connector is ideal for the efficient installation of solar systems and contributes to the stability and durability of the entire structure. Weighing 240 grams and measuring 250 millimeters in length, the connector is lightweight and easy to handle, facilitating the installation process. It is offered in convenient sales units of 10 pieces, ensuring an adequate quantity for various projects.

- Easy assembly thanks to thoughtful design
- Precise positioning due to dovetail joint
- Lightweight and handy for easy handling.

2. Fischer Dachhaken Kalzipdach DLA K A2

DLAK is the stainless steel AISI 304 hook for securing structures for photovoltaic systems on Kalzip standing seam metal roofs. Screws for connecting to the rail must be ordered separately. The following accessories are recommended: Hexagon screw: SKS M8x20 A2, flange nut: MU F M8 A2.

3. Fischer Profil SolarMetal P H50 400 AL

SolarMetal P AL sheet metal roof is a profile made of aluminum alloy designed for mounting photovoltaic systems on flat or sloped roofs with trapezoidal sheets. The profile is optimized for attachment perpendicular to the sheet ribs and allows for the installation of photovoltaic panels in portrait orientation (long side along the high rib of the trapezoidal sheet). The use of ALG rivets makes the installation quick and easy. The photovoltaic module can be quickly mounted using both the universal clamps PM U / PM C U and the pre-assembled clamps PM F / PM C.

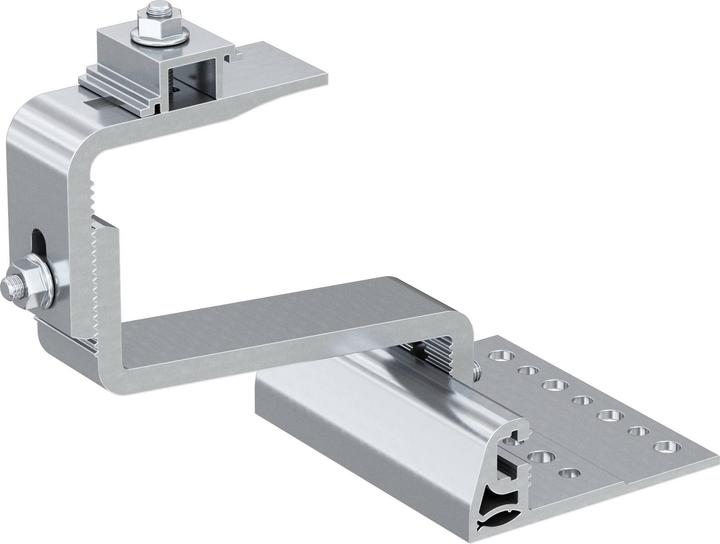

4. Fischer Dachhaken RH 40-52 HB AL

The aluminum hook RH HB AL is suitable for the installation of photovoltaic systems on pitched roofs with roof tiles of varying thicknesses. The horizontal adjustment on the base plate allows the roof hook to be precisely adapted to the roof tiles. The lower adjustment position enables the roof hook to be adjusted to different tile thicknesses. The upper adjustment position allows for the adjustment of the distance of the rail from the top of the roof tile. The shape of the hook is designed to withstand the legally required snow and wind loads without damaging the tile.

5. Fischer Mittelklemme vorm. PM C 38-44 AL sw

PM C is the pre-assembled mid clamp for PV modules with aluminum frames. The PM C clamp is available in various versions, depending on the thickness of the PV panel. The clamp features a hammer nut with a special plastic cage to facilitate the positioning of the nut in the central groove of the rail. The spring keeps the clamp elevated until it is tightened, making it easier to position the PV panel.

6. Fischer Dachhaken RH 40-52 VB AL

The aluminum hook RH AL is suitable for the installation of photovoltaic systems on pitched roofs with tiles of varying thickness. The horizontal adjustment on the base plate allows the roof hook to be precisely adapted to the roof tiles. The lower adjustment position enables the roof hook to be adjusted to different tile thicknesses. The upper adjustment position allows for the setting of the distance of the rail from the top of the roof tile. The shape of the hook is designed to withstand the legally required snow and wind loads without damaging the tile.

7. Fischer 518952 Solar Fix screws and C-clamps

Angle bracket for the connection between solar rails and STSI and STSR double-threaded screws or to connect two overlapping solar rails crossed at 90°. Version with long slotted hole.

Advantages
- Quick installation through the bottom hole and easy adjustment through the slotted side hole.
- The connections with the rail are provided with anti-slip knurling for secure fixing.

MW SU and MW SA are the angle brackets in A2 stainless steel for the connection of the double-threaded screws with the solar rails or to connect two overlapping solar rails crossed at 90°. The slotted hole on the vertical section enables the height adjustment of the solar rail. Available in two versions, short or long, to adapt to different height requirements.

Properties
- X5CrNi 18-10 stainless steel hook in accordance with EN 10088-2:2005.

Functionality
Connection with STRS or STSI double-threaded screws:
- Insert the MW connecting bracket between the two nuts of the STSR/STSI double-threaded screw and tighten them.
- Connect the solar rail to the MW bracket through the slotted hole using SKS M 8 screw and MU FM 8 flanged nut.
- Use the pair of STSR/STSI double-threaded screw nuts to adjust the position of the MW connecting bracket.
Crossing of two solar rails:
- Connect the MW bracket to the lower solar rail using the FCN AL hammer head nut and SKS M 8 screw.
- Fix the upper solar rail to the bracket through the slotted hole using SKS M 8 screws and MU FM 8 flanged nut.

8. Fischer Winkelhalter MW AUF A2

The MW Angle A2 is made of stainless steel A2 and is designed to connect threaded rods with solar rails or to connect two overlapping solar rails that cross at a 90° angle. The elongated hole in the vertical part allows for height adjustment of the solar rail.

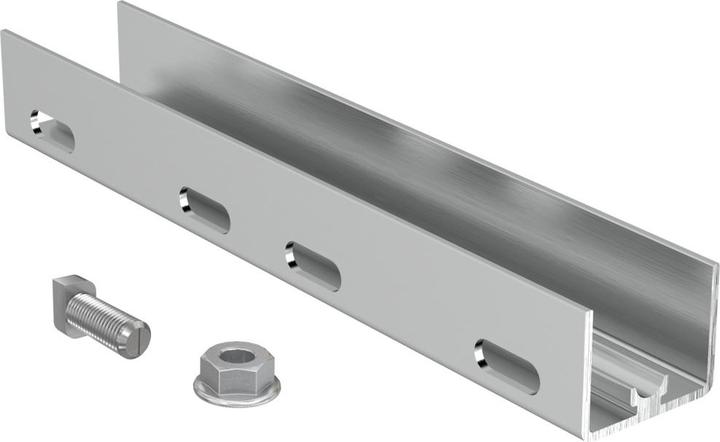

9. Fischer Profile connector SolarFish H33 AL

The SolarFish H33 AL connector is compatible with the SolarFish H33 AL rail. It allows for the connection of two solar rails. Thanks to its design, the two rails can be easily inserted into the connector. With the groove in the middle of the outer side and the dovetail connection, they can be quickly and easily positioned.

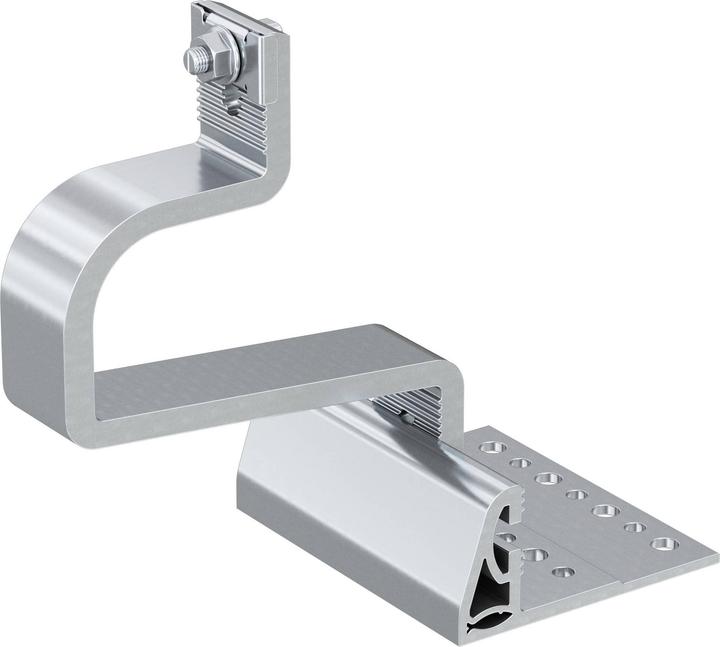

10. Fischer Dachhaken RH 52-67 VB AL

The aluminum hook RH AL is suitable for the installation of photovoltaic systems on pitched roofs with tiles of varying thickness. The horizontal adjustment on the base plate allows the roof hook to be precisely adapted to the roof tiles. The lower adjustment position enables the adaptation of the roof hook to different tile thicknesses. The upper adjustment position allows for the adjustment of the rail's distance from the top of the roof tile. The shape of the hook is designed to withstand the legally required snow and wind loads without damaging the tile.
