Best Busch-Jaeger products in the Sockets category
On this page you'll find a ranking of the best Busch-Jaeger products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

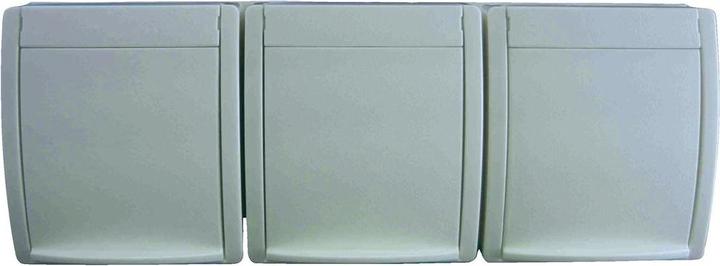

1. Busch-Jaeger Schuko socket
Busch-Jaeger Schuko socket outlet 3f, 2300/3 EW-53
Manufacturer: Busch-Jaeger
Designation: Schuko socket outlet 3f, horizontal
Type: 2300/3 EW-53
Design: Schuko
Protective contact: Yes
Protective conductor contact round: No
Number of active contacts (round): 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 3
Number of modules (for modular design): 1
Number of phases: 1
Imprint/marking: Without
Connection type: Screw terminal
With hinged cover: Yes
With increased touch protection: No
Text field/labeling area: No
Color: Gray/blue-green
RAL number (similar): 7035
Transparent: No
Lockable: No
Ejector mechanism: No
Insulated installation: Yes
With function lighting: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With fine-wire fuse: No
Special power supply: Without special power supply
Mounting type: Surface-mounted
Mounting type: Fastening with screw
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Matt
Antibacterial treatment: No
With on/off switch: No
With loop-through function: Yes
Twisted central insert: No
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Rated residual current: 0 mA
Suitable for protection class (IP): IP44
Impact resistance: IK04
Device width: 222 mm
Device height: 83 mm
Device depth: 55 mm
Min. depth of device box: 0 mm
Cover: Complete housing
For "difficult conditions" (according to VDE): No
Further details: For horizontal mounting. With screw connection. Pre-wired. With hinged covers. 2 P + E. Can be labeled with label holder 1763-53. Switches, pushbuttons, light signals, or Schuko sockets with lock can be used instead of Schuko sockets. EAN: 4011395993293.

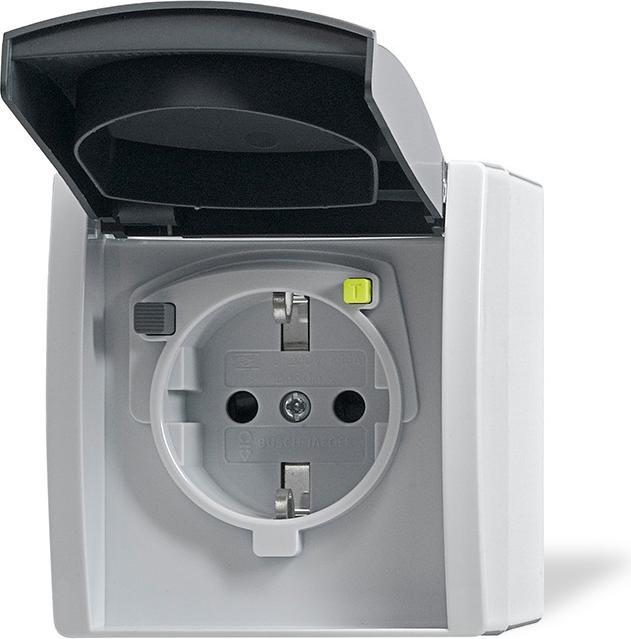

2. Busch-Jaeger Fi-Schukomat
The FI-Schukomat from Busch-Jaeger is an innovative residual current socket that meets the highest safety standards. It features enhanced touch protection and a water-resistant design, making it ideal for use in various indoor environments. The socket is designed according to VDE 0664 and has a 2-pole disconnection (phase, neutral) without PE monitoring. With a rated residual current of 30 mA and a maximum tripping time of 30 ms, the FI-Schukomat ensures reliable protection against electrical faults. The IP 44 protection rating allows the socket to be used under challenging conditions. It is designed for a nominal voltage of 230 V and a nominal current of 16 A, providing high performance. The installation is surface-mounted, which simplifies the setup and allows for flexible use.
- Enhanced touch protection for additional safety
- Water-resistant design according to IP 44
- 2-pole disconnection (phase, neutral)
- Rated residual current of 30 mA for effective protection
- Fast tripping time of a maximum of 30 ms.
3. Busch-Jaeger SCHUKO(R) socket outlet ins.
Safety+ socket with shutter (increased touch protection according to VDE 0620) and integrated steplight. With plug connection. 2-pole (2 P + E). Two LEDs create a well-visible light cone that shines vertically downward from the central disc of the socket. The orientation light can be switched independently of the socket via a separate connection option. Designed for challenging conditions on-site, resistant to aggressive media such as ammonia, gasoline, oils, fats, alcohol, and cleaning agents in common concentrations.

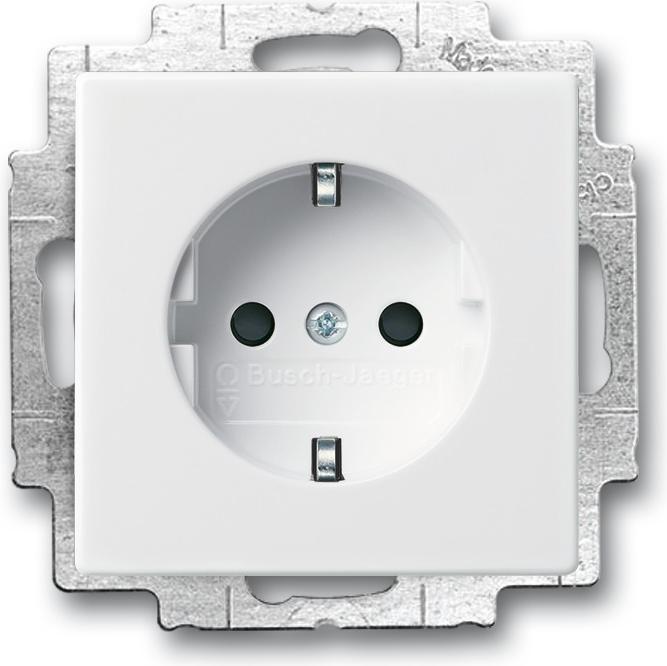

4. Busch-Jaeger Schuko
Busch-Jaeger Schuko socket outlet insert 20 EUCBLI-914
Manufacturer: Busch-Jaeger
Designation: Schuko socket outlet insert
Color: Alpine white
Type: 20 EUCBLI-914
Design: Schuko
Protective contact: Yes
Number of active contacts: 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 1
Number of modules: 1
Number of phases: 1
Connection type: Plug-in terminal
With hinged cover: No
With increased touch protection: Yes
Text field/labeling area: No
RAL number (similar): 9010
Lockable: No
Ejector mechanism: No
Insulated installation: Yes
With function lighting: No
With orientation light: Yes
Overvoltage protection: No
Residual current protection: No
With microfuse: No
Special power supply: Without special power supply
Mounting type: Flush-mounted
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Glossy
Antibacterial treatment: No
With on/off switch: No
With loop-through function: Yes
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Rated residual current: 0 mA
Suitable for protection class (IP): IP20
Impact resistance: IK03
Device width: 71 mm
Device height: 12 mm
Device depth: 32 mm
Min. device box depth: 40 mm
Cover: Central plate
For "difficult conditions" (according to VDE): No
Further details: With increased touch protection, plug connection, 2-pole (2 P + E), separate connection leads for switching contact, and light emitting diode. Schuko socket outlet Safety+ with shutter (increased contact protection according to VDE 0620). EAN: 4011395191231.

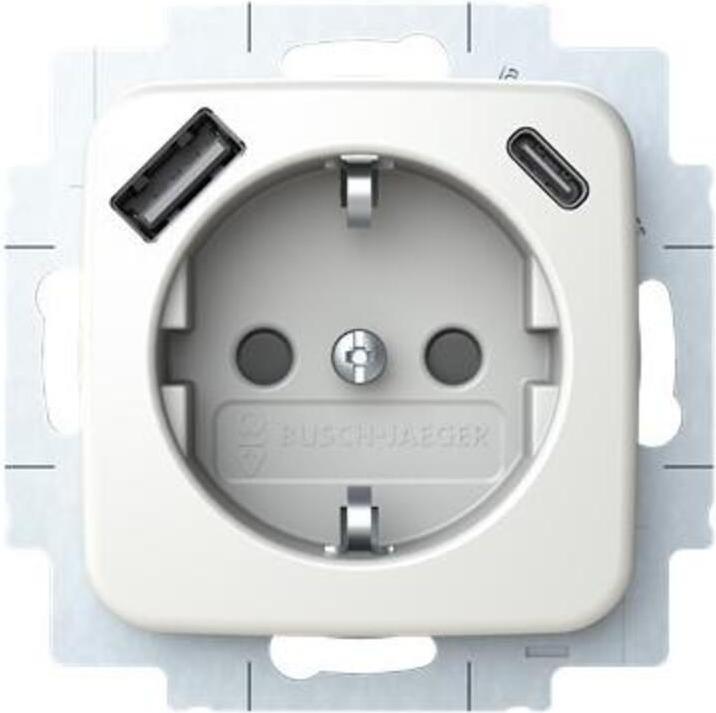

5. Busch-Jaeger 20 EUCB2USBAC-212
The Busch-Jaeger USB charging socket 20 EUCB2USBAC-212 is a versatile solution for modern charging needs. This flush-mounted socket combines the functionality of a traditional Schuko socket with two USB ports, one USB-A and one USB-C. It allows for the simultaneous charging of multiple devices, which is particularly advantageous in homes and offices. The socket is made of durable plastic and offers a rated voltage of 230 V as well as a rated current of 16 A. With a compact design and a installation depth of only 39.5 mm, it is easy to install and fits into most standard boxes. The protection class IP20 makes it ideal for indoor use, while the overload protection provides additional safety. This socket is a practical addition to any room where a reliable power supply is needed.
- Combination of Schuko socket and two USB ports (USB-A and USB-C)
- Easy flush mounting with terminal connection
- Overload protection for additional safety
- Suitable for indoor use with protection class IP20.

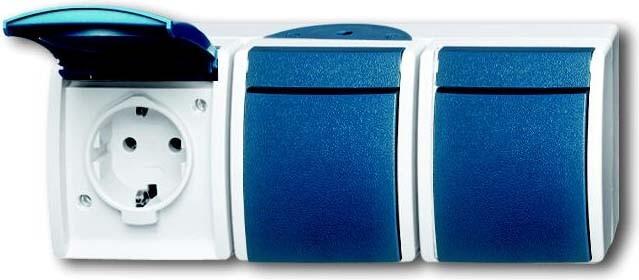

6. Busch-Jaeger SCHUKO triple socket
Busch-Jaeger Schuko triple socket 2300/3 EW-54
Manufacturer: Busch-Jaeger
Designation: Schuko triple socket
Type: 2300/3 EW-54
Design: Schuko
Protective contact: Yes
Protective earth contact round: No
Number of active contacts (round): 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 3
Number of modules (for modular design): 1
Number of phases: 1
Imprint/labeling: Without
Connection type: Plug-in terminal
With hinged cover: Yes
With increased touch protection: No
Text field/inscription area: No
Color: Alpine white
RAL number (similar): 9010
Transparent: No
Lockable: No
Ejector mechanism: No
Insulated installation: Yes
With function light: No
With orientation light: No
Overvoltage protection: No
Residual current protection: No
With fine-wire fuse: No
Special power supply: Without special power supply
Mounting type: Surface-mounted
Mounting type: Fastening with screw
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Matt
Antibacterial treatment: No
With on/off switch: No
With loop-through function: Yes
Twisted central insert: No
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Rated residual current: 0 mA
Suitable for protection class (IP): IP44
Impact resistance: IK04
Device width: 222 mm
Device height: 83 mm
Device depth: 55 mm
Min. depth of device socket: 0 mm
Cover: Complete housing
For "difficult conditions" (according to VDE): No
Further details:
For horizontal mounting. With screw connection. Pre-wired. With hinged covers. 2 P + E. Can be labeled with label holder 1763-53. Suitable labeling software available. Switches, pushbuttons, light signals, or Schuko sockets with lock can be used instead of Schuko sockets.
EAN: 4011395079669.

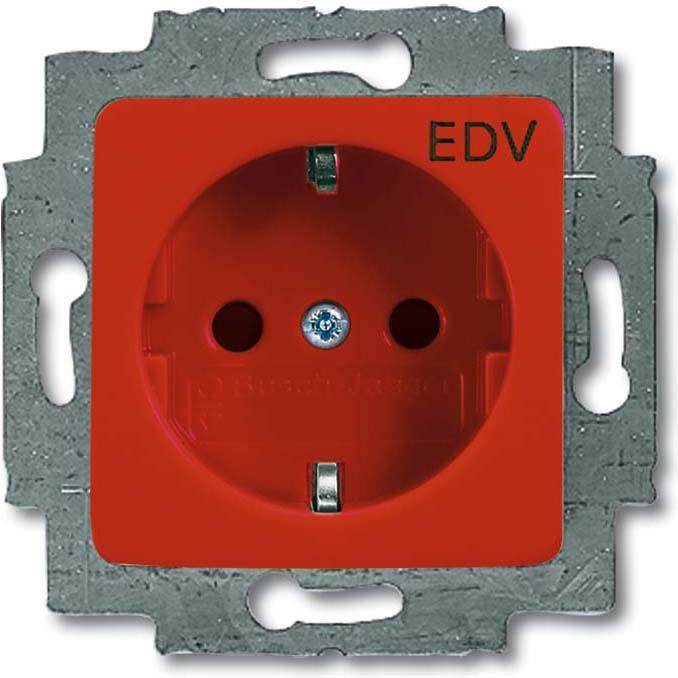

7. Busch-Jaeger SCHUKO® socket outlet insert with imprint 2CKA002011A6254
For connecting electrical consumers. With increased touch protection. With cover 50 x 50 mm. Suitable for cutouts (50 x 50 mm) of the channel covers from the companies Ackermann and Tehalit. Can only be used with intermediate ring 1746-... in SI frame. Reflex SI, Busch-Duro 2000® SI: Reflex SI, Reflex SI Linear, Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear.
8. Busch-Jaeger 20 EUCB2USBAC-214
Busch-Jaeger Schuko/USB socket outlet, USB-A and USB-C. Designed for connecting electrical loads. It features a 2-pole (2 P + E) plug connection. Ideal for charging and supplying mobile devices via USB cable. The USB-A output supports the following charging protocols: Apple MFi with 2.4 A and BC 1.2 DCP with 1.5 A. The USB-C output supports the following charging protocols: USB PD (Power Delivery) with 5 V / 3 A, Apple MFi with 2.4 A, and BC 1.2 DCP with 1.5 A.

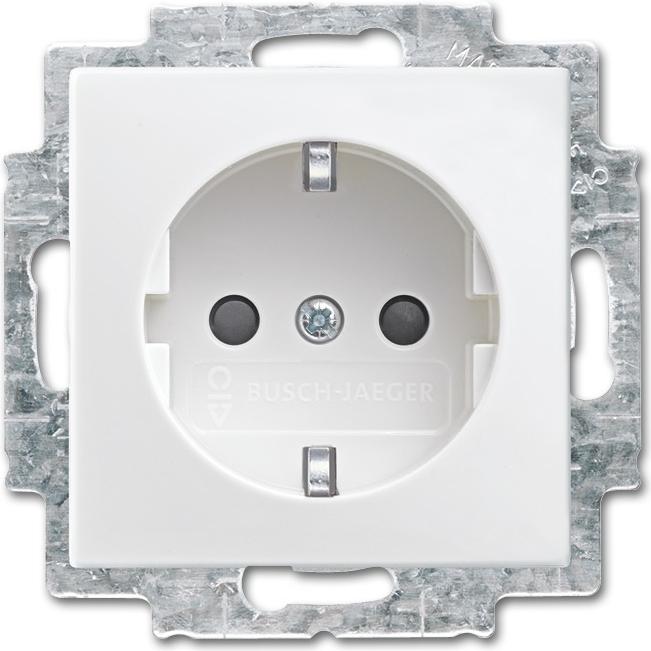

9. Busch-Jaeger SCHUKO std

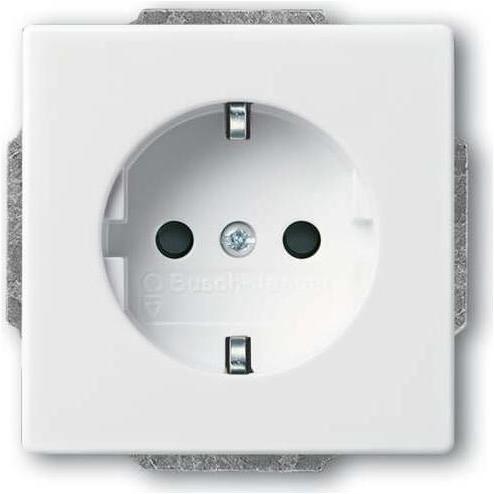

Busch-Jaeger Schuko Standard eBs SrK 23 EUCB-84
Manufacturer: Busch-Jaeger
Designation: Schuko Standard eBs SrK
Type: 23 EUCB-84
Design: CEE 7/3 socket (Type F)
Protective contact: Grounding clips
Number of active contacts (round): 2
With signal lamp: no
Number of units: 1
Number of phases: 1
Printing/marking: none
Connection type: Screw terminal
With flap cover: no
With increased touch protection: yes
Text field/labeling area: no
Color: white
RAL number (similar): 9016
Metallic color: no
Transparent: no
Lockable: no
Ejection mechanism: no
Insulated installation: no
With functional lighting: no
With orientation light: no
Surge protection: no
Residual current protection: no
With fine fuse: no
Special power supply: without special power supply
Mounting type: Flush-mounted
Mounting method: Claw/screw fastening
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface protection: untreated
Surface finish: glossy
Antibacterial treatment: no
With pass-through function: yes
With on/off switch: no
Twisted central insert: no
Rated current: 16 A
Rated voltage: 250 V
Suitable for protection class (IP): IP20
Impact resistance: IK03
Device width: 71 mm
Device height: 71 mm
Device depth: 45 mm
Min. depth of device box: 31 mm
Compatible with Apple HomeKit: no
Compatible with Amazon Alexa: no
Compatible with Google Assistant: no
IFTTT support available: no
For harsh conditions (according to VDE): no
Busch-Jaeger Schuko Standard eBs SrK 23 EUCB-84: additional details
Protective contact socket insert with increased touch protection
With screw terminals. 2-pole (2 P + E) future linear studio white.
EAN: 4011395296905.
10. Busch-Jaeger Schuko socket insert
Busch-Jaeger Schuko socket outlet insert 20 EUGKBN-34-101 Manufacturer: Busch-Jaeger Designation: Schuko socket outlet insert IP44 alpine white Type: 20 EUGKBN-34-101 Design: SCHUKO Protective contact: yes Protective conductor contact round: no Number of active contacts (round): 2 With signal lamp: no With built-in USB power supply: no Number of units: 1 Number of modules (with modular design): 1 Number of phases: 1 Imprint/labeling: without Connection type: plug-in terminal With hinged cover: yes With increased contact protection: yes Text field/labeling area: yes Color: alpine white RAL number (similar): 9010 Transparent: no Lockable: no Ejector mechanism: no Insulated installation: yes With function lighting: no With orientation light: no Overvoltage protection: no Residual current protection: no With fine-wire fuse: no Special power supply: without special power supply Mounting type: flush-mounted Mounting type: claw/screw mounting Material: plastic Material grade: thermoplastic Halogen-free: yes Surface protection: Untreated Surface finish: glossy Antibacterial treatment: no With on/off switch: no With loop-through function: yes Twisted central insert: no Rated current: 16 A Rated voltage: 250 V Frequency: 50 Hz Rated residual current: 0 mA Suitable for Protection class (IP): IP44 Impact resistance: IK04 Device width: 71 mm Device height: 12 mm Device depth: 32 mm Min. Device box depth: 40 mm Cover: central plate For "difficult conditions" (according to VDE): noBusch-Jaeger Schuko socket outlet insert 20 EUGKBN-34-101: further detailsLabeling field 66.7 x 10 mm. With increased touch protection. Supplied with sealing ring. IP 44 only in combination with frame Allwetter 44®. With plug-in connection. 2-pole (2 P + E) Suitable labeling software at www.BUSCH-JAEGER-Beschriftungstool.de. , EAN: 4011395172322.
