Best Telegärtner products in the Sockets category
On this page you'll find a ranking of the best Telegärtner products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

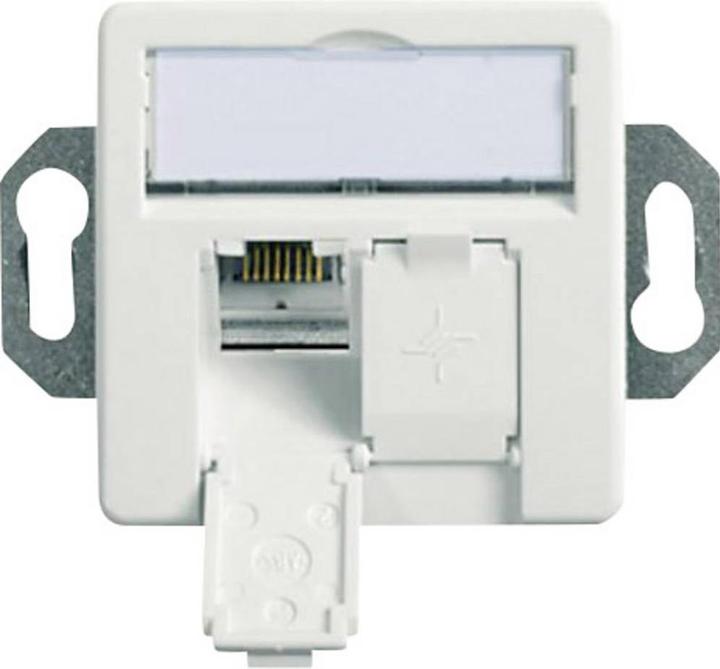

1. Telegärtner TELEGAERTNER UPDose Cat5e 2xRJ45 alpinwhite AMJ45 (25.16.8550)
Suitable for surface mounting and installation in cable ducts or floor tanks. Can be combined with covers from various switch program manufacturers when using an AMJ45 box without a central plate. Up to three boxes can fit into one floor tank device casing. Cable feed from eight possible directions in 45° steps and pluggable earth connection at all four corners. Optional horizontal and vertical installation in the parapet trunking due to variable cable entry. Designed with low installation depth, allowing trouble-free installation in the floor tank due to lateral cable routing inside the device casing. Fully shielded metal housing. Surface mounting requires a surface mounting frame set. Flush mounting requires a single cover frame or a double cover frame. The universal device mounting bracket enables an assembly-friendly and space-saving installation of the junction boxes in a parapet trunking system. Suitable for trunking systems from various manufacturers such as Ackermann, Jung, Rehau, and Tehalit.
2. Telegärtner Module holder AMJ-S 2-fold UP/0 flex designable
Prepared for all situations: The wide range of module sockets from Telegärtner provides the right product for every need. Whether in a skirting duct, on or under plaster, either as an unpopulated variant for individual configuration or already pre-equipped with our high-performance modules. For the populated variants, transmission characteristics according to Cat.6A, in accordance with EN 60603-7-51, are ensured. The socket spacing of the proven AMJ45 connection box and the UAE connection box is guaranteed. This offers users unprecedented design possibilities in managing their daily cabling tasks.
Features: Cat.6A (ISO/IEC) according to IEC 60603-7-51, Cat.6A (ISO/IEC) re-embedded tested according to IEC 60512-27-100, Link certification: Class EA (ISO/IEC) according to ISO/IEC 11801, compliant with 10 Gigabit Ethernet (IEEE 802.3an), contact over-bending protection: 750 mating cycles with RJ45/RJ11/RJ12 connectors, suitable for PoE+ according to IEEE 802.3at, with design-capable module holder AMJ-S Up/0 flex, combinable with covers from various switch program manufacturers, integrated cable catch for cable diameters up to 9 mm, universally available installation dimensions for mounting cutouts 19.3 x 14.7 mm, visually monitored testing of RJ45 contact heights, AMJ-S DD: with integrated protection against contact damage through automatic disconnection of the plug connection.
Notes: for skirting duct and underfloor, appropriate electronic boxes must be provided for flush-mounted installation.
Design: Module carrier including 2 AMJ-S DD modules Cat.6A (ISO/IEC) T568B, combinable with covers from various switch program manufacturers.
Series: AMJ-S
Short designation: design-capable module holder AMJ-S DD 2-fold UP/0 flex.
3. Telegärtner RJ45 junction box IP44 AP lockable
The RJ45 connection box IP44 AP from Telegärtner is a robust and practical solution for network connections in outdoor environments. This connection box is equipped with a lock, providing additional protection and security for the installed modules. It is designed for use with double module slots and allows the installation of AMJ and UMJ modules. The IP44 protection rating ensures that the box is protected against the ingress of water and solid foreign bodies, making it ideal for use in demanding environments. The unpopulated module slot offers flexibility in selecting the modules to be installed. With a compact design and solid construction, this connection box is a reliable choice for professional network installations.
- Lockable construction for additional protection
- Suitable for double module slots, unpopulated
- IP44 protection rating for outdoor use.

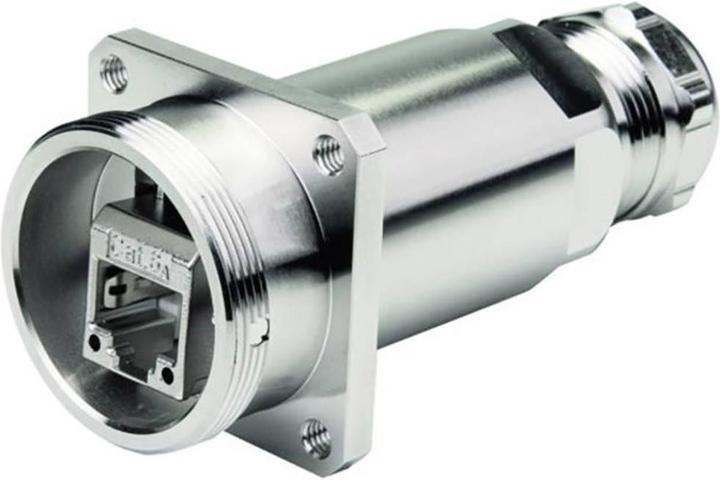

4. Telegärtner Flange socket AMJ-S, IP68 RJ45 F
The AMJ-S flange socket from Telegärtner is a highly developed RJ45 connector specifically designed for use in demanding environments. With an IP68 protection rating, this product offers excellent sealing against dust and water, making it ideal for applications in telecommunications, security solutions, as well as military and industrial sectors. The flange socket is designed for temperatures ranging from -40°C to 85°C, ensuring reliable performance under extreme conditions. Installation is quick and easy with a simple twist motion that allows locking, strain relief, and sealing in one step. The AMJ-S module is compliant with Category 6A and enables flexible cabling without the need for special tools. These features make the flange socket a practical solution for professional cabling applications.
- IP68 protection rating for maximum reliability in harsh environments
- Temperature range from -40°C to 85°C for versatile applications
- Easy installation without special tools thanks to innovative design
- Compatible with Cat.6A (ISO/IEC) for high transmission rates
- Versatile use in telecommunications, security applications, and industry.

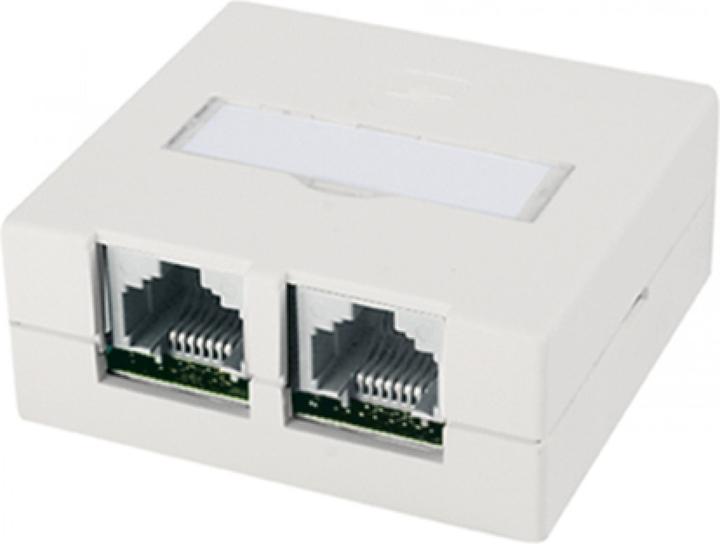

5. Telegärtner Junction box VAD Cat.6 Ea, 2 x RJ45, shielded
The compact connection box VAD 8/8 Ap offers top performance in a very small space. With dimensions of just 57 x 53 x 23.3 mm, it is one of the smallest surface-mounted boxes suitable for 10 Gigabit Ethernet. The LSA-Plus punch-down contacts can be wired according to either T568A or T568B standards. A stable screw terminal ensures reliable cable strain relief and excellent shield contact. The housing is pure white (similar to RAL 9010) and features a labeling field with a foldable, non-removable transparent cover.
Performance features: suitable for 10 Gigabit Ethernet according to IEEE 802.3an, transmission characteristics: PL Class EA (ISO/IEC) 500 according to ISO/IEC 11801, EN 50173-1, surface-mounted housing with foldable and non-removable transparent labeling field, connection of installation cables with LSA-Plus punch-down terminals with color coding according to EIA/TIA 568A and B, shield contact and cable strain relief via screw terminal for both cables together, compact design for surface mounting with two RJ45 outlets parallel to the mounting plane, shielded version, RJ45 outlet facing down, cable entry from above, fastening with 2 screws max. 3.5 mm diameter, plastic housing with snap-on cover.
Fire protection class: not relevant, burning dripping: not relevant, smoke development: not relevant, acid development: not relevant. Version: shielded, surface-mounted, color: pure white RAL 9010, short designation: VAD 8/8 Ap Compact-S Class EA (ISO/IEC) 500.

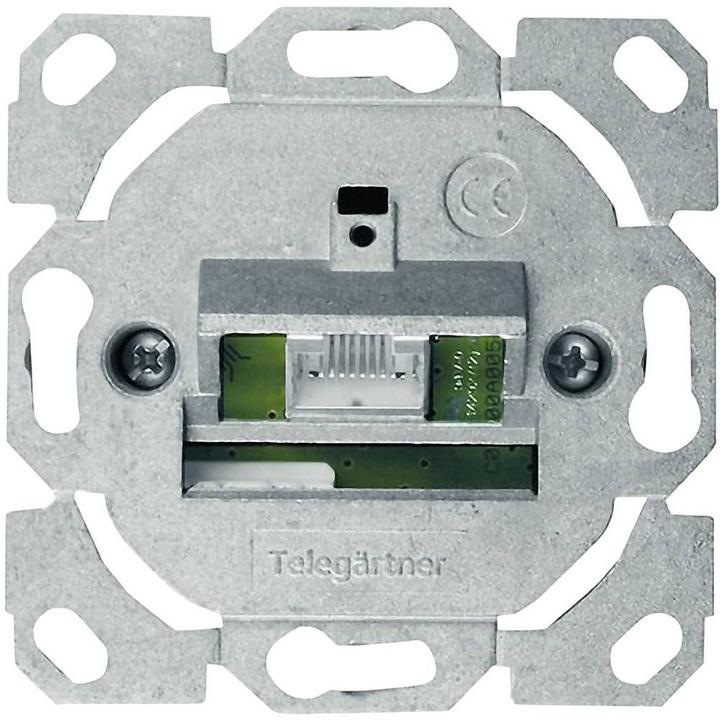

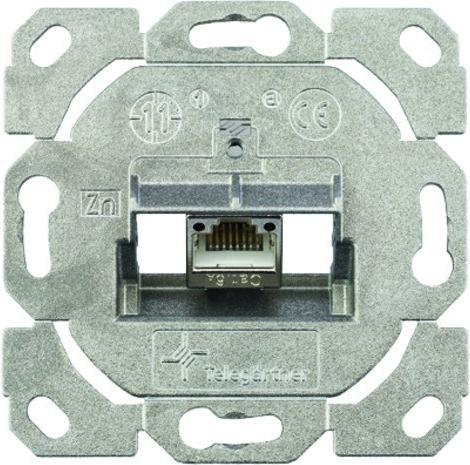

6. Telegärtner Module holder AMJ-S 1gang UP/0flex Cat6A T568B J0002
Ready for any situation: The wide variety of module sockets from Telegärtner provides the right product for every need. Whether in a skirting channel, on or under plaster. Available either as an unpopulated variant for individual configuration or already pre-populated with our high-performance modules. The populated variants ensure transmission characteristics according to Cat.6A, in accordance with EN 60603-7-51. The socket spacing of the proven AMJ45 connection socket and the UAE connection socket is guaranteed. This offers users unprecedented design options for tackling their daily cabling tasks.
Features:
- Cat.6A ISO/IEC according to IEC 60603-7-51
- Cat.6A ISO/IEC re-embedded tested according to IEC 60512-27-100
- Link certification: Class EA ISO/IEC according to ISO/IEC 11801
- 10 Gigabit Ethernet compliant with IEEE 802.3an
- Contact over-bend protection: 750 mating cycles with RJ45/RJ11/RJ12 connectors
- Suitable for PoE according to IEEE 802.3at
- With design-capable module socket AMJ-S Up0flex
- Compatible with covers from various switch program manufacturers
- Integrated cable catch for cable diameters up to mm
- Universal worldwide available installation dimensions for mounting cutouts 19.3 x 14.7 mm
- Optically monitored testing of RJ45 contact heights
- Flush-mounted installation possible
- Populated with up to three AMJ-S modules
Notes: For skirting channels and underfloor installations, appropriate electronic boxes must be provided.
Design: Module carrier including AMJ-S module Cat.6A ISO/IEC T568B, combinable with covers from various switch program manufacturers.
Series: AMJ-S
Short designation: Design-capable module socket AMJ-S single UP0 flex 100022969.

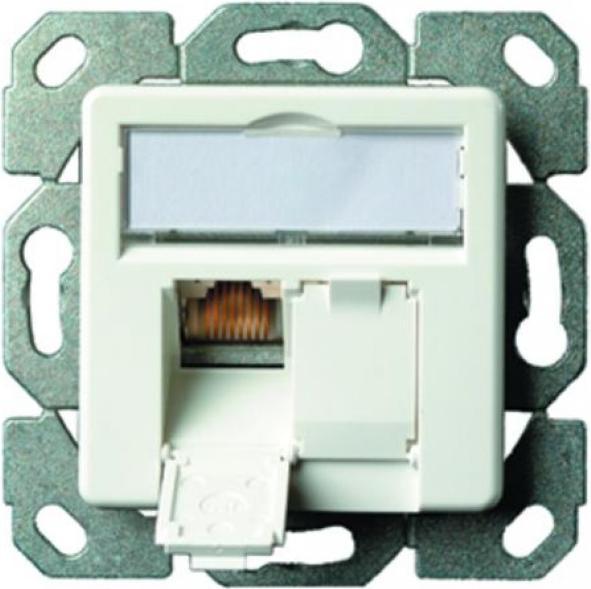

7. Telegärtner Junction box ISO/IEC, 1-way, Cat.6A AMJ45 8 K Up/0
Telegaertner A Box for All: The robust AMJ45 data connection socket is the universal connection box for nearly all requirements, and at an attractive price. The cable entry can be selected from 8 sides in 45-degree increments. With its shallow installation depth and the tool-free detachable parts of the support ring, the AMJ45 can also be installed where other sockets take up too much space. The wires of the data cable are conveniently laid from the front, allowing for easy and time-saving installation even with short cable ends and tight spaces. With grounding connections at all four corners, the AMJ45 can also be easily integrated into special grounding and potential equalization systems. The patented, integrated contact over-bending protection safeguards the connection contacts in case RJ11 or RJ12 plugs from telephone or fax devices are accidentally inserted. Even after repeated incorrect insertions, the AMJ45 maintains full data rate. The contacts of the AMJ45 are optimized for remote powering of end devices: arc flashes that occur when unplugging under load do not reach the contacts used for data transmission.
8. Telegärtner J00020A0523 2 x RJ-45 White outlet
Module receptacle AMJ-S DD 2-gang flush-mounted in alpine white, including 2 AMJ-S DD modules Cat.6A T568B. Key features: Jack type 2 x RJ-45. Product color: white. Network cable category: 6A.

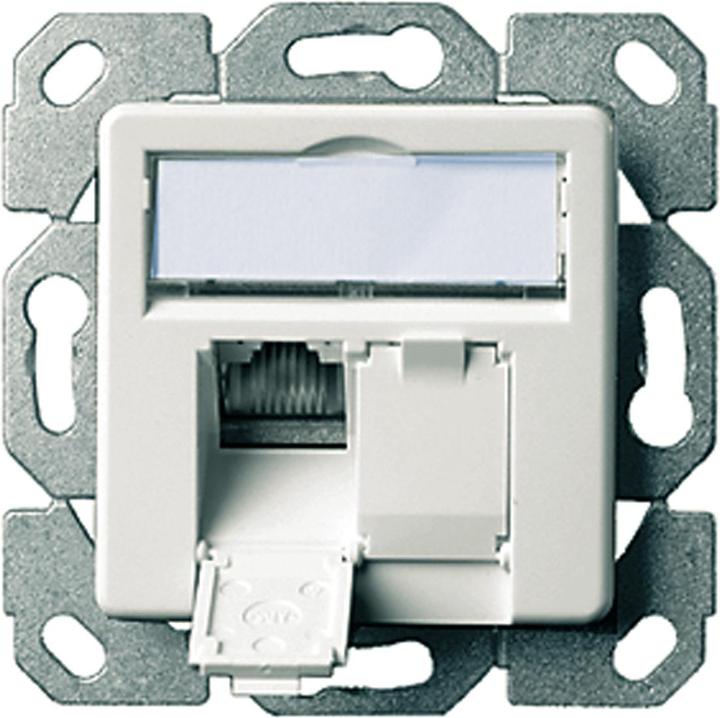

9. Telegärtner AMJ45 network wall outlet RJ-45 (W) shielded CAT 6 Alpine White 1 piece
Transmission performance: Cat.6A according to ISO/IEC 11801; EN 50173-1. Fully shielded with 360° shielding contact and strain relief through two separate, captive screw clamps for the exterior cable jacket and shielding. Can be wired from all directions in 8x45° steps. Supports either horizontal or vertical installation in the cable duct due to variable cable inlet. The type offers low installation depth, allowing for problem-free installation in floor tanks with side cable inlet within the subfloor mounting box. Features a plug-in ground connection option at all four corners, according to DIN 46342-1; 6.3 mm. Can be combined with covers from a wide variety of switching programs. Independent AP design available; an AP add-on set is not required. The faceplate can be retrofitted with a flip-up loss-proof, transparent label field and protection flaps. One-way (8) and two-way outlets (8/8, 2x8(4)) are available. Stable, compact, ergonomic construction provides a secure hold during installation.
10. Telegärtner TELEGAERTNER UPDose Cat6/Cl.E double 2xRJ45 alpinwhite AMJ45 (25.16.8650)
Suitable for surface mounting and installation in cable duct or floor tank. Can be combined with covers of various switch program manufacturers when using an AMJ45 box without central plate. Up to three boxes fit into one floor tank device casing. Cable feed from eight possible directions in 45° steps and pluggable earth connection at all four corners. Optional horizontal and vertical installation in the parapet trunking due to variable cable entry. Design with low installation depth allows trouble-free installation in the floor tank due to lateral cable routing inside the device casing. Fully shielded metal housing. Surface mounting requires surface mounting frame set 25.16.8555. Flush mounting requires cover frame single 25.16.8560 or cover frame double 25.16.8565. The universal device mounting bracket 25.16.8557 enables an assembly-friendly and space-saving installation of the junction boxes in a parapet trunking system. Suitable for trunking systems of various manufacturers such as Ackermann, Jung, Rehau, and Tehalit.
