Best Telwin products in the Welding machines category
On this page you'll find a ranking of the best Telwin products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

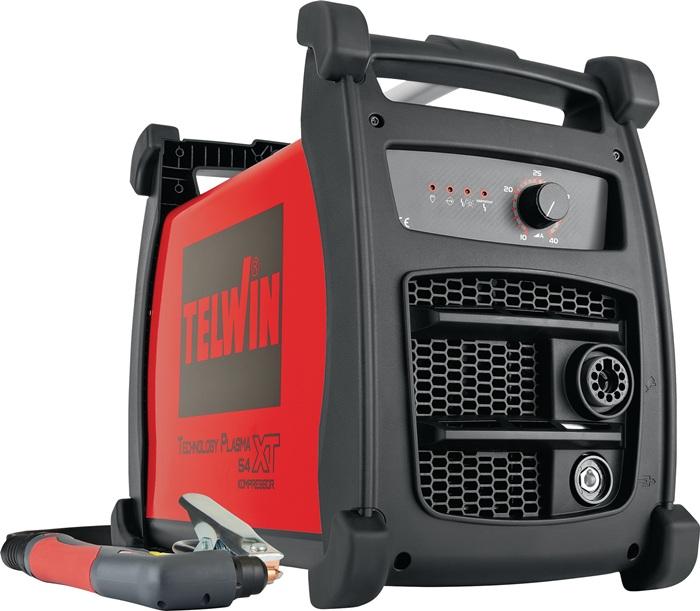

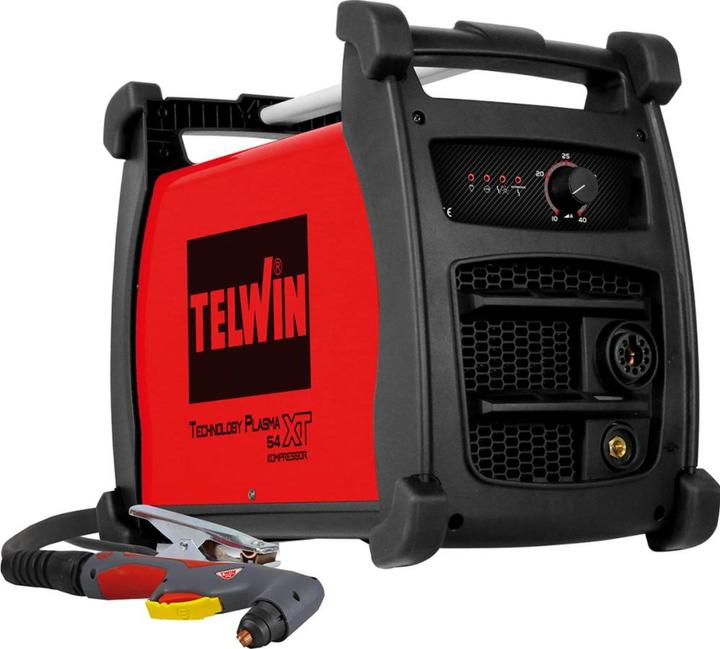

1. Telwin Plasma cutting inverter 54 XT incl. PK torch
Inverter system for compressed air plasma cutting with contact ignition, suitable for cutting steel, stainless steel, aluminium, copper, brass, and more. It includes an integrated compressor and features automatic cooling of the torch and a compressed air supply.
Other technical features:
- Width: 285 mm
- Length: 560 mm
- Ignition: Contact ignition
- Ambient temperature: -10 to + 40°C
- Mains fuse, slow-blow: 16 A
- Weight: 18.98 kg
- Protection class: IP23
- Cutting current at 25% duty cycle: 35 A
- Design: Includes PK torch
- Plasma and cooling gas: Without gas
- Height: 465 mm
- Working pressure: 4-5 bar
- Cutting current: 10-40 A
- Mains voltage: 230 V / 50/60 Hz
- Open circuit voltage: 313 V DC
- Max. connected load: 4.5 kW
Scope of delivery: Complete with PK torch.
2. Telwin Inverter welder and TIG
Telwin Tecnica 188 MPGE - Inverter welding machine and TIG
The Telwin Tecnica 188 MPGE inverter welding machine is a high-quality product made in Italy. It is a premium model in the field of MMA and TIG electrode welding with direct current (DC). The machine features strip ignition and is known for its versatility, accommodating a wide range of electrodes, including rutile, base material, stainless steel, cast iron, and more.
Technical data
Machine type: Inverter MMA + TIG
Electrode MMA: Yes
TIG: Yes
Setting range (A): 10 - 150
Ignition voltage: 82 V
Electrodes MMA: 1.6 - 4
Duty cycle 40°: 25 %
Generator +/- 15%: Yes
TIG lift: Yes
Contents
Package of 250 electrodes AWS 2.0 mm
Package of 150 electrodes AWS 2.5 mm
Welding gloves.

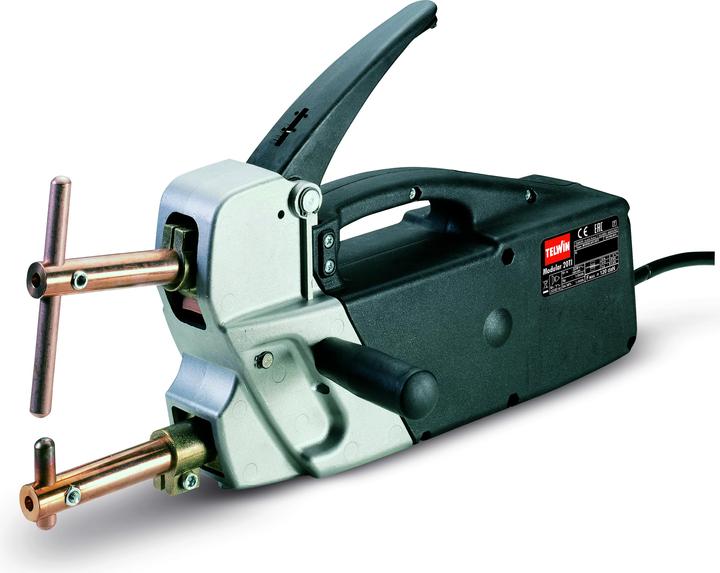

3. Telwin 823015
Modular 20 TI 230V spot welding machine with electronic control of the spot welding time. Suitable for spot welding of sheets with a maximum thickness of 1+1 mm. Features: - Synchronous electronic timer with spot welding time adjustable from 0.1 sec to 1.2 sec. - Arms pressure adjustable from 40 kg to 120 kg (with arms L= 120 mm). - Handgrip made out of thermic isolating material.

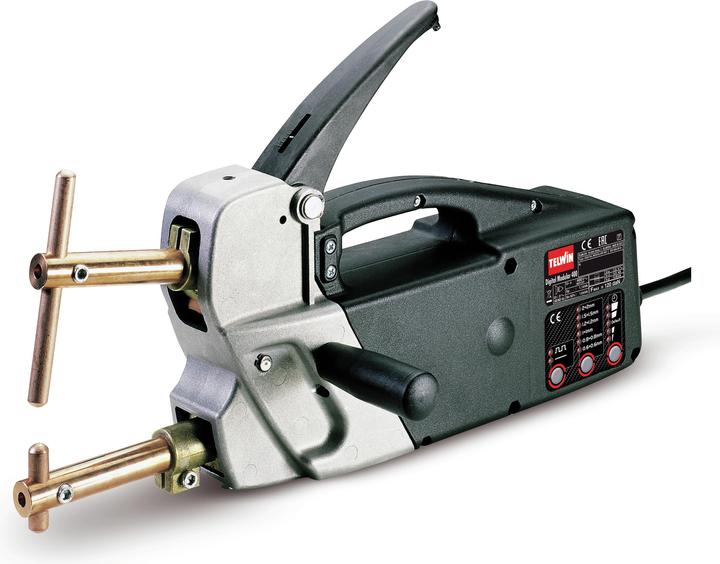

4. Telwin 823017
Digital modular 400 400V microprocessor controlled spot welding machine. It implements a new fuzzy logic control system that simplifies its use and increases the spot welding quality. Suitable for spot welding of sheets with a maximum thickness of 2+2mm. Features:
- Automatic regulation of the spot welding current and time according to the material thickness
- Choice between continuous and pulse operation (suitable for sheets with high yield points - high stress)
- Arms pressure adjustable from 40 kg to 120 kg (with arms L= 120 mm)
- Handgrip made out of thermic isolating material
- Thermal protection.

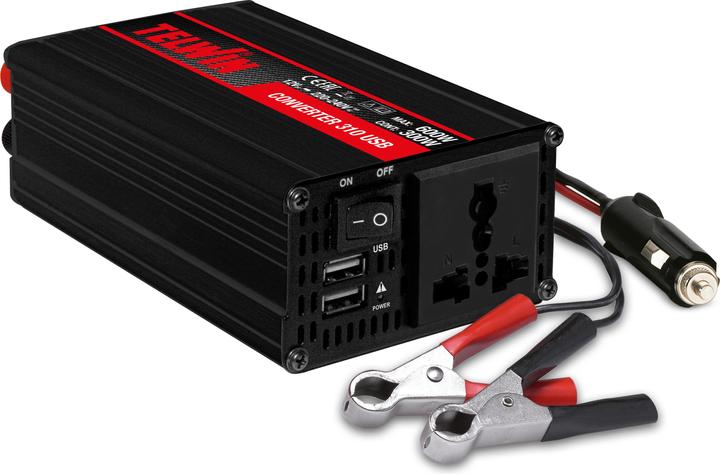

5. Telwin Converter 310
6. Telwin 823016
Digital modular 230 230V microprocessor controlled spot welding machine. It implements a new fuzzy logic control system that simplifies its use and increases the spot welding quality. Suitable for spot welding of sheets with a maximum thickness of 2+2mm.
Features:
- Automatic regulation of the spot welding current and time according to the material thickness
- Choice between continuous and pulse operation (suitable for sheets with high yield points - high stress)
- Arms pressure adjustable from 40 kg to 120 kg (with arms L= 120 mm)
- Handgrip made out of thermic isolating material
- Thermal protection.

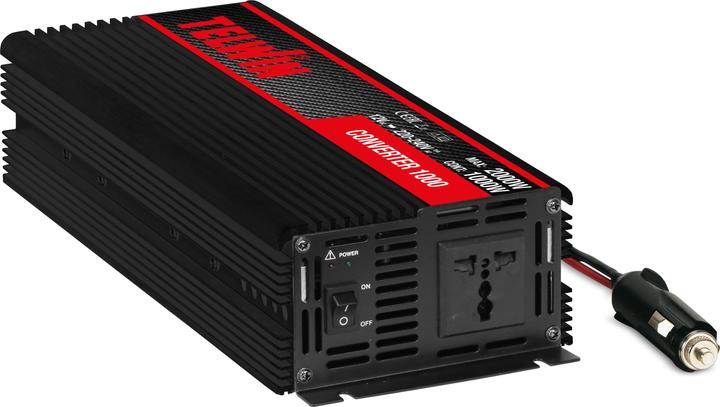

7. Telwin Converter 1000
