Best selling Wood connectors from Pitzl
This page always stays fresh and updates automatically.
1. Pitzl Wood connector heavy duty HVP
For main and secondary beam connection wood-wood, the angled holes and the usability of different screw lengths guarantee fitting accuracy even with smaller wood cross-sections, without screws.
2. Pitzl Double wood connector HVP
Double width for double load capacity. The perfect connection for square wooden cross-sections or wide beams with low height.
Fastening:
Connector width: 120-160 mm: Screw 5.0 x 60 - 100 mm full thread.
Connector width: 240 mm: Screw 8.0 x 100 - 200 mm full thread.
With European Technical Assessment (ETA 15/0187).
Double HVP connectors are delivered with lift-off protection. Includes 4 screws ISK M5 x 20, 2 lift-off protection plates. Accessories are packed together in a bag for each HVP.
Width (mm): 160
Surface: anodized
Type: 88322.2000
Holes (pcs): 84
Material thickness (mm): 12
Material: Aluminum
Shape: HVP
Length (mm): 220
Size (mm): 160 x 220 x 12
Designation: Wood connector Double HVP
Brand: Pitzl
Quantity (pcs): 1.

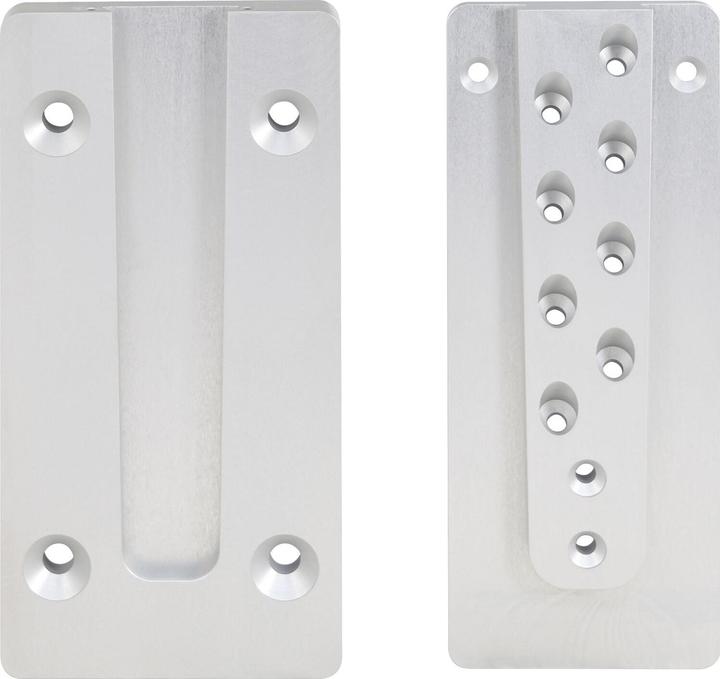

3. Pitzl HVP concrete connection 150x300x25 anodised aluminium
The HVP concrete connection from Pitzl is a high-quality connection solution specifically designed for the assembly of wood and concrete structures. With a robust construction made of anodized aluminum, this connection provides a reliable and durable link for secondary beams to main beams or columns. Its versatile application allows for both concealed and visible installations with shadow gaps, ensuring an aesthetic integration into various construction projects. Additionally, angled connections and shifts can be realized, increasing flexibility in planning and execution. A static calculation of the connection to concrete is required to ensure the safety and stability of the structure. Therefore, the HVP concrete connection is an ideal choice for demanding construction projects that require both functionality and design.
- Anodized surface for increased corrosion resistance
- Versatile application for wood-concrete and wood-steel connections
- Allows for angled connections and shifts
- With European Technical Assessment (ETA 15/0187).
Wood connectors
EUR191,21
Pitzl HVP concrete connection 150x300x25 anodised aluminium
Beam connector, 1 pcs.

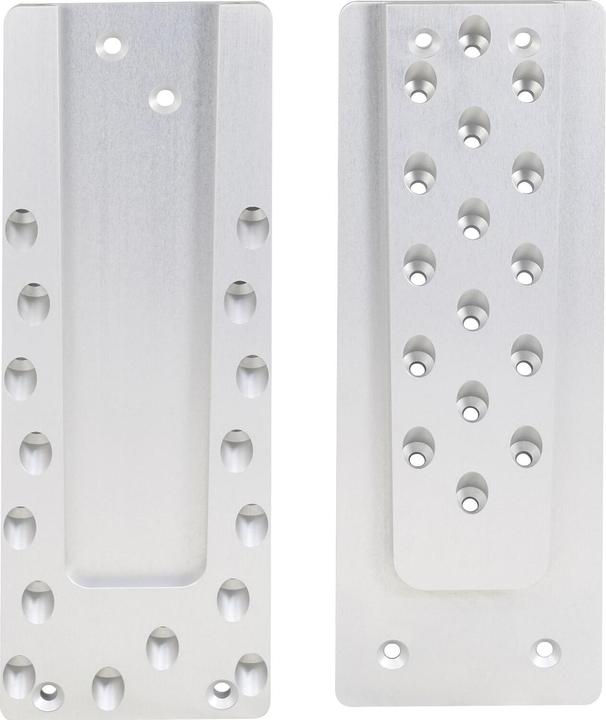

4. Pitzl Heavy-duty HVP 140x400x20 mm anodised aluminium
Application: Timber and timber connections from secondary beams to main beams or columns. The system can be installed concealed or with a shadow gap, and connections inclined downwards or upwards as well as shifting can also be realized.
Product benefits: Suitable for halls with large spans, enormous load-bearing capacity, precise and accurate fit, simple and quick installation on the construction site, and static values.
Fastening: Connector width 120 and 140 mm: screw 8.0 x 100 - 200 mm fully threaded. With European Technical Assessment (ETA 15/0187).
Note: It is possible to connect the heavy-duty HVP connector to steel and concrete.
Material: Aluminium
Width (mm): 140
Material thickness (mm): 20
Type: 88540.1000
Shape: HVP
Surface: Anodised
Length (mm): 400
Holes (ST): 40
Size (mm): 140 x 400 x 20
Brand: Pitzl
Designation: Heavy-duty HVP timber connector
Contents (ST): 1.
5. Pitzl 5-hole plate for M24 with locking tab 100x100x6 ZiNiP coated
The 5-hole plate for M24 with a safety tab is a high-quality connecting element specifically designed for use with post supports. This plate is made of robust steel and offers additional protection against corrosion thanks to its ZiNiP coating. The safety tab is securely welded to the plate, ensuring increased safety and stability. With a thickness of 6 mm and a square shape of 100 x 100 mm, this hole plate is ideal for various applications in the construction and building sector. The four holes with a diameter of 12 mm allow for easy and flexible installation. This 5-hole plate is an essential element for anyone who values safety and durability.
- Safety tab is securely welded to the plate
- ZiNiP coating for additional corrosion protection
- Suitable for post supports of types 11009 - 11013
- Easy installation with four holes of 12 mm diameter.
Wood connectors
EUR21,39
Pitzl 5-hole plate for M24 with locking tab 100x100x6 ZiNiP coated
Perforated plate, 1 pcs.

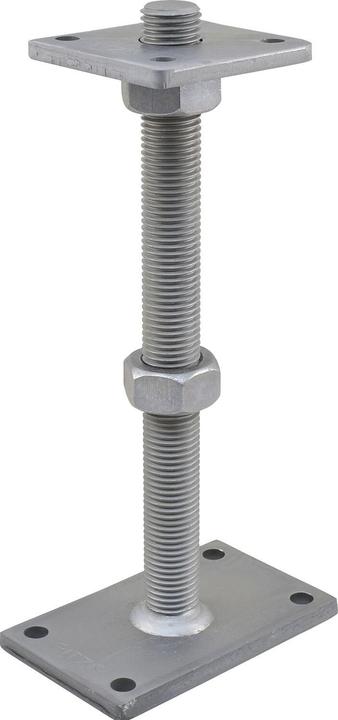

6. Pitzl Post support type 11016.1300 ZiNiP coated heavy-duty version
Application: Adjustable post supports with threaded rods for bolting are suitable for accommodating vertical and horizontal loads. The upper plate is available upon request either welded with a nut or with a safety tab.
Fastening: Pan head screw 10x120 or frame screw (DIN 571) and anchor bolts or concrete screws 12mm.
With European Technical Assessment (ETA 10/0413).
Type: 11016.1300
Upper plate (mm): 100x100x10
Thread M 30 bottom (mm): 330
Lower plate (mm): 160x100x10
Surface: ZiNiP coated
Material: Steel
Number of holes ø 13 (pcs): 4
Number of holes ø 12 (pcs): 4
Designation: Post support
Brand: Pitzl
Quantity (pcs): 1.

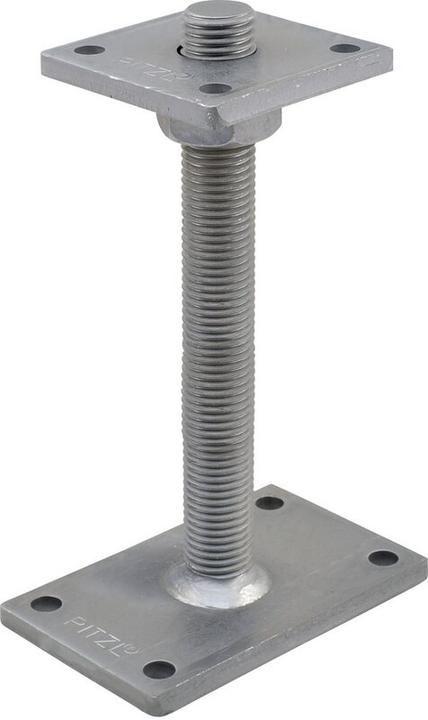

7. Pitzl Support feet PTP easy
The PTP easy support feet from Pitzl are high-quality construction fittings designed for reliable connections and stability in various building projects. Made from robust steel with a special zinc-nickel surface treatment, these support feet offer excellent corrosion resistance and durability. They are easy to install, as they are suitable for screwing, allowing for quick and efficient installation. With uniform dimensions of 100 millimeters in width, length, and height, they are versatile and can be used in different applications. These support feet are ideal for use in woodworking and construction, where stability and safety are of utmost importance.
- Made from corrosion-resistant steel with a zinc-nickel surface
- Easy installation through screwing
- Versatile for various construction projects
- Made in Germany to high quality standards.
8. Pitzl Wood connector HVP
Standard connector for wood-wood connection, with lift-off protection. Optimal edge distances and variable screw lengths guarantee fitting accuracy for any wood cross-section, without screws.

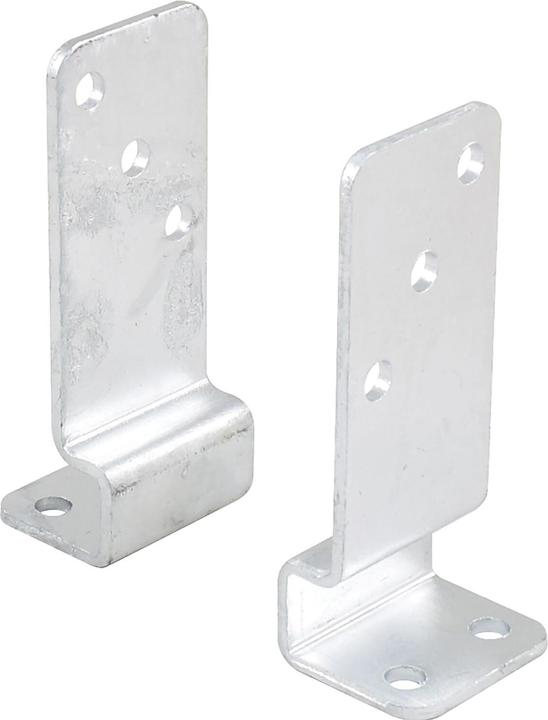

9. Pitzl Post anchor Atlas 11046 for fence posts - hot-dip galvanised steel / 2-part
The Atlas 11046 post anchor from Pitzl is a robust and reliable solution for securing fence posts with a minimum thickness of 40 mm. This two-part anchor is specifically designed for outdoor use and provides effective protection against rot due to its elevated support. Made from hot-dip galvanized steel, it ensures high resistance to weather conditions and offers long-term stability. With five 11 mm diameter holes per anchor, the post anchor can be easily and securely fastened. Its total height of 139 mm and dimensions of 60 x 5 mm make it a practical choice for various fencing projects.
- Elevated support protects against rot
- Easy installation with 5 holes
- Durable material made of hot-dip galvanized steel
- Suitable for post thicknesses starting from 40 mm.
Wood connectors
EUR17,10
Pitzl Post anchor Atlas 11046 for fence posts - hot-dip galvanised steel / 2-part
1 pcs.

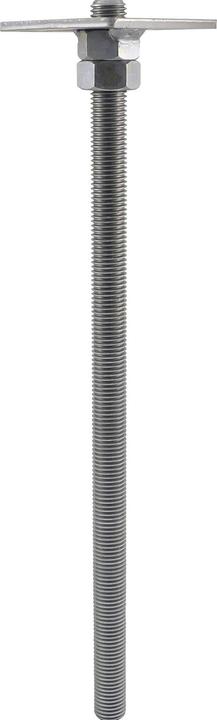

10. Pitzl Post support type 10934.5401 ZiNiP coated for setting in concrete
The post holder type 10934.5401 from Pitzl is a robust and reliable solution for securing posts in various construction projects. Made from high-quality steel and coated with ZiNiP, this post holder not only offers high corrosion resistance but also a long lifespan. The construction includes a welded nut as well as a loose nut for countering, ensuring a secure and stable connection. The top plate is available in two sizes, providing flexibility in application. This post holder is ideal for use in gardening and landscaping, as well as in the construction of terraces and other wooden structures. The precise hole size of 12 mm ensures easy installation and adjustment to different post thicknesses.
- Welded nut for added stability
- ZiNiP coating for increased corrosion resistance
- Flexible size options for the top plate.
Wood connectors
EUR42,18
Pitzl Post support type 10934.5401 ZiNiP coated for setting in concrete
1 pcs.
