Wood connectors
−40%
only 2 of 2 remaining on sale
EUR14,13 was EUR23,68
Simpson Sst Please maintain in Hybris or Grundatentext in SAP-ERP in DE!!!
Best selling Wood connectors from Simpson Sst
On this page you’ll find a ranking of the best Wood connectors from Simpson Sst. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Simpson Sst Please maintain in Hybris or Grundatentext in SAP-ERP in DE!!!
The one-piece alternative to the conventional Gerber connector is used for the joint formation of purlins at the moment zero point. The installation of a one-piece connector saves time, and the upper opening of the Gerber connector can accommodate dimensional tolerances in the wood. Pre-assembly in the workshop is possible.
Mounting holes 5 mm.
2. Simpson Sst Angle connector AH16050 160 x 50x40mm S.3 mm ETA 07/0285
Connection of wooden components to concrete is used. They can also be used for cross connections of wood/wood or connections of wood to other materials.
Wood connectors
−9%
EUR250,91 was EUR275,56
Simpson Sst Angle connector AH16050 160 x 50x40mm S.3 mm ETA 07/0285
Angle connector, 100 pcs.
3. Simpson Sst Rafter purlin anchor SPF SPF290L left 290x32.5x2mm
Can be used in roof constructions to anchor purlins to beams. Made of hot-dip galvanized steel.
Further technical properties:
- Surface: hot-dip galvanized
Content quantity: 100 pieces per carton.
Wood connectors
EUR263,95
Simpson Sst Rafter purlin anchor SPF SPF290L left 290x32.5x2mm
Rafter purlin anchor, 100 pcs.
4. Simpson Sst Simpson BAN Windrispenband 40x2,0 25 m stainless steel
The Simpson BAN wind bracing tape is a high-quality fastening element specifically designed for outdoor use. Made from stainless steel (material number 1.4401 WKL III), it offers excellent corrosion resistance and durability. With a length of 25 meters, this wind bracing tape is ideal for various construction projects where a reliable connection and stability are required. The use of stainless steel nails and screws ensures a secure and long-lasting fastening. This product is particularly suitable for applications where weather resistance and strength are crucial. Its ease of handling and versatile applications make the Simpson BAN wind bracing tape a valuable addition to any craft business or DIY project.
- Made from stainless steel for high corrosion resistance
- Suitable for outdoor use and various construction applications
- Length of 25 meters allows for flexible usage options
- Compatible with stainless steel nails and screws for secure fastening.
Wood connectors
−74%
EUR409,– was EUR1599,–
Simpson Sst Simpson BAN Windrispenband 40x2,0 25 m stainless steel
Wind panic bath

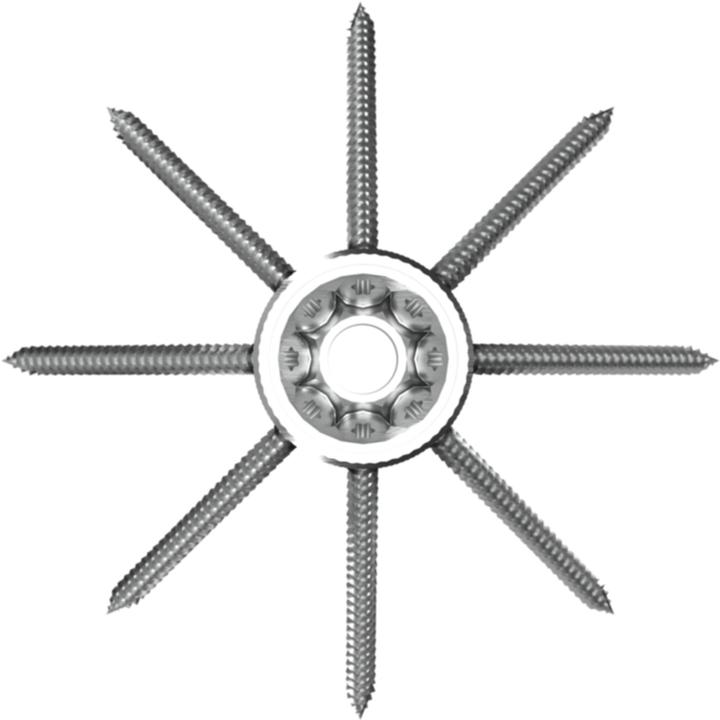

5. Simpson Sst Verbinder SIMPSON CCS 40 / 85
The CCS connector, also known as "Hydra," is designed for wood-to-wood or wood-to-steel connections. It is engineered to handle tensile and shear loads. The connector is attached to the wood using 4, 6, or 8 CSFT screws, with a height of 25 mm.
Advantages:
- Multiple fastening options
- Can be used for tensile and shear forces
- Dowel effect of the connector in the wood
Application areas:
- Concealed connections
- Main beam / secondary beam connections
- Frame on support
- Steel components on end grain wood
- Temporary connections for quick assembly and disassembly (e.g., trade fair construction)
- Stop socket for eye bolt.

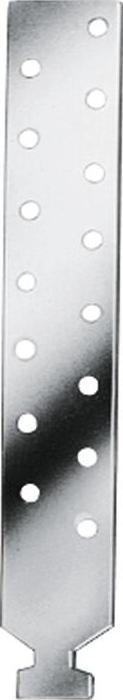

6. Simpson Sst Profile anchor PROFA198 198 x 35 mm hot-dip galvanised ETA 07/0285
The PROFA198 profile anchor from Simpson Strong-Tie is a reliable solution for fastening wooden beams to profile rails. With dimensions of 198 x 35 mm and a material thickness of 3 mm, this hot-dip galvanized steel anchor offers high strength and durability. It is specifically designed for use with comb nails and screws, allowing for flexible and secure installation. The anchor meets the requirements of ETA 07/0285, underscoring its quality and reliability. Packaged in units of 100, it is ideal for larger projects or professional applications. The profile anchor is manufactured in Denmark and provides a robust solution for various construction and renovation projects.
- Suitable for fastening wooden beams to profile rails
- Usable with CNA comb nails and CSA screws
- Meets the requirements of ETA 07/0285
- Made from hot-dip galvanized steel for increased corrosion resistance.
Wood connectors
EUR230,61
Simpson Sst Profile anchor PROFA198 198 x 35 mm hot-dip galvanised ETA 07/0285
100 pcs.
7. Simpson Sst Beam shoe BSNN 100/170
Application: Connection of secondary beams made of wood or wood-based materials to main beams or supports made of wood, concrete, or steel. Also suitable for biaxial loading.
Fastening: Comb nails CNA 4.0 x l or screws CSA 5.0 x l / anchor bolts or concrete screws ø 10 mm in concrete/steel.
Product advantages: CE marking, versatile wood/concrete connections, loadable in two axial directions, reduced number of nails with nearly the same load-bearing capacity, batch number printed on each product, staggered nail arrangement in the secondary beam, additionally loadable in tension, uniform bolt hole diameters, bolt holes set deeper.
With European Technical Assessment (ETA 06/0270).
Legend: Char. Part. = characteristic value of load-bearing capacity towards the base plate with partial nailing. Char. Full. = characteristic value of load-bearing capacity towards the base plate with full nailing.
Values apply for: BSN with A ≤ 48 mm: with CNA 4.0 x 40, BSN with A 51 mm: with CNA 4.0 x 50, BSN with A > 60 mm: with CNA 4.0 x 60.
Material thickness (mm): 2D (mm): 27, B (mm): 170, Size (mm): 100 x 170, A (mm): 100, Shape: BSN, Material: Steel, Surface: hot-dip galvanized, Char. Value Part. (kN): 23.6, Number of holes ø 11 (ST): 4, CNA comb nails (mm): 60, Char. Value Full. (kN): 37.8, Number of holes ø 5 (ST): 36, F (mm): 64, C (mm): 60, Brand: Simpson, Description: Beam shoe, Type: BSN, Quantity (ST): 1.
Wood connectors
Quantity discount
EUR8,88 per piece for 3 units
Simpson Sst Beam shoe BSNN 100/170
Joist hanger, 1 pcs.
8. Simpson Sst Perforated plate NP20/140/400
The NP20/140/400 perforated plate from Simpson Sst is a versatile connector made from hot-dip galvanized steel. With a steel grade of S 250 GD + Z 275 according to DIN EN 10346, it provides effective corrosion protection with a zinc coating thickness of approximately 20 µm. This perforated plate is specifically designed for structural timber construction and is ideal for the production of timber frame and collar beam trusses. It can be laid on wood and wood-based materials and is available in various standard sizes as well as custom cuts. The use of Simpson Strong-Tie® CNA nails or CSA screws allows for the calculation of load capacities according to EC5 or DIN 1052, which expands its application possibilities in construction practice. The perforated plate is suitable for both indoor and outdoor use and offers a reliable connection due to its robust design.
- Made from hot-dip galvanized steel for optimal corrosion protection
- Versatile for use in structural timber construction
- Suitable for the production of timber frame and collar beam trusses
- Allows for the calculation of higher nail load capacities
- Compatible with Simpson Strong-Tie® nails and screws.
Wood connectors
Quantity discount
EUR11,24 per piece for 3 units
Simpson Sst Perforated plate NP20/140/400
1 pcs.
9. Simpson Sst SIMPSON beam shoe BSD 200x320 hot-dip galvanised external with rating
Application: Connection of secondary beams made of wood or wood-based materials to main beams or columns made of wood, concrete, or steel. Also suitable for biaxial loads. Holes up to 13 mm can be made for fixing concrete or steel connections; the position, number, and diameter of the bolt holes can be selected according to requirements. Fastening: CNA 4.0 x l comb nails or CSA 5.0 x l screws/anchor bolts or concrete screws. Sheet thicknesses of 2.5 and 3.0 mm are also permitted (customized production). With European Technical Assessment (ETA 06/0270). Note: Special dimensions available on request. Legend: Char. Part. = Characteristic value of the load-bearing capacity towards the base plate with partial nailing. Char. Full. = Characteristic value of the load-bearing capacity towards the base plate with full nailing. Values apply when using CNA 4.0 x 60. Material: steel. B (mm): 320. D (mm): 52. Shape: BSD. Number of holes ø 5 (ST): 90. Surface: hot-dip galvanized. Material thickness (mm): 2. A (mm): 200. C (mm): 30. CNA comb nails (mm): 60. Char. Value full (kN): 75.5. Char. Value partial (kN): 42.5. Size (mm): 200 x 320. Designation: Beam shoe. Type: BSD. Brand: Simpson. Contents (ST): 1.
Wood connectors
EUR49,90
Simpson Sst SIMPSON beam shoe BSD 200x320 hot-dip galvanised external with rating
Joist hanger, 1 pcs.
10. Simpson Sst Support shoes, Type I
The Type I column shoes from the brand Simpson Sst are specifically designed for use in construction. They serve as reliable connection elements that provide a stable base for various structures. Made from galvanized steel, these column shoes ensure high resistance to weather influences and corrosion. With precise surface finishing, they are ideal for use in demanding environments. The column shoes are equipped with multiple mounting holes that allow for easy and secure installation. Their robust construction and the use of high-quality materials make them an excellent choice for construction projects where stability and durability are required.
- Mounting holes with a diameter of 8.5 mm for easy installation
- Made from galvanized steel for increased corrosion resistance
- Suitable for various construction applications and structures.
