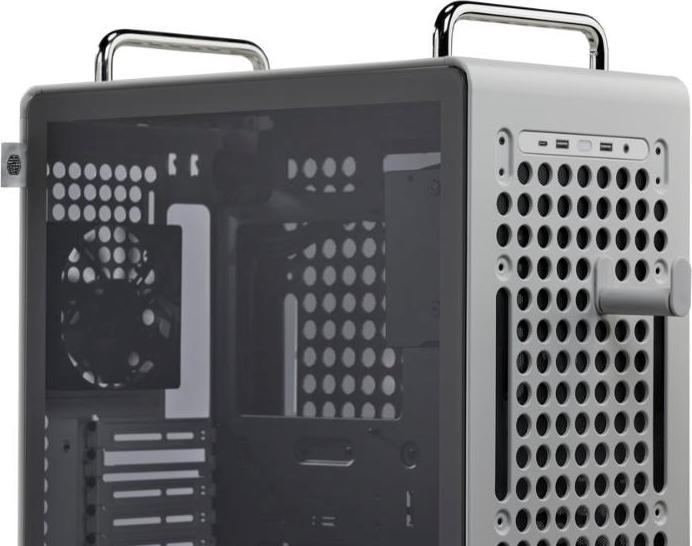

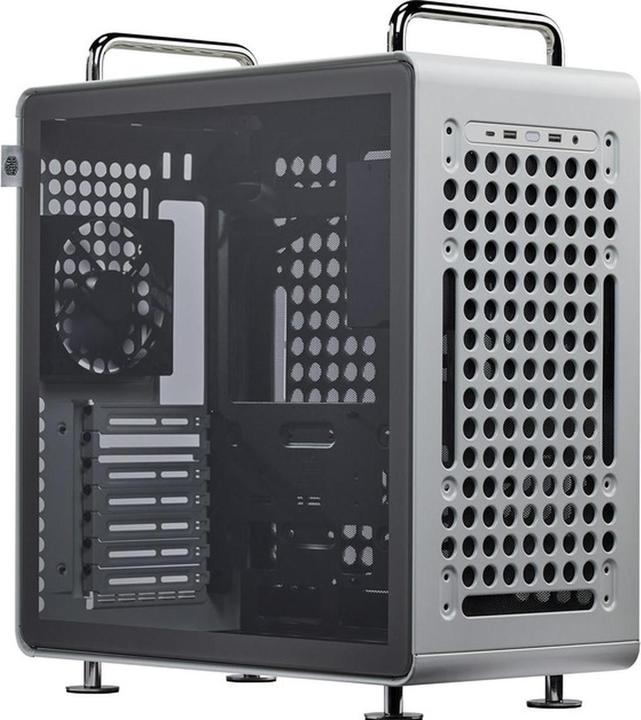

The CoolerMaster Qube 540 Moonstone is a mid-tower case suitable for a variety of motherboard form factors, including E-ATX, ATX, and Mini-ITX. With a sleek design and a transparent side panel, it not only offers an appealing aesthetic but also practical functionality. The maximum height for CPU coolers is 172 mm, while graphics cards can be up to 415 mm long, allowing for broad compatibility with high-performance components. The case features multiple internal bays, including one 3.5-inch and two 2.5-inch drive slots, enabling flexible storage expansion. Additionally, it includes various ports such as audio in, headphone out, three USB 3.2 ports, and a USB-C port for easy connection to peripherals.
PC case design | Midi tower |
3.5" drive bays (internal) | 1x |
Max. length graphics card | 415 mm |
Max. height CPU cooler | 172 mm |
PC case features | Side windows |
Front connections | USB-C |
Item number | 61834683 |
Manufacturer | Cooler Master |
Category | PC case |
Manufacturer No. | Q540-LGNN-S00 |
Release date | 4-9-2025 |
External links |
Colour | Grey |
Exact colour description | Moonstone, Moonstone (grey) |
Material group | Glass, Metal |
Material | Steel frames, tempered glass side panels |
PC case design | Midi tower |
Form factor | ATX, E-ATX, ITX |
"Number of 5.25"" drive slots" | 0x |
3.5" drive bays (internal) | 1x |
"Number of 2.5""/3.5"" combination slots" | 1x |
"Number of 2.5"" drive slots" | 2x |
Max. length graphics card | 415 mm |
Max. height CPU cooler | 172 mm |
LED lighting | ARGB |
PC case features | Side windows |
Front connections | USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 2 (1x), USB-C 3.2 Gen 2x2 (1x) |
Number of fans | 4x |
Number of fan slots | 7x |
Fan location | Front side, Top side |
Radiator locations | Front side, Top side |
Cooling properties | Fan control, Water cooling possible |
LED lighting | ARGB |
Fans included | 2x 140mm |
Radiator mount locations | 1x max. 360mm |
LED lighting | ARGB |
Fans included | 4x 140 mm |
LED lighting | ARGB |
Fans included | 2x 140mm |
Fan mount locations | 2x 140mm |
Fans included | 4x 140 mm |
Country of origin | China, Taiwan |
CO₂ emissions | 18,31 kg |
Climate contribution | EUR 0,47 |
Scope of delivery | Cable management, Dust filters, Installation material |
Height | 44.39 cm |
Length | 49.21 cm |
Width | 22.50 cm |
Weight | 12.50 kg |
Product Safety |
Length | 49.80 cm |
Width | 28 cm |
Height | 59 cm |
Weight | 10.58 kg |
