Sacon Patch cable
PiMF, CAT6a, 7 mOnly 2 items in stock at supplier
Colour
Length
Product details

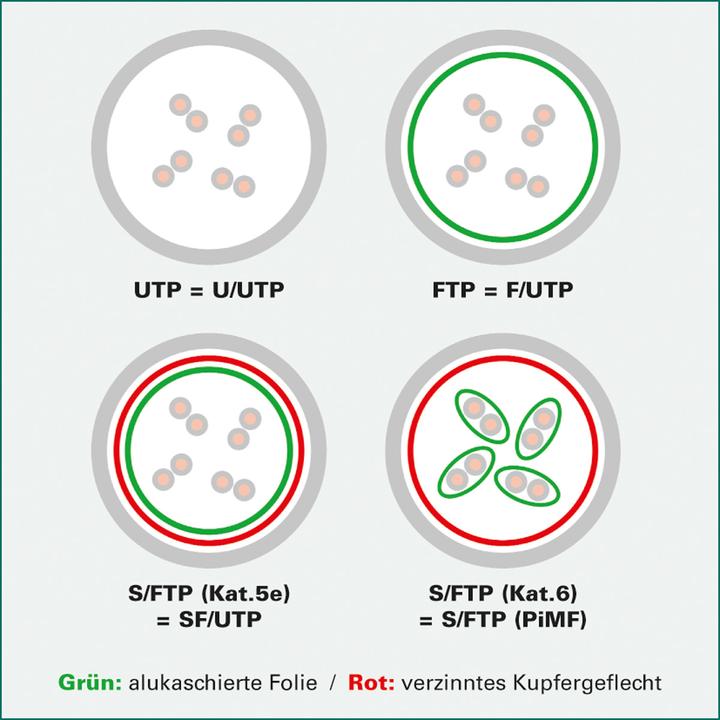

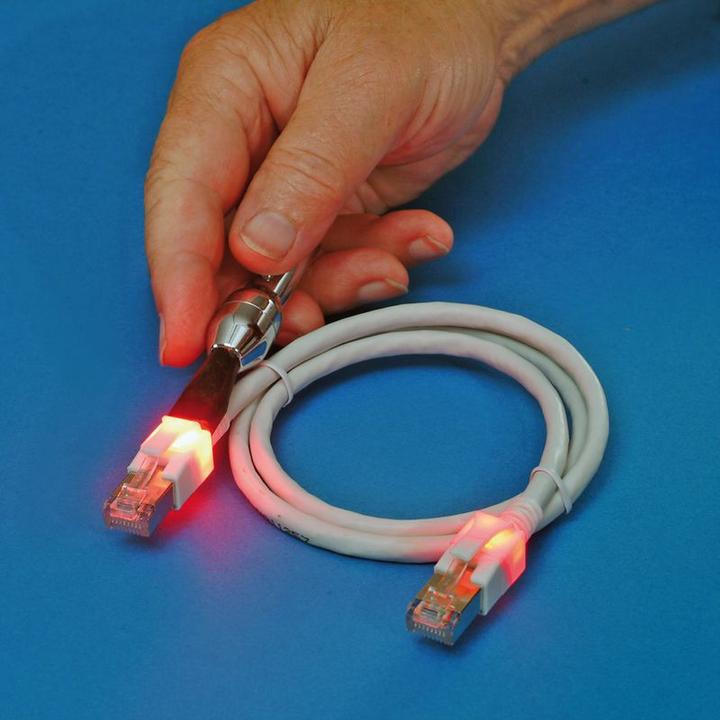

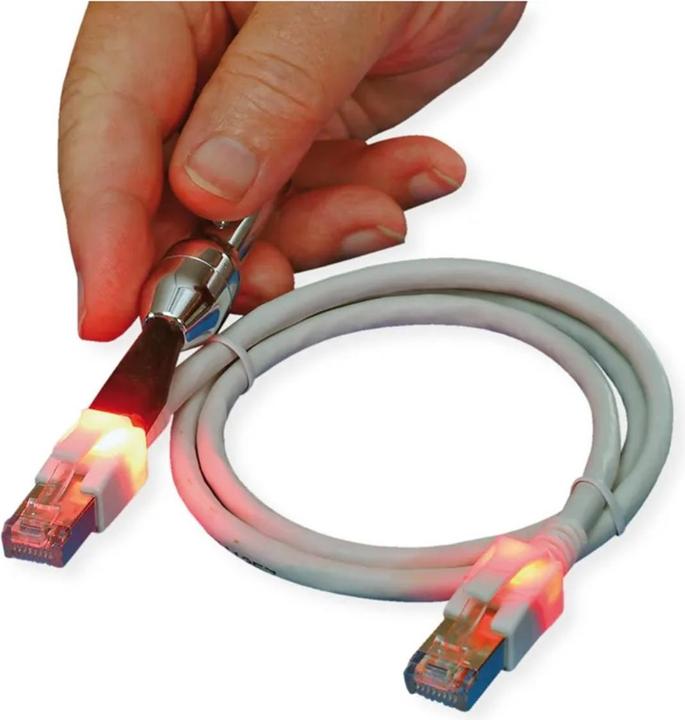

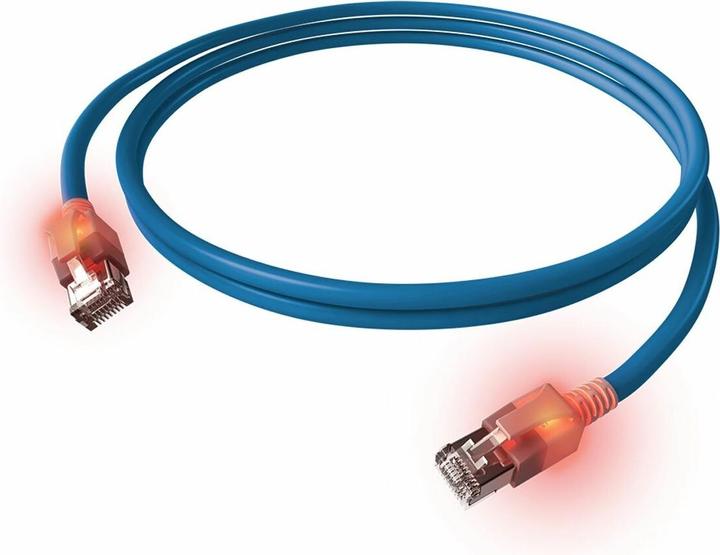

The saCon patch cable is specifically designed for use in offices, industry, and data centers. Its robust cable construction ensures that the electrical transmission parameters can only be affected by extreme mechanical stress. The combination shield used (PiMf + braid with over 65% coverage) along with the 360° shielded RJ45 connectors provides maximum data security. The patented method for easily identifying the connectors significantly increases operational reliability, virtually eliminating the risk of accidentally unplugging the patch cables. Once any side of the patch cable is connected to the injector, the integrated LEDs in the RJ45 connectors light up. Ongoing data transmission is not affected by the light identification. For service assignment, the RJ45 connectors can be marked with a color clip.
Patch cable type | Copper cable |
Contact assignment | straight |
Item number | 6003007 |
Manufacturer | Sacon |
Category | Network cables |
Manufacturer no. | 442623,7 |
Release date | 24-11-2016 |
Cable colour | Blue |
Material | Halogen-free |
Connection A | RJ45 |
Connection B | RJ45 |
Cable Application | Network |
Cable design | LSOH outer jacket |
Plug type | Flat |
Cable connection | Connection (m/m) |
American Wire Gauge (AWG) | 26 |
Frequency | 500 MHz |
Impedance | 100 Ohm |
Temperature range | Max. operating temperature: 60 °C |
Patch cable type | Copper cable |
Patch cable Features | Halogen-free, Handle protection |
Cable category | CAT6a |
Contact assignment | straight |
Shield | PiMF |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | 1 piece |
Length | 7 m |
Width | 13 mm |
Depth | 7000 mm |
Weight | 308.44 g |
30-day right of return
