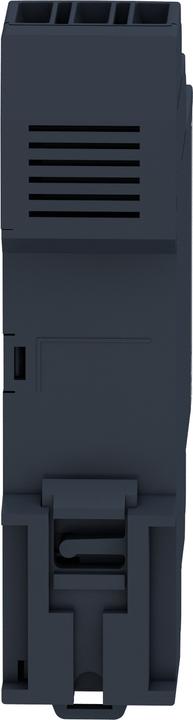

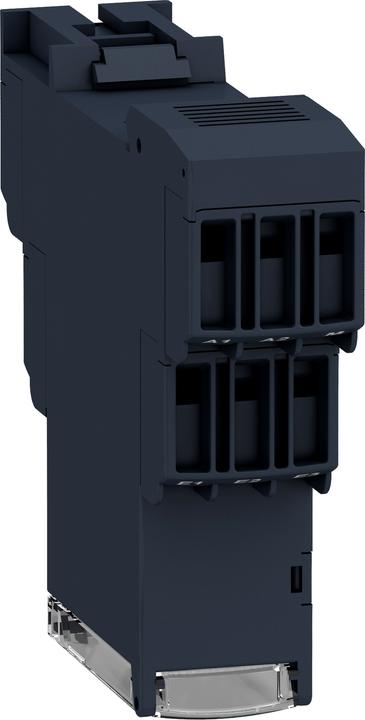

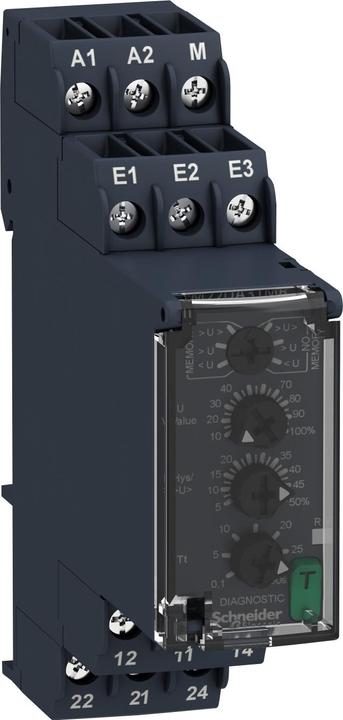

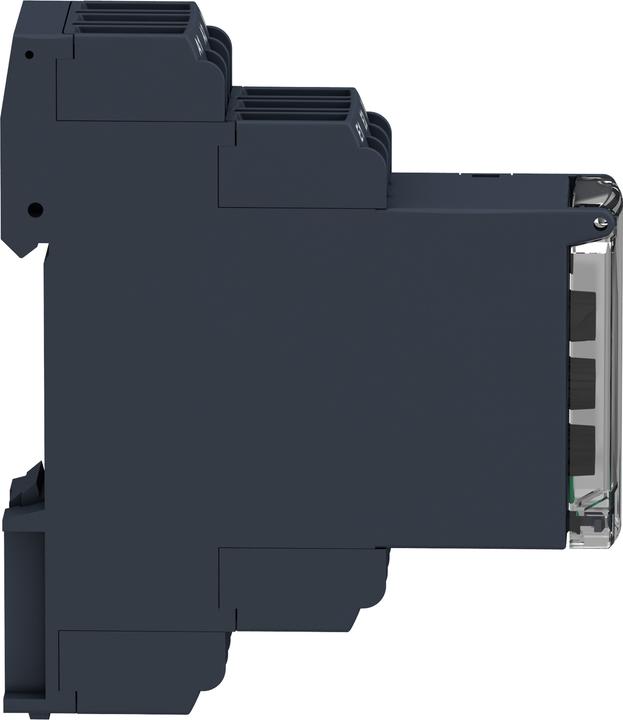

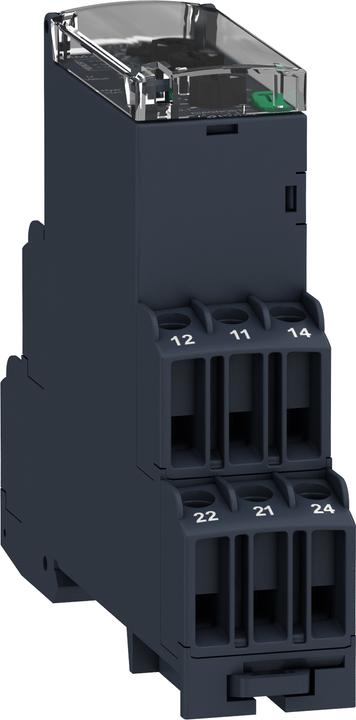

Schneider Electric Voltage Control Relay

Price in EUR including VAT
Ratings
BrandMore from Schneider Electric
Delivered between Sat, 6-6 and Fri, 19-6
free shipping

Output voltage2

Product details

Monitoring applications: Voltage
Supply voltage: 20.4 to 264 V ac/dc
Contact arrangement: 2-pole changeover switch
Voltage sensitivity: Overvoltage, undervoltage
Electrical phases: 1
Voltage measurement range: 1 to 100 V ac/dc
Delay time: 0.1 to 30 s
Voltage sensed max: 100 V ac/dc

RM22-UA Voltage Regulating Relay. Schneider Electric Zelio RM22UA series single phase or DC voltage regulation relays. Automatic AC or DC detection. Selection between overvoltage and undervoltage. Monitoring of own supply voltage, measured as true RMS value. Selectable memory function. LED display. DIN rail mounting 35 mm.

Key specifications

Relay type
Monitoring relay
input voltage
240 V
Output voltage
264 V
Electric current output
20.40 A
Output current type
AC, DC
Number of poles
1x

General information

Item number
9719856
Manufacturer
Schneider Electric
Category
Relays
Manufacturer no.
RM22UA32MR
Release date
24-9-2018

Relay properties

Relay type
Monitoring relay
input voltage
240 V
Output voltage
264 V
Electric current output
20.40 A
Output current type
AC, DC
Switching function
Changer
Number of openers
2x
Number of closers
2x
Number of poles
1x

Smart home features

Smart home
Not compatible

Origin

Country of origin
Indonesia

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
29,26 kg
Climate contribution
EUR 0,75

Product dimensions

Length
73 mm
Width
22.50 mm
Height
90 mm
