Access points
EUR100,31
Alfa Network TUBE-2HP F FULL PACKAGING - 802.11n outdoor AP / CPE, with standard PoE + APOE48V-1G
Best selling Access points from Alfa Network
On this page you’ll find a ranking of the best Access points from Alfa Network. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Alfa Network TUBE-2HP F FULL PACKAGING - 802.11n outdoor AP / CPE, with standard PoE + APOE48V-1G
The TUBE-2HP F Full Packaging from Alfa Network is a powerful outdoor access point designed for a variety of outdoor applications. Supporting the 802.11n standard, this device provides a reliable wireless connection with data rates of up to 150 Mbps. It can be used in both Access Point and Client Bridge modes, making it a flexible solution for different network architectures. The access point is IP68 certified, meaning it is dust-tight and waterproof, making it ideal for use in extreme weather conditions. The complete package includes not only the access point but also a PoE adapter and an AC cable, which simplifies installation. With an operating temperature range of -20°C to 65°C and high humidity tolerance, the TUBE-2HP F is suitable for a variety of environments and offers robust performance.
- Versatile operating modes: AP, Client Bridge, WDS Bridge, and more
- High security standards with WPA2-PSK and 802.1x authentication
- Power supply via PoE with 802.3at/af standard
- Sturdy construction with IP68 protection for outdoor use
- Expandable functionality through support for omni antennas.
2. Alfa Network UBDO-NT8 - 802.11b/g/n Super Long-Range Outdoor USB Radio with 12 dBi Antenna
The UBDO-NT8 is a powerful outdoor USB radio access point based on Wi-Fi standards 802.11b/g/n. With an impressive range and a 12 dBi antenna, it enables the establishment of a stable wireless network with speeds of up to 150 Mbps in the 2.4 GHz band. This device is ideal for outdoor use and offers easy installation by simply connecting it via a USB cable to a laptop or desktop. The UBDO-NT8 comes with a user-friendly utility that makes scanning and storing preferred networks easy. Additionally, it supports various security protocols to ensure a secure connection. With its robust construction and ability to operate in different environments, the UBDO-NT8 is an excellent choice for anyone seeking a reliable and powerful outdoor Wi-Fi solution.
- High range due to 12 dBi panel antenna
- Supports speeds up to 150 Mbps
- Easy installation via USB connection
- Versatile security protocols for secure access.
Access points
−19%
EUR53,90 was EUR66,90
Alfa Network UBDO-NT8 - 802.11b/g/n Super Long-Range Outdoor USB Radio with 12 dBi Antenna

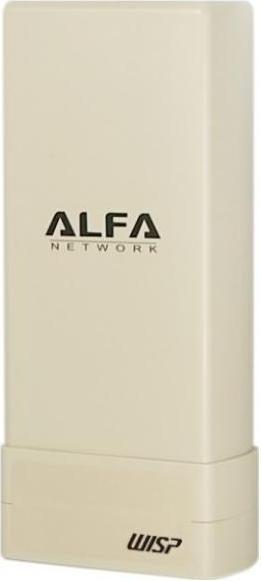

3. Alfa Network WISP-NSR - 11b/g/n Outdoor CPE, 2.4GHz
Alfa Network - WISP-NSR 11b/g/n Outdoor CPE
WISP-NSR is a low-cost 802.11n outdoor AP/CPE operating in the 2.4 GHz band and is compliant with the IEEE 802.11b/g standard. It features a built-in 9 dBi high-gain panel antenna, making it suitable for CPE and PTP environments without the need for an external antenna. WISP-NSR supports passive PoE, allowing for quick and simple installation without environmental limitations.
Features
- High-speed data rates: Providing faster data rates of up to 150 Mbps and compatible with legacy 802.11b/g equipment.
- Advanced robust security firewall: With SPI to protect the internal host from hacker attacks. Wireless security is comprehensive and includes WPA/WPA2 PSK.
- Feature-rich: WDS, Dual SSIDs, Static Routing, QoS, and more.
Standard: IEEE 802.11b/g/n
Operation modes:
- Router
- Bridge
- Wireless ISP
Antenna: 9 dBi panel antenna
Frequency band: 2.400 ~ 2.484 GHz
Security:
- 64/128 bit WEP
- WPA (TKIP with IEEE 802.1x)
- WPA2 (AES with IEEE 802.1x)
- WPA Mixed
Data rate:
- 802.11n (40 MHz): up to 150 Mbps
- 802.11n (20 MHz): up to 72 Mbps
- 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
- 802.11b: 11, 5.5, 2, 1 Mbps
Sensitivity:
- 802.11b: -90
- 802.11g: -75
- 802.11n: -71
Interface:
- WAN x1
- LAN x1
TX power: 20 dBm
Power source: 12 V passive PoE
Operation temperature: -20°C ~ 60°C
Storage humidity: 10% ~ 90% (non-condensing)
Dimension: 93 x 70 x 26 mm
Weight: 74 g.
4. Alfa Network APAG05-2 - 2.4 GHz 2000 mW Outdoor Booster
Alfa APAG05-2 - Wi-Fi Signal Outdoor Booster
The APAG05-2 signal amplifier is a highly efficient and compact unit designed to increase the power and range of 2.4 GHz wireless devices. This includes Bluetooth, P2P, P2MP, 802.11b, 802.11b+, 802.11g, and 802.11b+g access points as well as WLAN routers.
The APAG05-2 expands the signal range to achieve greater coverage of the deployed wireless devices under certain conditions. This eliminates the need for an additional router or access point with extra data lines, power outlets, signal interference, and setup headaches.
The APAG05-2 is a quick and easy way to extend your signal range in any environment. Alternative antennas (e.g., for directional radio) can be easily attached via the N connector on the booster.
Features:
- High-speed power gain controller
- High gain and low noise
- Power supply via DC injector
- Low power consumption
- Low heat generation
- Lightweight
Applications:
- WLAN 802.11b, 802.11b+
- WLAN 802.11g
- WLAN 802.11n
- Bluetooth
- Digital Spread Spectrum over the ISM band
Absolute limit data:
- Supply voltage: 15 V
- Rx input power: -10 dBm
- Tx input power: +23 dBm
- Operating temperature: -10°C to +50°C
- Storage temperature: -40°C to +90°C
Model: APAG05-2
Frequency band: 2.4 to 2.5 GHz
Signal type: OFDM and DSSS
Switching time: Rx max. input power: -10 dBm
Rx power gain: 23 dB max.
Tx input power: 5 to 20 dBm
Supply voltage: DC 12 V / 1 A
Tx linear output power: 2 W (at) 11b
RF connector type: N female
Operating temperature: -10°C to +40°C
Storage temperature: -40°C to +90°C
Connections: N-standard
Dimensions of the booster (including connectors and mounting):
- Height: 3.7 cm
- Length: 12 cm
- Width: 14 cm
Dimensions of the injector (including connectors and mounting):
- Height: 8 cm
- Length: 4.5 cm
- Width: 2.5 cm
Note:
According to the regulations applicable in Germany, the effective isotropic radiated power (EIRP) of a WLAN device must not exceed 20 dBm (100 mW).
5. Alfa Network G2N - Long-Range 802.11n Outdoor WISP AP/CPE
The Alfa G2N is a powerful 802.11n access point specifically designed for outdoor use. With a high range and data rates of up to 150 MBit/s, this device is ideal for providing wireless internet in expansive areas. The G2N supports various operating modes, including Gateway, Bridge, and WISP, making it a flexible solution for different network needs. The integrated 14 dBi antenna ensures improved signal strength and quality, while the adjustable RF output power allows for customization to specific requirements. The access point is also equipped with an RJ45 PoE LAN port, simplifying installation and eliminating the need for a separate power supply. The robust, UV-protected plastic housing ensures a long lifespan, even under challenging weather conditions.
- Supports multiple operating modes: Gateway, Bridge, and WISP
- High sensitivity with -96 dBm at 802.11b
- Adjustable RF output power for flexible use
- Security through WPA/WPA2 encryption and 802.1x authentication
- Robust, UV-protected housing for outdoor use.
6. Alfa Network UBDO-N8 - 802.11n Long-Range Outdoor USB AP/CPE
Alfa UBDo-n8 - 802.11n Long Range Outdoor USB AP/CPE
The UBDo-n8 is a long-range wireless 802.11n Outdoor USB AP/CPE with an 8-meter long USB cable. It allows users to create IEEE 802.11n wireless networks with speeds of up to 150 Mbps in the 2.4 GHz frequency band. Installation is simple; just plug the USB connector into your laptop or desktop to enjoy an internet connection. The UBDo-n8 also includes a handy utility for scanning available networks and saving preferred networks for easy access. Security encryption can be configured through this utility.
- Complies with Universal Serial Bus Rev. 1.0, 1.1, and 2.0 specifications
- High performance 2000 mW with integrated 12 dBi antenna for long ranges
- High data transfer rate of up to 150 Mbps at 802.11n
- Dynamic data rate adjustment at 1, 2, 5.5, and 11 Mbps for 802.11b as well as 6, 9, 12, 18, 24, 36, 48, and 54 Mbps for 802.11g
- Supports wireless data encryption with 64/128-bit WEP, WPA (TKIP with IEEE 802.1x), and AES features
- Compatible with Windows XP, Vista, Windows 7, Mac OS X, and Linux
- Supports automatic installation and diagnostic tools
- Standards: IEEE 802.11b/g/n; USB v1.0/1.1/2.0
- Cable length: 8 m
- Data rate: IEEE 802.11n 150 Mbps; IEEE 802.11g 54 Mbps; IEEE 802.11b 11 Mbps
- Output power: 32 dBm +/- 2 dBm
- Receive sensitivity: IEEE 802.11n -73 dBm (at HT20), -66 dBm (at HT40); IEEE 802.11g -76 dBm (at 54 Mbps); IEEE 802.11b -92 dBm (at 11 Mbps)
- Antenna connector: N-type socket
- Frequency range: USA, Canada 2.412 ~ 2.462 GHz (CH1 ~ CH11); EU 2.412 ~ 2.472 GHz (CH1 ~ CH13); Japan 2.412 ~ 2.484 GHz (CH1 ~ CH14)
- Security: 64/128-bit WEP encryption, WPA, WPA2, TKIP, AES
- Supported operating systems: Windows XP/2000/Vista, Windows 7, Linux, Mac
- Operating voltage: DC 5 V +/- 5%.
7. Alfa Network N5C - 802.11a/n Outdoor WLAN/AP 5 GHz, 2x RP-SMA Female
Alfa Network N5C 802.11a/n Long-Range Outdoor WLAN/AP Router 5 GHz, 2x RP-SMA Connector
(AP/Client/Router/WISP/Repeater)
The N5C is a cost-effective 802.11a/n outdoor router AP/CPE that operates in the 5 GHz band. The N5C is also compatible with the IEEE 802.11a standard.
The two external 2x RP-SMA (connector) ports allow for use with all types of applications and antennas. The N5C supports passive PoE and enables easy installation and setup through its intuitive software and LEDs on the exterior. The router is weather-resistant and suitable for outdoor use.
Included in the package:
N5C device
Installation manual
PoE adapter x1
Plastic strips x2
Model: N5C
CPU: Atheros AR7240
Flash: 8 MB
RAM: 32 MB
Interfaces: 2x RJ45 and 1x Reset
Antenna: 2x external RP-SMA (connector) ports
Output Power (dBm)
802.11a
6 Mbps, 29 +/- 2
9 Mbps, 29 +/- 2
12 Mbps, 29 +/- 2
18 Mbps, 29 +/- 2
24 Mbps, 29 +/- 2
36 Mbps, 27 +/- 2
48 Mbps, 25 +/- 2
54 Mbps, 24 +/- 2
802.11n
MCS0, 29 +/- 2
MCS3, 29 +/- 2
MCS8, 29 +/- 2
MCS9, 29 +/- 2
MCS12, 29 +/- 2
MCS15, 29 +/- 2
Sensitivity (dB)
802.11a
6 Mbps, -92
9 Mbps, -89
12 Mbps, -86
18 Mbps, -83
24 Mbps, -81
36 Mbps, -78
48 Mbps, -75
54 Mbps, -73
802.11n
MCS0, -94
MCS3, -87
MCS8, -93
MCS9, -91
MCS12, -82
MCS15, -73
Operating Modes
AP
Client
WISP
WDS Bridge
Software
Site Survey
Bandwidth Control
SNMP v1/v2 Support
Adjustable Output Power
Distance Adjustment
Radius (802.1x)
Mounting
Pole Mount (Standard)
Adjustable Mounting Angle (Optional)
Dimensions: 27.5 x 9.3 x 4.5 cm
Temperature:
Operating: -30°C to 75°C
Storage: -40°C to 80°C
Humidity:
Operating: 5 to 95%
PoE: 12 to 24 V depending on cable length
This item is subject to GPL v2.
Note: Operate the device in Germany only in the "ETSI" zone! According to the regulations applicable in Germany, the effective isotropic radiated power (EIRP) of a WLAN device must not exceed 20 dBm...
8. Alfa Network 802.11an 2x2 Outdoor AP/CPE w/14dbi antenna integrated
The Alfa SOLO-N5Q is a compact and powerful dual-band Wi-Fi antenna that supports both the 2.4 GHz and 5 GHz frequency bands. It is ideal for Alfa network adapters and routers, enhancing range and ensuring stable and reliable connections in wireless networks.
Highlights
- Dual-band Wi-Fi antenna (2.4 GHz and 5 GHz)
- Compact and efficient for flexible applications
- Optimized for Alfa network devices
- Improves signal quality and range
- Easy installation via RP-SMA connector
Technical Specifications
- Model: Alfa SOLO-N5Q
- Frequency ranges: 2.4 GHz / 5 GHz
- Antenna type: Omnidirectional
- Gain: up to 5 dBi
- Connector: RP-SMA plug
- Compatibility: Alfa Wi-Fi adapters, routers, and other devices with RP-SMA connector
Included in the package
- 1 × Alfa SOLO-N5Q Dual-Band Wi-Fi Antenna
The Alfa SOLO-N5Q offers a simple and reliable way to boost Wi-Fi networks. It combines a compact design with dual-band support, making it the perfect choice for home networks and professional applications.
9. Alfa Network N5Q /EU - 802.11an 5GHz Outdoor AP/Client/Bridge
The N5Q/EU is a versatile outdoor access point designed for various applications, including as an access point, client, and bridge. With support for the 802.11an standard, it enables high-speed data rates of up to 300 Mbps in the 5GHz range. The weatherproof design with an IP55 rating ensures reliable performance under various weather conditions. The N5Q/EU is also open-source compatible and supports OpenWrt firmware, allowing for flexible customization and expansion of features. Equipped with a hardware watchdog, the device ensures stable operation, while the enhanced ESD protection provides additional safety for both LAN and RF connections. With a built-in 10dBi directional antenna and various operating modes, the N5Q/EU is an ideal solution for demanding outdoor network environments.
- Weatherproof design with IP55 rating
- Open-source compatible with support for OpenWrt firmware
- High-speed data rates of up to 300 Mbps
- Versatile operating modes: AP Bridge, Client Bridge, WDS Bridge
- Enhanced ESD protection for LAN and RF.
10. Alfa Network N52Q-2S5F - 802.11ac WLAN Outdoor AP/CPE, w/o Antenna Integrated, w/RSMA
The N52Q-2S5F is a powerful outdoor access point/CPE that operates in both the 2.4 GHz and 5 GHz bands. With a high data transfer rate of up to 1200 Mbps, it provides a reliable and fast connection for various outdoor applications. The access point features a software-controlled PoE output, which simplifies installation and maintenance while saving costs. Thanks to the pre-installed OpenWrt firmware, users have the option to customize the software to meet their specific needs. The N52Q-2S5F is designed for use in extreme conditions and can withstand temperatures ranging from -40 °C to 65 °C, making it ideal for demanding environments. With the flexibility to use external antennas and an additional USB port, this device offers versatile applications.
- Dual-band support for 2.4 GHz and 5 GHz with simultaneous usage
- High data rate of up to 1200 Mbps
- Software-controlled PoE output to reduce costs in installation and maintenance
- Pre-installed OpenWrt firmware for individual customization
- Robust construction for use in extreme weather conditions.
Access points
EUR159,–
Alfa Network N52Q-2S5F - 802.11ac WLAN Outdoor AP/CPE, w/o Antenna Integrated, w/RSMA
867 Mbit/s
