1. Schalk Double relay
The monostable double relay RDS U1 was developed for general control technology. The creepage and clearance distance between the control inputs and the potential-free normally open contacts is 8mm, the creepage and clearance distance between the two normally open contacts is 3mm. Dimensions: 43x43x18.5mm, 230V AC.
2. Schalk Nachlaufrelais
Schalk overtravel relay UP with NR U3.

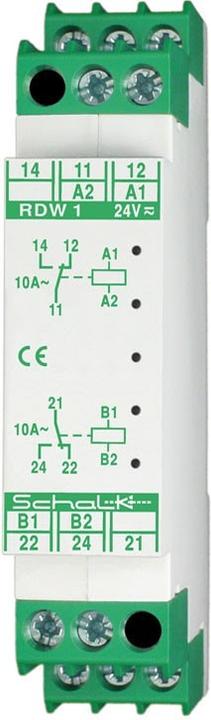

3. Schalk SCHAL RDW 1 Double relay 2 x 24V UC, 2 changeover contacts 10A
The Schalk RDW 1 double relay is a highly functional switching relay designed for applications with an output voltage of 24 volts DC. It features two separate magnetic systems that enable efficient switching while minimizing power loss. With two changeover contacts, each supporting an output current of up to 10 amperes, this relay is ideal for various electrical control and automation projects. Its compact dimensions of 18 x 55 mm make it easy to fit into different installations. The product is manufactured in Germany and offers reliable performance for demanding applications.
- Low power loss due to optimized design
- Two separate magnetic systems for improved efficiency
- Two changeover contacts with 10A output current each
- Compact design for versatile applications.
4. Schalk Mains monitoring relay

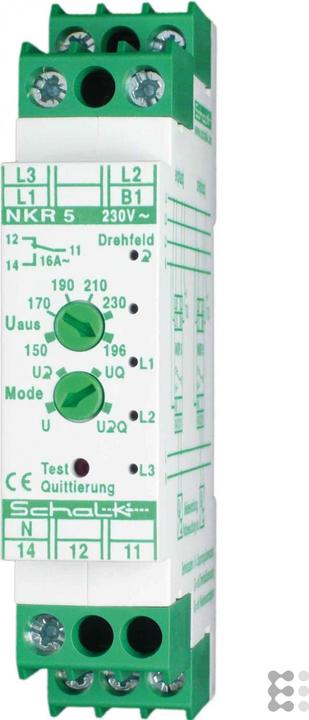

Schalk Network Monitoring Relay NKR 5
Manufacturer: Schalk
Designation: Network Monitoring Relay
Type: NKR 5
Electrical connection type: Screw connection
With removable terminals: no
1-phase undervoltage possible: yes
3-phase undervoltage possible: yes
1-phase overvoltage possible: no
3-phase overvoltage possible: no
1-phase window possible: no
3-phase window possible: no
Includes DC undervoltage function: no
Includes DC overvoltage function: no
Includes DC window function: no
Voltage measurement range 1: 150 to 230 V
Voltage measurement range 2: 196 V
Type of voltage in measurement range: AC
Rated control supply voltage Us at AC 50 Hz: 140 to 250 V
Rated control supply voltage Us at AC 60 Hz: 140 to 250 V
Type of voltage for actuation: AC
Response value voltage: 150 to 230 V
Min. adjustable response delay time: 0.5 s
Max. permissible response delay time: 0.5 s
Min. adjustable fallback delay time: 0 s
Max. permissible fallback delay time: 0.5 s
Number of contacts as changeover: 1
Width: 18 mm
Height: 88 mm
Depth: 55 mm
The network monitoring relays are used to monitor single-phase to three-phase networks. When used in a three-phase network, the phase position can also be monitored in addition to the voltage. The switching threshold can be freely set from 150 to 230 V or to a defined fixed value of 196 V (DIN VDE). The NKR 5 indicates the state of the phase voltages and the direction of rotation via 4 LEDs. A phase failure is visually indicated by a blinking LED. The relay either automatically switches back on after voltage recovery or only after acknowledgment by the internal or an external button (fault memory function). Dimensions: 18 x 55 mm, 230 V AC, 1 changeover contact 10 A potential-free, Uvar 150-230 V, Ufix 196 V.
5. Schalk Impulsschalter
The pulse switch from Schalk is a compact 24V UC switching relay designed for box installation. With a low power loss and two separate magnet systems, this relay offers a reliable switching solution for various applications. It has two potential-free changeover contacts, each of which can switch a current of up to 10 amps. The compact dimensions of 43x43x18.5 mm allow easy integration into existing systems. This product is ideal for use in automation technology and other electrical applications where precise control is required. Two separate solenoid systems for improved performance. Potential-free changeover contacts with 10A switching current. Compact design for easy box installation.
6. Schalk SCHAL MGR U2 Motor group relay 230VAC 2 CO contact 5A
Discover the Motor Group Relay MGR U2, a practical solution for electrically connecting up to 2 roller shutter or blind motors to a single control. With this relay, you can combine multiple motors into a single operable group without needing a separate control for each individual drive.
Simple and cost-effective, the MGR U2 provides 2 complete up/down outputs for the direct connection of 2 motors. This allows you to easily and affordably group your roller shutter or blind motors and control them conveniently together.
Reliable functionality: A mutual locking mechanism for the outputs ensures that only one direction of operation can be switched to the motors at any time. This guarantees reliable and safe operation of your roller shutters or blinds.
Flexible mounting options: The MGR U2 is designed for flush mounting and can be easily integrated into your existing electrical installation. Its compact dimensions of 43x43x18.5 mm allow for discreet integration into your spaces.
Technical details:
- Product group: Blind separation relay
- Central input: Yes
- Secondary input: Yes
- Number of connectable motors: 2
- Rated voltage: 230 V
- Rated current: 4 A
Installation note: Please be aware that non-plug-ready electrical devices or components that operate and are delivered at up to 400 V must be installed by a qualified electrical professional. Also, please read the operating instructions carefully to ensure safe installation.
Optimize the control of your roller shutter or blind motors with the Motor Group Relay MGR U2. Simplify your operation and benefit from an efficient solution for your applications. Order now and take your electrical systems to the next level.

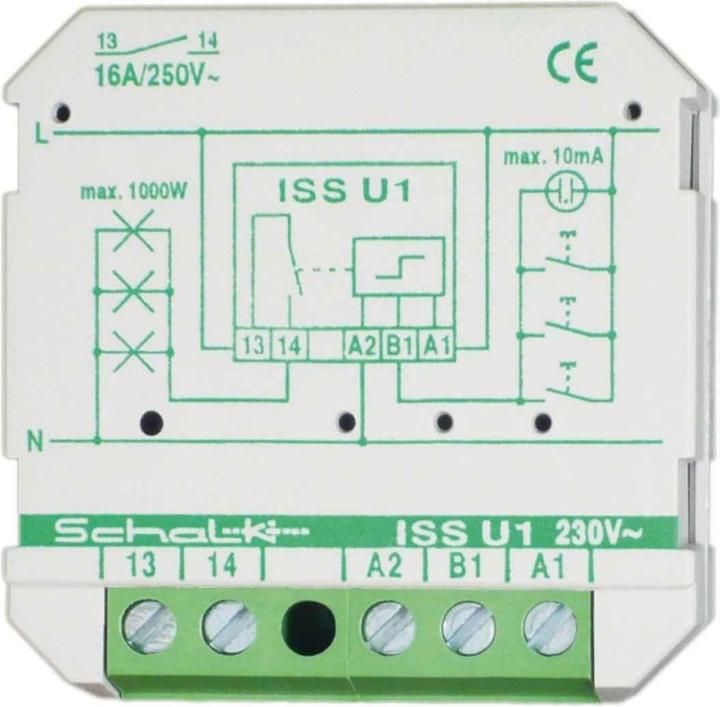

7. Schalk SCHAL ISS U1 Impulse switch 230V AC, 1 NO contact 16A (flush-mounted)
The electronically controlled impulse switches ISS and ISS U1 can be used without any issues in environments where conventional electromechanical relay switches are considered disturbingly loud, thanks to their very quiet switching behavior. The flush-mounted version ISS U1 230V AC is also suitable for easily retrofitting existing systems or for renovation of older buildings, and due to its compact dimensions, it can be installed in switch or junction boxes. Relay contacts normally open, potential-free, 10A 250V AC, dimensions: 43x43x18.5mm ISS U1.
8. Schalk Isolating relay
Schalk Active Isolation Relay ATR U2
Manufacturer: Schalk
Designation: Active Isolation Relay 1W, 230V AC/24V DC PELV
Type: ATR U2
Electrical connection type: Screw connection
With removable terminals: no
Rated current: 10 A
Rated control supply voltage Us at AC 50 Hz: 207..253 V
Rated control supply voltage Us at AC 60 Hz: 207..253 V
Rated control supply voltage Us at DC: 24 V
Voltage type for actuation: DC
Switching behavior of the actuator: monostable
Number of contacts as changeover: 1
With forced-guided contacts: yes
Type of switching contact: Single contact
With LED indicator: yes
Width: 43 mm
Height: 43 mm
Depth: 18.5 mm
The ATR U2 allows for the simplest control of mains voltage consumers through low voltage contacts. A power supply for actuating the relay coil is not required, as the ATR U2 internally generates the necessary control voltage (24V DC PELV). In conjunction with the magnetic contact MKW 1, it is thus possible to implement a supply air monitoring system, often required for enclosed spaces, when operating exhaust fans with minimal effort. However, due to the 10A changeover contact, the ATR U2 is also very versatile for other applications. Dimensions: 43x43x18.5 mm, 230V AC - 1W 10A.
9. Schalk Overtravel relay
Schalk Delay Relay with NR 3
Manufacturer: Schalk
Designation: Delay Relay with Switching Delay
Type: NR 3
Electrical Connection Type: Screw Connection
Suitable for DIN Rail Mounting: Yes
Delayed Response Function: Yes
Delayed Drop-out Function: Yes
Time Range: 0.3 to 1800 s
Remote Control Possible: Yes
Rated Control Supply Voltage at AC 50 Hz: 207 to 253 V
Rated Control Supply Voltage at AC 60 Hz: 207 to 253 V
Voltage Type for Actuation: AC
Number of Outputs, Undelayed, Changeover: 1
Number of Outputs, Delayed, Changeover: 1
Outputs, Switchable Delayed/Undelayed: Yes
Rated Current: 16 A
Width: 18 mm
Height: 58 mm
Depth: 55 mm
The NR 3 delay relay is an electronic timer switch with relay output for the delayed switching on and off of secondary consumers (e.g., for fan control in bathrooms/WCs, etc.). If needed, the relay can also be used as a pure switching delay without a delay time. With its switchable operating modes and adjustable run times over a wide range, the NR 3 relay can be used very flexibly. Dimensions: 18x55 mm, 230 V AC - 1 Changeover (potential-free) 10 A. EAN: 4046929801096.

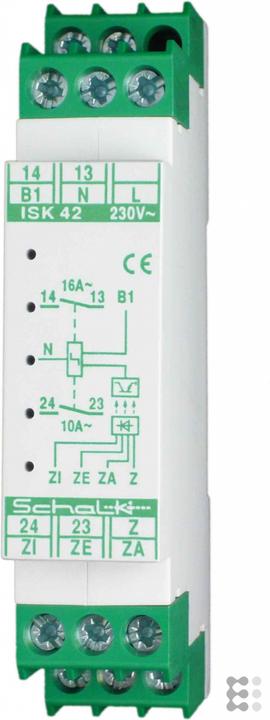

10. Schalk Central pulse switch
In electrical installations with multiple sub-distributions and residual current circuit breakers, an economical central on-off control can be established using the specially designed devices ISK 41 and ISK 42. The central control inputs are galvanically isolated from the supply side inputs and can be operated with voltages ranging from 8-230V AC or DC. The ISK 42 additionally features a second potential-free relay contact (10A normally open) and a central pulse input. Dimensions: 18x55mm, 230V AC - 2S pf 16/10A.
