Bushing part RST® CLASSIC series
More than 10 items in stock at supplier
Product details

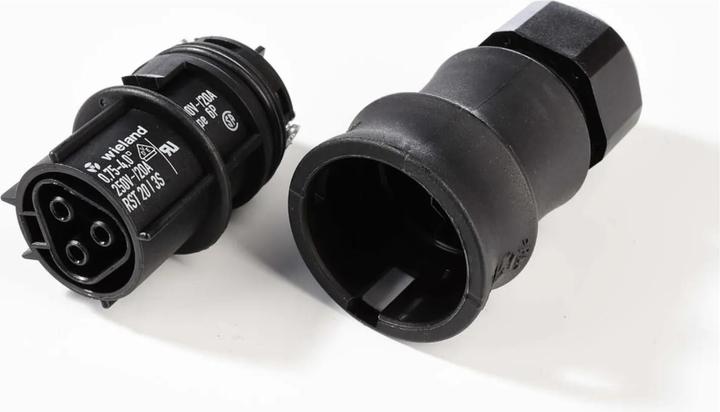

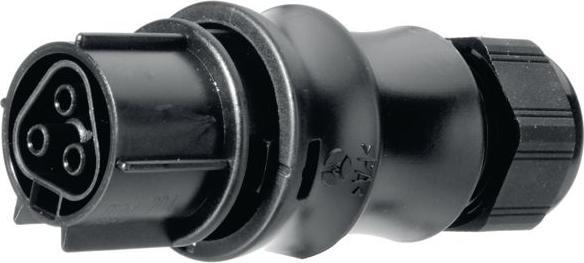

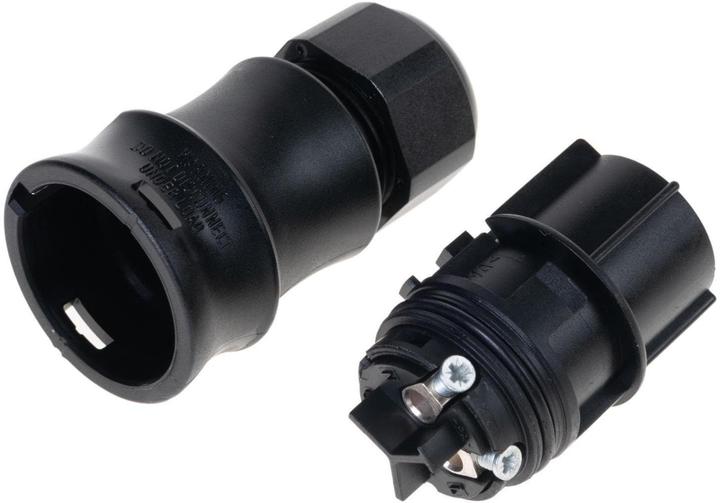

The RST® CLASSIC series connector from Wieland Verlag is a high-quality mounting plug designed for a wide range of applications. With a rated voltage of 250 V and a rated current of 20 A, this 3-pole connector provides a reliable connection for electrical systems. The screw terminals allow for easy and secure installation, while the IP protection classes IP66 and IP68 ensure effective protection against dust and water. The connector is suitable for cable diameters of 6 to 10 mm and is made from robust plastic, enhancing the product's durability and resilience. The self-locking feature and integrated strain relief provide additional safety and stability in use. This product is ideal for use in demanding environments where reliability and safety are of utmost importance.
- 3-pole mounting plug with screw terminals
- Protection classes IP66 and IP68 for high resilience
- Suitable for cable diameters of 6-10 mm
- Rated voltage of 250 V and rated current of 20 A
- Robust plastic material with self-locking function.
Connection type | Male plug |
Exact colour description | Black |
Item number | 8449458 |
Publisher | Wieland |
Category | Power plugs + connectors |
Manufacturer no. | 99.448.6046.6 |
Release date | 25-2-2019 |
External links |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | Plastic |
Connection type | Male plug |
Nominal voltage | 250 V |
Nominal current | 20 A |
Number of cores | 3 x |
Protection type (IP code) | IP68 |
CO₂-Emission | |
Climate contribution |
Length | 90 mm |
Width | 35 mm |
Height | 35 mm |
Weight | 60 g |
