Hensel Cable junction box

Price in EUR including VAT
Ratings
BrandMore from Hensel
Delivered between Fri, 8-8 and Sat, 9-8
Only 1 piece in stock at supplier
Free shipping starting at 30,–

Product details

Hensel Cable Junction Box DP 9221

Manufacturer: Hensel
Designation: Cable junction box 1.5-2.5 mm² 3ph. 4 mm²
Type: DP 9221
Max. conductor cross-section: 4 mm²
Fitting: Screw terminal
Shape: Rectangular
Mounting type: Wall/Ceiling mounting
For pipe diameter: Other
Rear entry: No

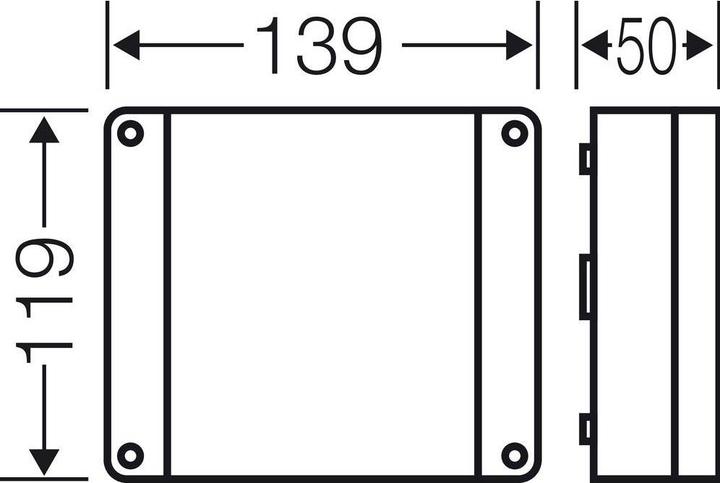

Length: 139 mm
Width: 119 mm
Depth: 49 mm
Stackable: No
Number of entries: 13
Type of housing entry: Pre-formed
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Gray
Protection class (IP): IP54
Cover design: Other
Cover fastening: Screwed
Pourable: No
Supplied with casting compound: No
Seal-able: Yes
Rated insulation voltage Ui: 690 V
Function maintenance: None
With shielding: No
Weather-resistant: No
Operating temperature: -25..40 °C
Explosion-proof version: No
For Ex-zone gas: None
For Ex-zone dust: None

Hensel Cable Junction Box DP 9221: Additional details
Cable junction boxes made of high-quality thermoplastic. Suitable for surface-mounted applications in buildings or protected outdoor installation, designed for cable duct and pipe installation. By cutting out the cable duct wall and using the included insert plug, cables can be inserted from the front without threading. Cover fastening with V2A screws. With screw terminals up to 2.5 mm², 5-pole.

Key specifications

Junction box type
Junction box
Height
119 mm
Width
139 mm
Protection type (IP code)
IP54
Length
139 mm
Item number
17941367

General information

Manufacturer
Hensel
Category
Junction box
Manufacturer no.
6000041
Release date
16-12-2021

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
Polystyrene (PS), Thermoplastic resin

Junction Box Features

Junction box type
Junction box
mounting style
Finery
Area of use
Inside

Safety

Protection type (IP code)
IP54

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
2 pcs.

Product dimensions

Height
119 mm
Width
139 mm
Length
139 mm
Diameter
50 mm
