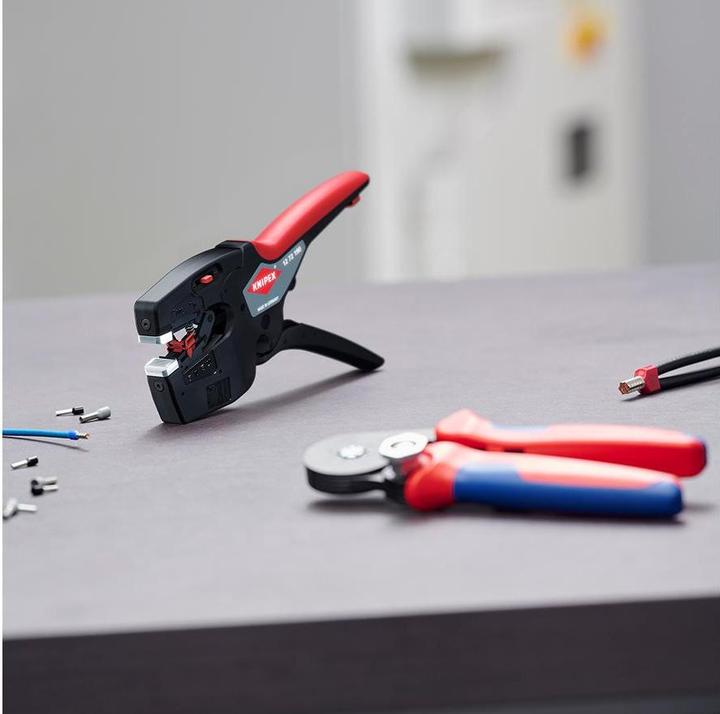

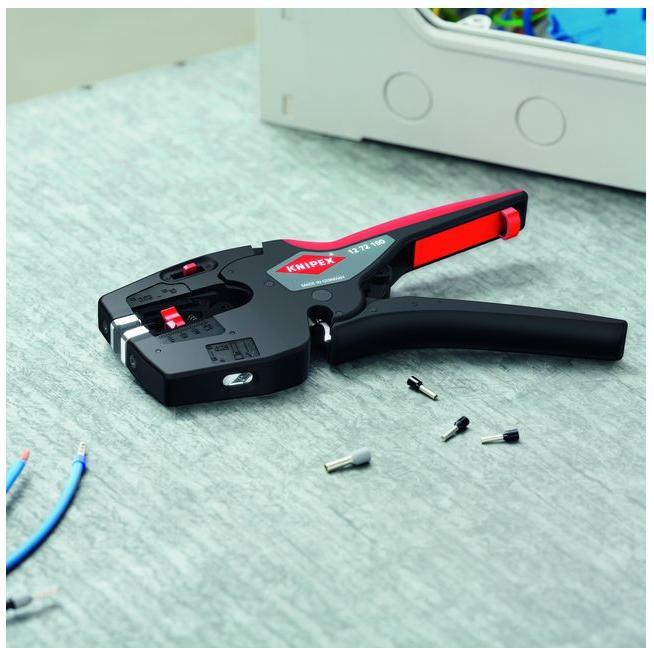

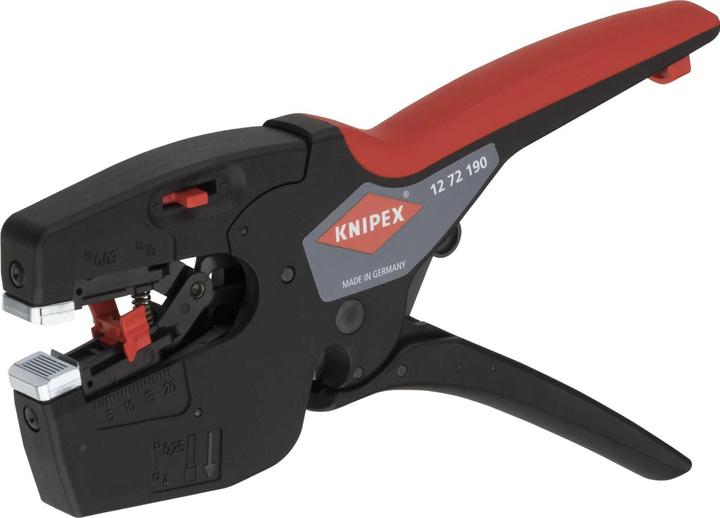

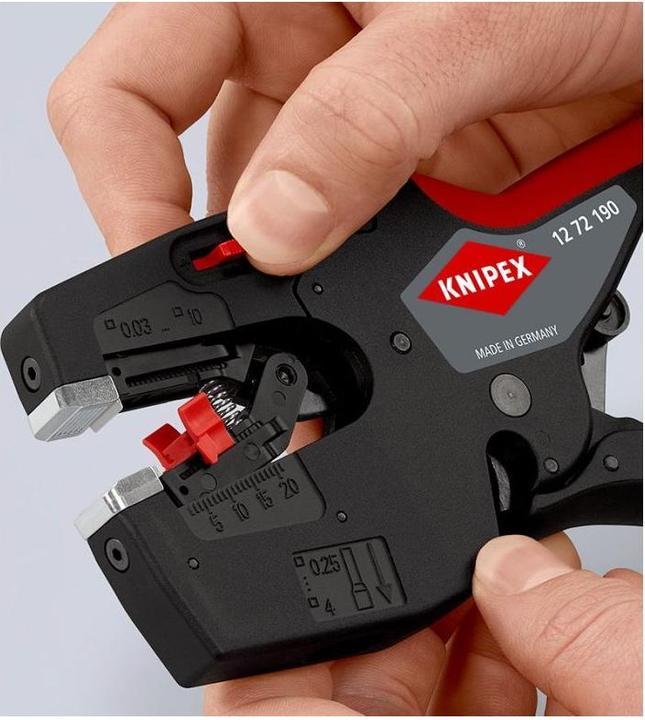

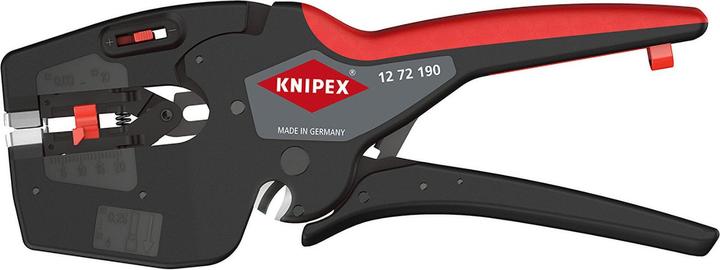

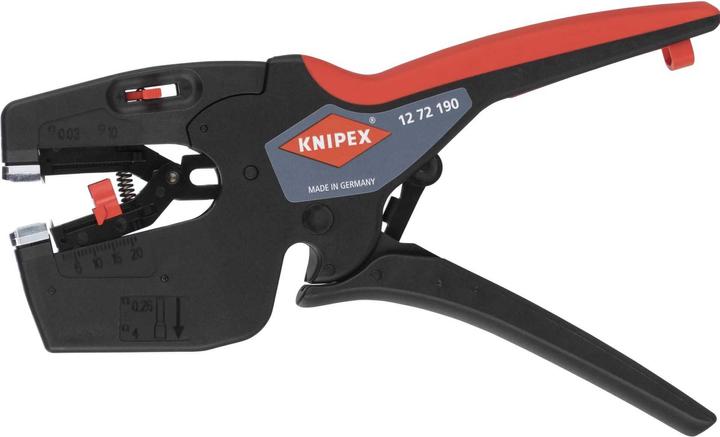

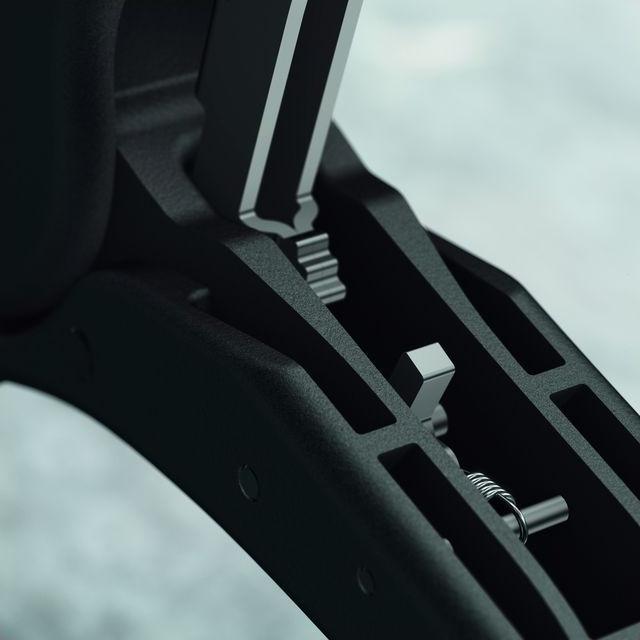

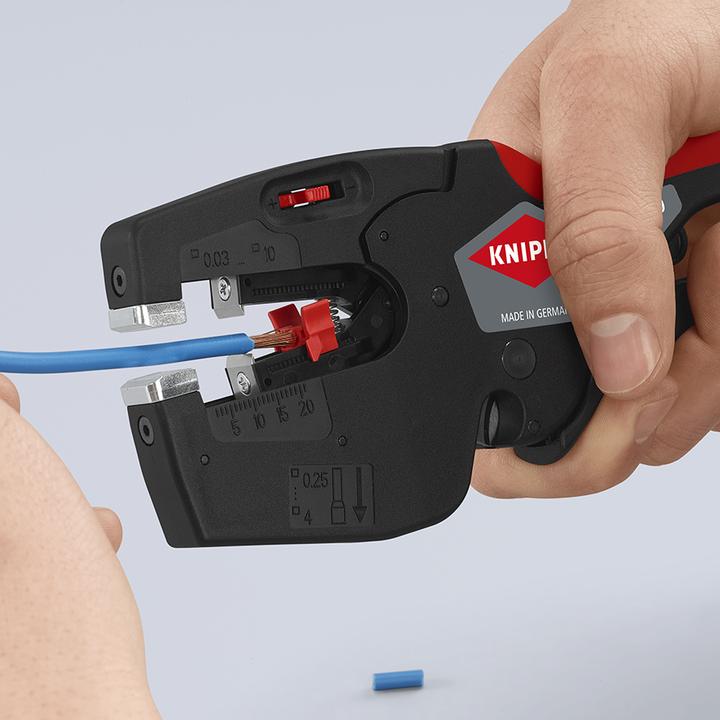

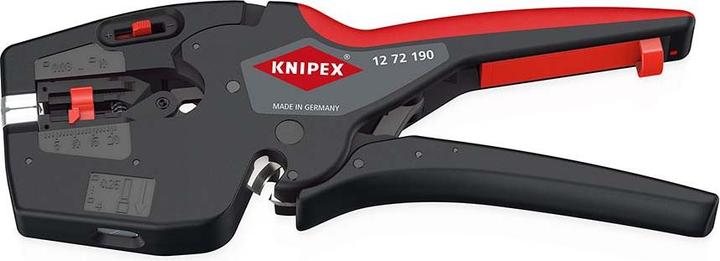

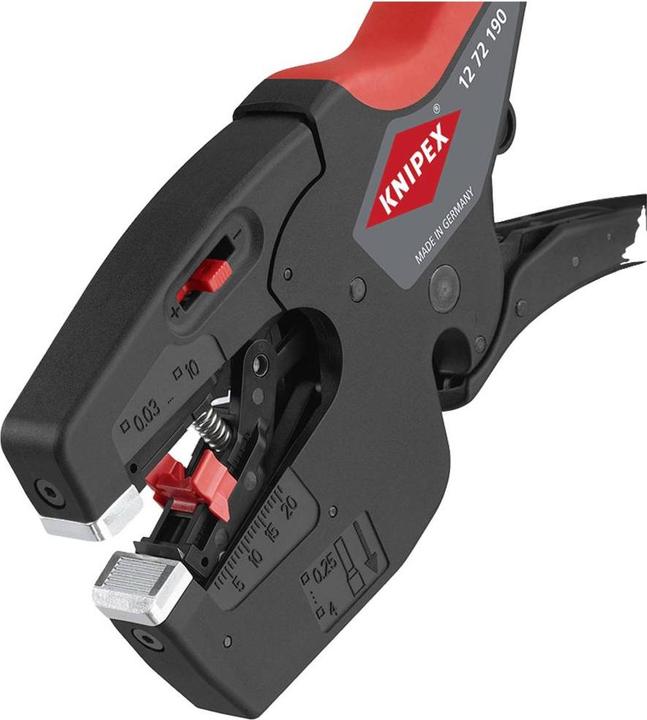

The Knipex NexStrip 12 72 190 offers perfect crimping with fast and uniform square crimping for individual wire end sleeves. The ratchet mechanism ensures the necessary crimping pressure. It features precise stripping that automatically adjusts to the respective cable diameter and guarantees consistent stripping lengths with the adjustable length stop, which is particularly useful for repetitive tasks. The multi-component handles provide a non-slip, comfortable grip.

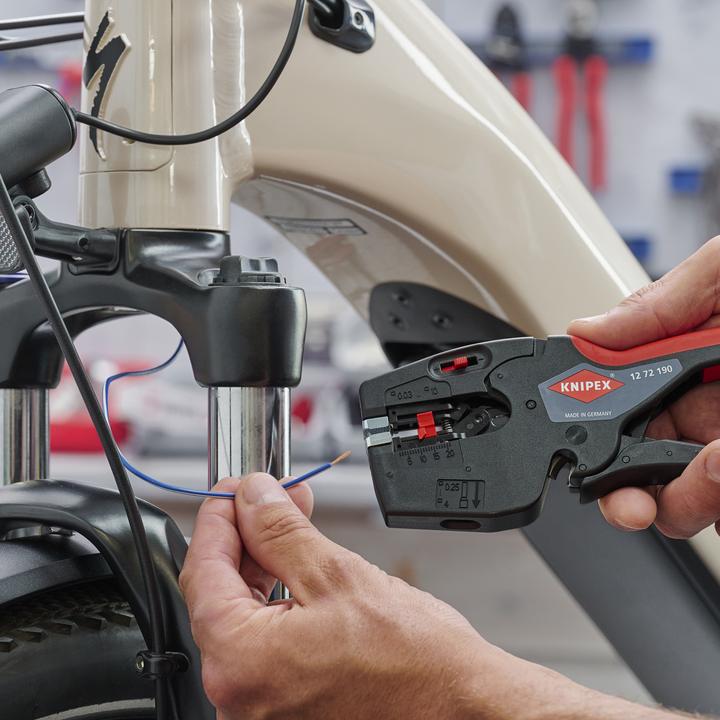

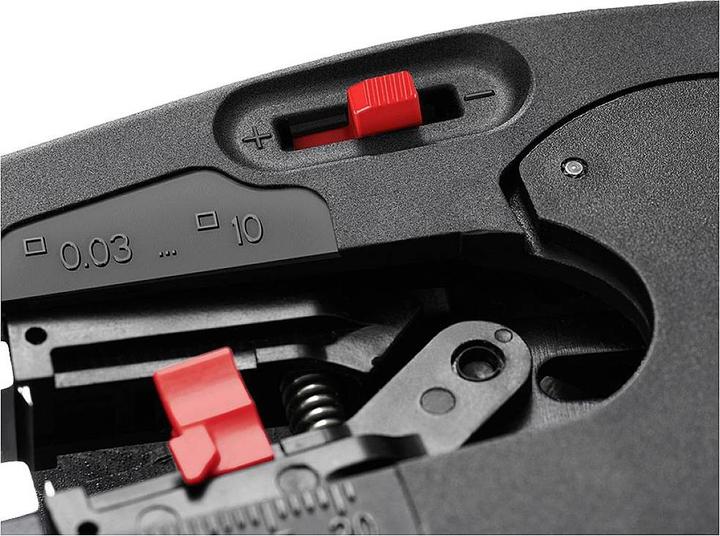

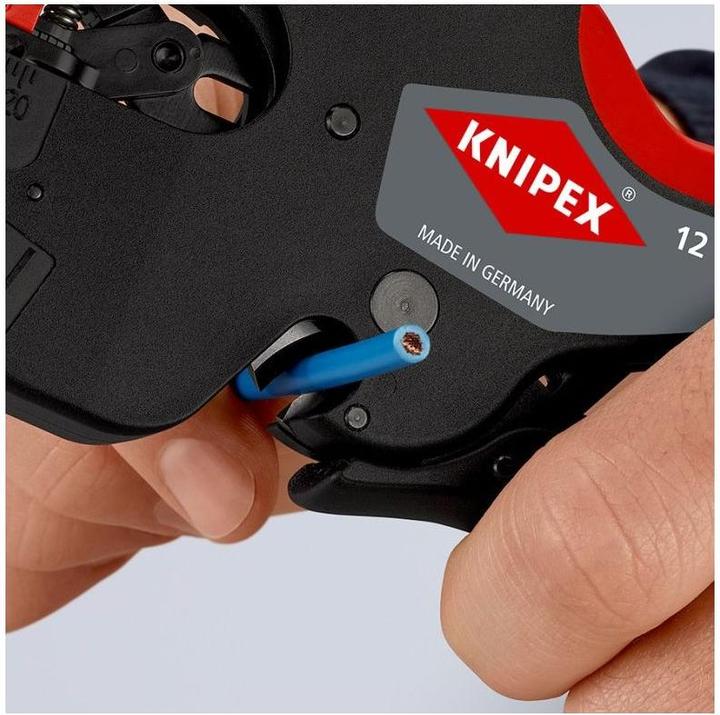

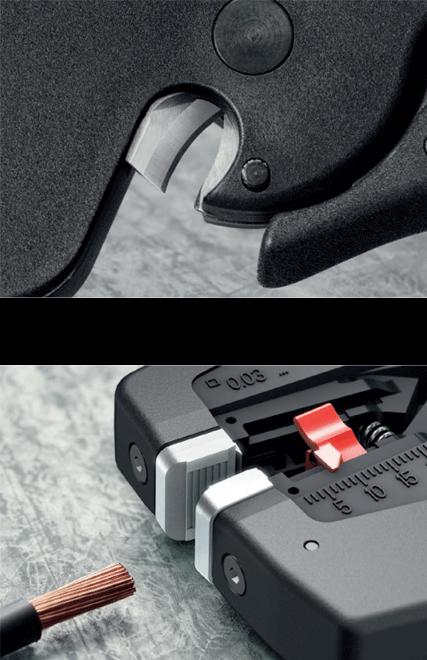

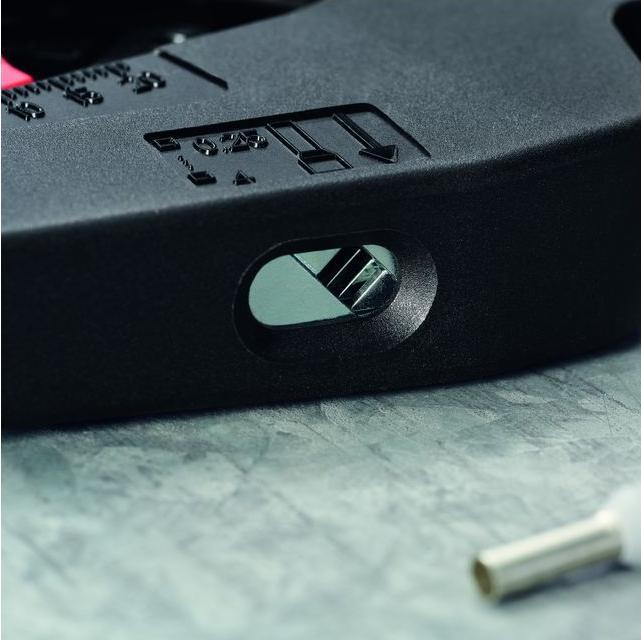

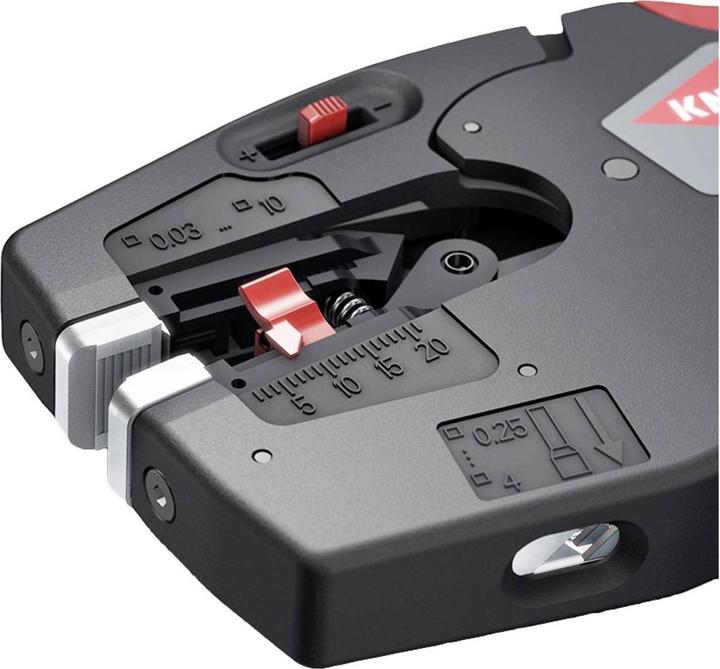

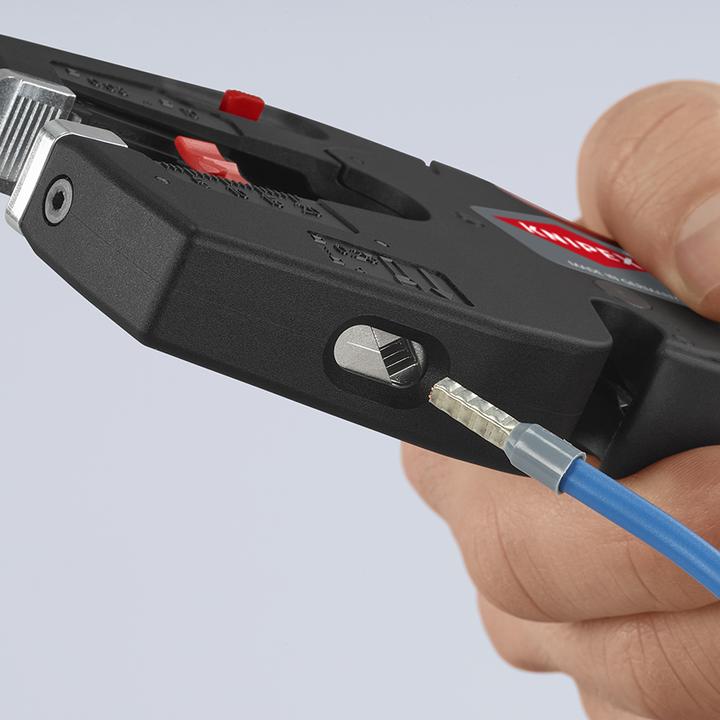

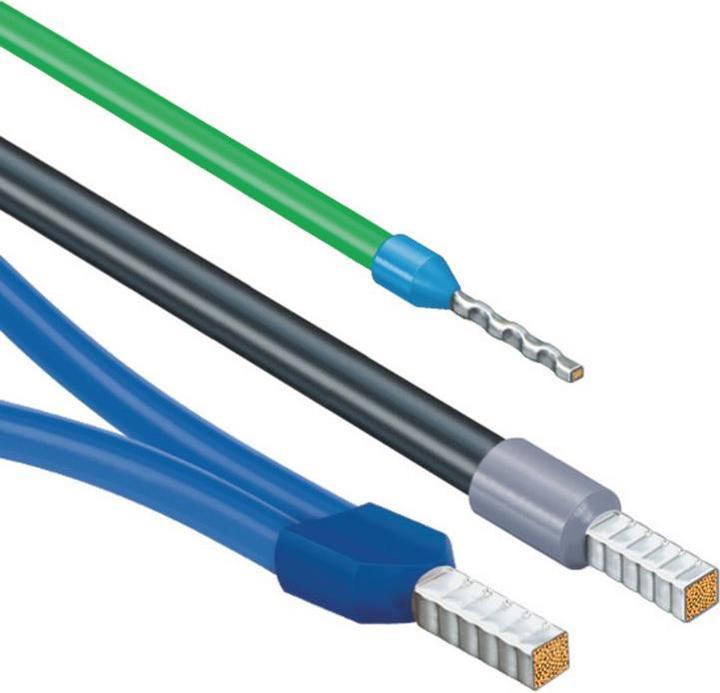

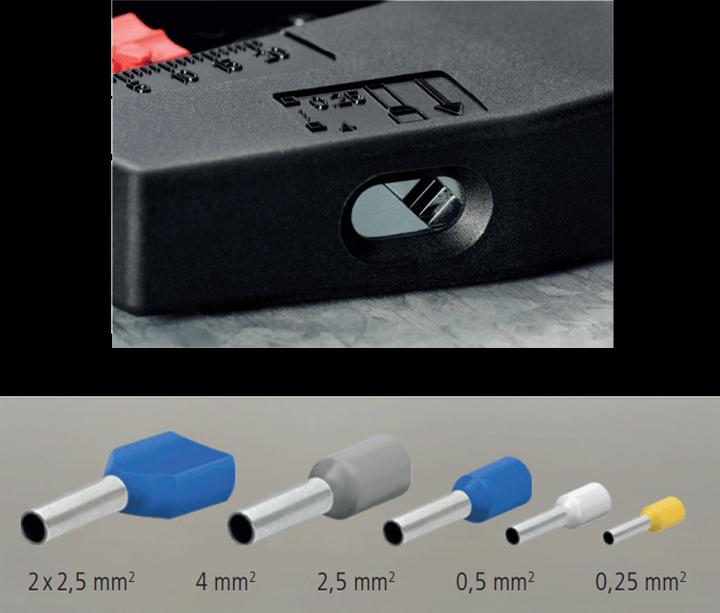

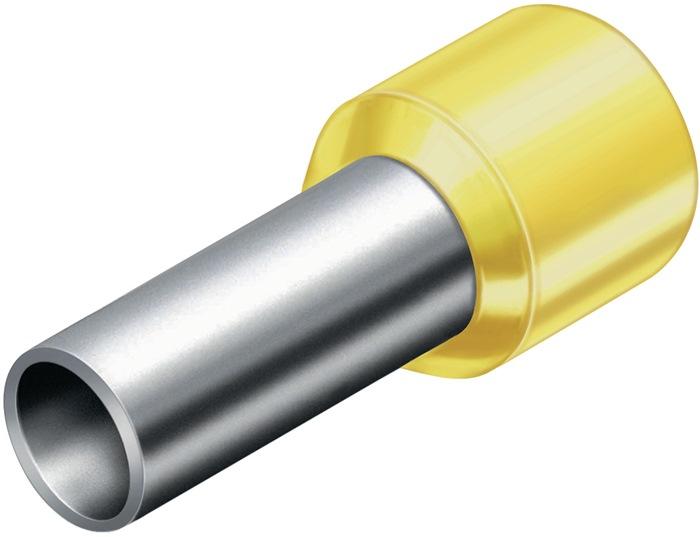

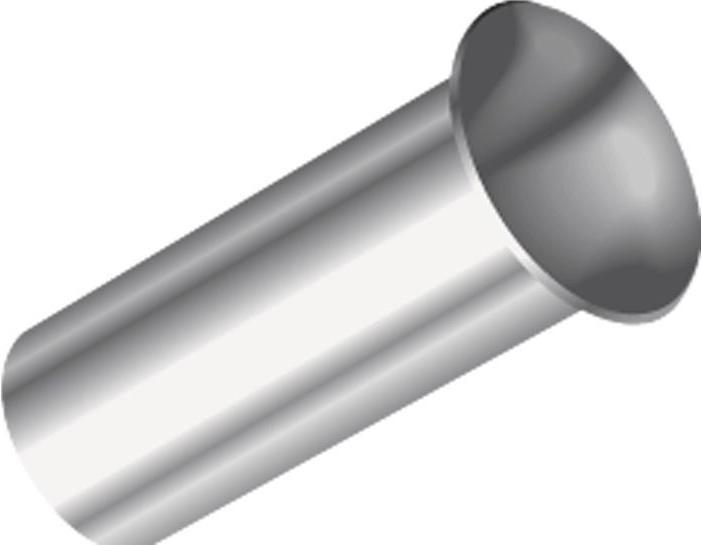

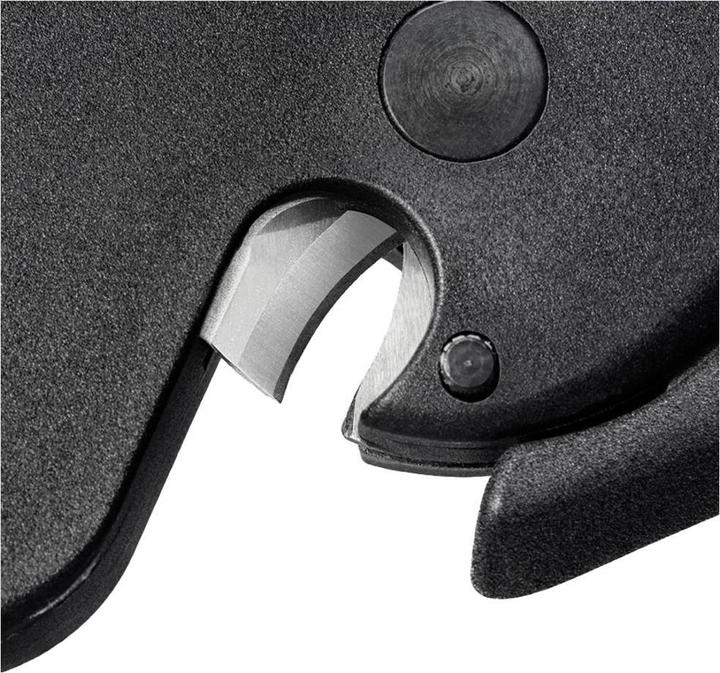

This tool enables quick, precise square crimping of individual wire end sleeves according to DIN 46228 Parts 1 and 4, self-adjusting for sizes from 0.25 to 4 mm² and 2 x 2.5 mm², allowing for fast crimping between different sizes. It ensures repeatable, high crimp quality thanks to the ratchet mechanism with a complete crimp cycle. The stripping function includes fine adjustment for optimal adaptation to specific materials or temperature conditions for flexible and rigid conductors between 0.03 and 10 mm² (AWG 32-8). It cleanly cuts conductors up to 10 mm² (AWG 8).

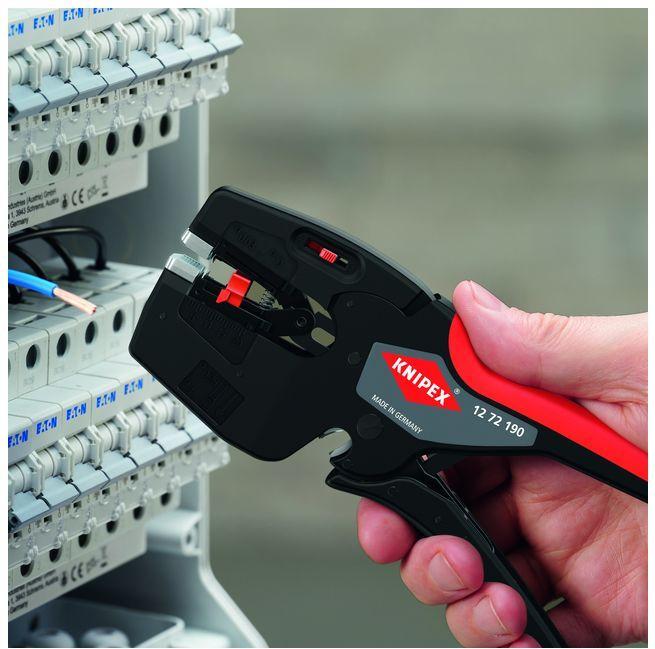

The high-quality housing is made of fiberglass-reinforced plastic. This tool is ideal for electrical work, suitable for home installations and wiring of electronic devices, such as programmable controls. It serves as a stripper with three functions: stripping wires up to 10 mm², crimp capacity of 4 mm² or 2 x 2.5 mm², and cutting capacity of 10 mm².
