OBO Bettermann Floor socket

Price in EUR including VAT
Ratings
BrandMore from OBO Bettermann
Delivered between Sat, 12-7 and Thu, 17-7
Only 1 piece in stock at supplier
free shipping

Product details

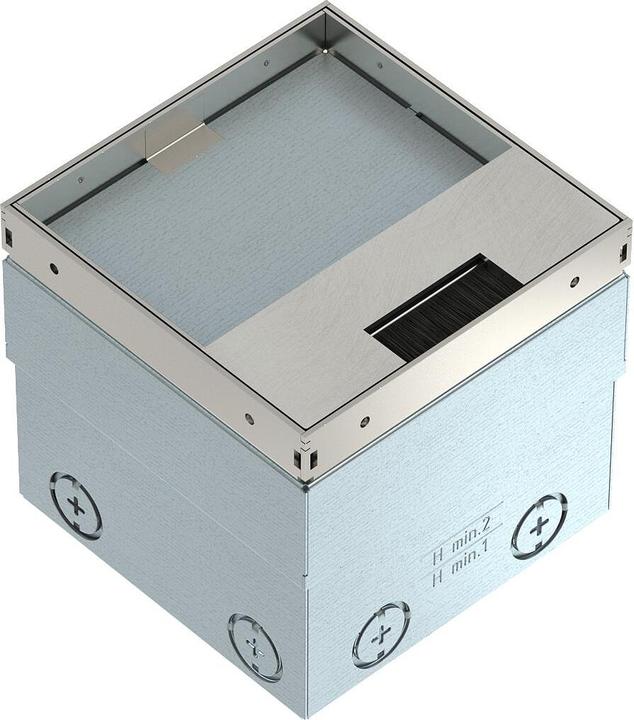

Square floor socket for use in dry-maintained hollow floors and screed floors indoors. Installation housing with pre-formed entry openings for pipes (M20/M25). The upper part is adjustable via 4 leveling supports to the top edge of the floor covering. The minimum installation depth is 110 mm, with a leveling range of +25 mm. The frame and cover visible in the floor covering are made of stainless steel. The cover features a recess for the floor covering and a brush outlet for cable routing. The load capacity of 15 kN is only guaranteed in an unused state. Empty housing for up to 2 Modul 45® installation devices in the mounting bracket and 2 data sockets in the optional data technology carrier.

Key specifications

Junction box type
Connector socket
Width
144 mm
Protection type (IP code)
IP20
Length
144 mm
Item number
47461192

General information

Manufacturer
OBO Bettermann
Category
Junction box
Manufacturer no.
7368353
Release date
29-7-2024

Material

Material group
Metal
Material
Stainless steel

Junction Box Features

Junction box type
Connector socket
Area of use
Inside

Safety

Protection type (IP code)
IP20

Origin

Country of origin
Hungary

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Width
144 mm
Length
144 mm

14-day cancellation right
30-day right of return
24 Months statutory warranty
