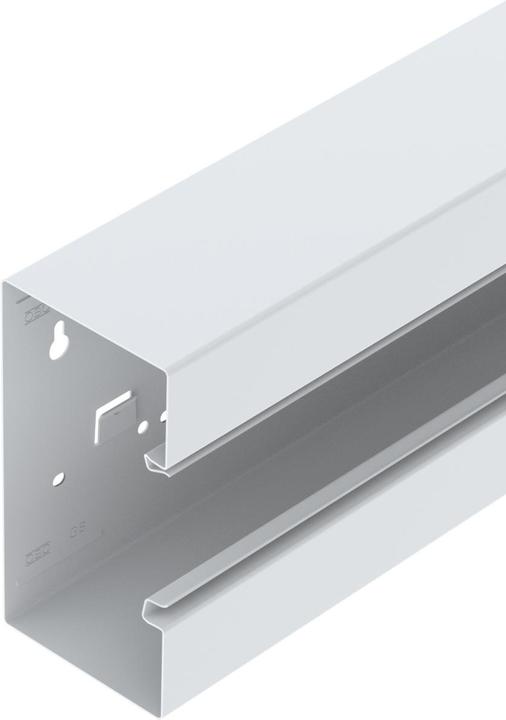

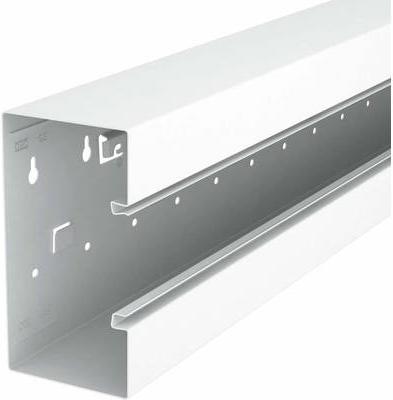

OBO Bettermann Device Installation Channel o. OT GS-S90170RW

Manufacturer: OBO Bettermann
Description: Device installation channel o. OT symmetrical
Type: GS-S90170RW

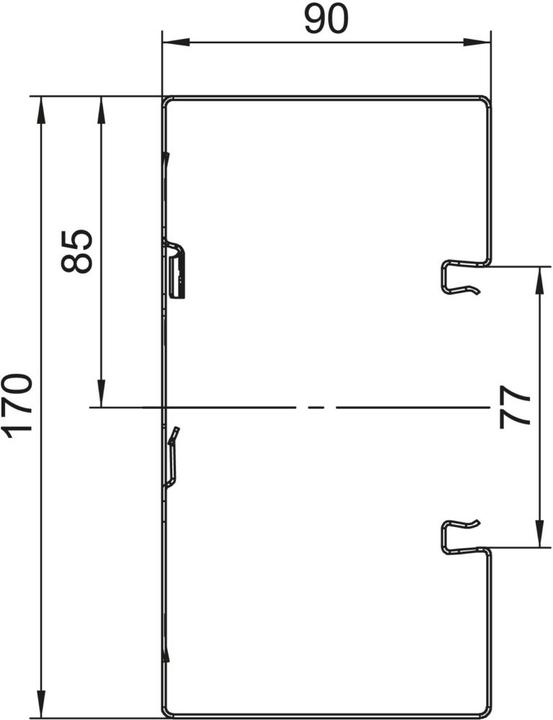

Width: 170 mm
Depth: 90 mm
Length: 2000 mm
Number of upper parts: 1
Upper parts included: no
Upper part width 1: 76.5 mm
Upper part width 2: 0 mm
Upper part width 3: 0 mm
Symmetrical: yes
Rectangular design: yes
Material: Steel
Material quality: other
Halogen-free: yes
Surface protection: untreated
Color: pure white
RAL number: 9010
Back wall design (inside): with locking tabs
With protective film: yes
Number of plug-in partitions: 1
With channel connector: no
Mounting holes in the bottom: yes
Mounting type of upper parts: recessed
With cable holding clip: no
Usable cross-section: 13450 mm²
Protection class (IP): IP30
Impact resistance: IK10
Operating temperature: -25..60 °C

The GS device installation channel for mounting on the wall or on mounting brackets features self-contacting locking tabs for accommodating a partition made of sheet steel. The potential equalization between the channel bases occurs via the coupling. The protective measure and potential equalization between the upper and lower parts are ensured by the patented self-contacting channel cover. The system opening measures a real 76.5 mm. The upper part must be ordered separately.
EAN: 4012195662518.
