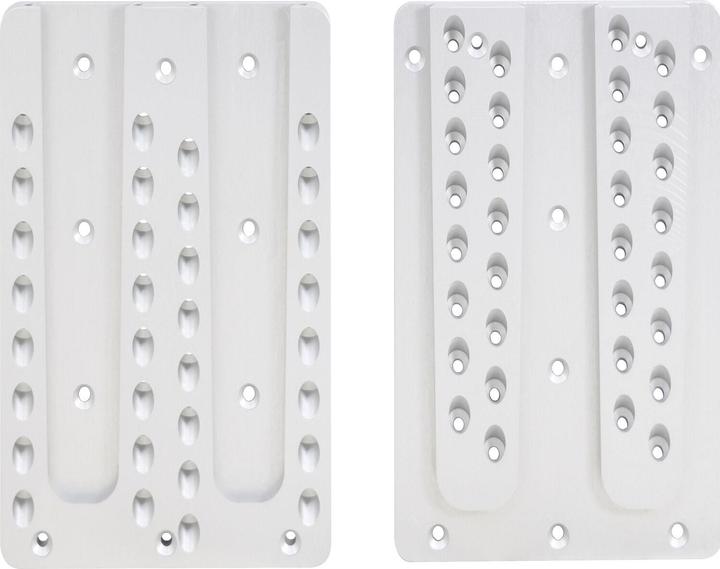

Double width for double load capacity. The perfect connection for square wooden cross-sections or wide beams with low height.

Fastening:
Connector width: 120-160 mm: Screw 5.0 x 60 - 100 mm full thread.
Connector width: 240 mm: Screw 8.0 x 100 - 200 mm full thread.

With European Technical Assessment (ETA 15/0187).

Double HVP connectors are delivered with lift-off protection. Includes 4 screws ISK M5 x 20, 2 lift-off protection plates. Accessories are packed together in a bag for each HVP.

Width (mm): 160
Surface: anodized
Type: 88322.2000
Holes (pcs): 84
Material thickness (mm): 12
Material: Aluminum
Shape: HVP
Length (mm): 220
Size (mm): 160 x 220 x 12
Designation: Wood connector Double HVP
Brand: Pitzl
Quantity (pcs): 1.
