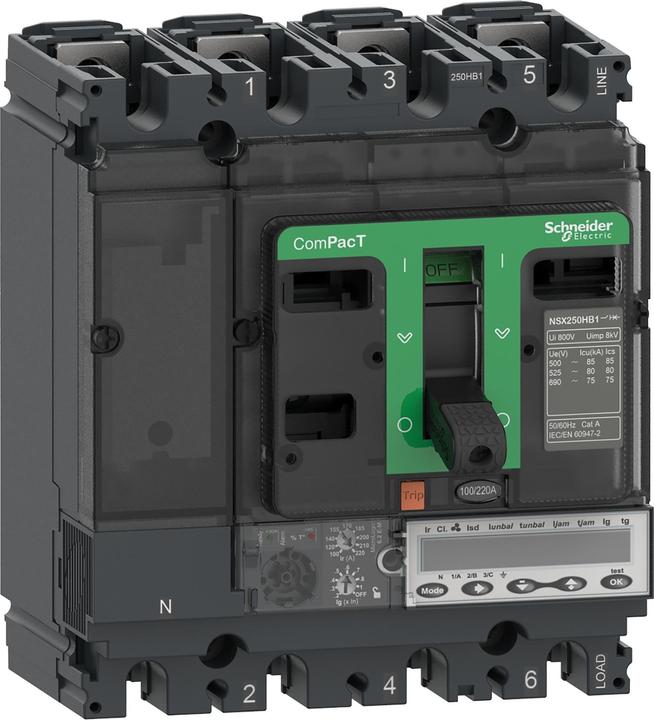

Schneider Electric Compact Circuit Breaker C10R36M080

Manufacturer: Schneider Electric
Designation: Compact Circuit Breaker ComPacT NSX100R with type: C10R36M080
Overload relay current setting: 35..80 A
Setting range of the instantaneous short-circuit release: 1200 A
With thermal protection: yes
Phase failure sensitive: yes
Release technology: electronic
Rated operational voltage: 690 V
Rated continuous current Iu: 80 A
Connection type main circuit: screw connection
Design of the operating element: other
Device design: built-in device fixed installation technology
With integrated auxiliary switch: no
With integrated undervoltage release: no
Number of poles: 3
Rated short-circuit breaking capacity Icu at 400 V, AC: 200 kA
Protection class (IP): IP40
Height: 161 mm
Width: 105 mm
Depth: 86 mm

The ComPacT NSX100R is a complete 3P 3d circuit breaker for fixed installation, designed to optimize space requirements and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 200 kA at 415 VAC 50/60 Hz and 45 kA at 690 VAC 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product features an electronic release device MicroLogic 6.2 E-M with a rated size of 80 A and adjustable earth fault protection (with OFF position). The MicroLogic 6.2 E-M release device offers adjustable long-time and short-time protection functions and a fixed instantaneous protection. MicroLogic 6.2 E-M has an integrated display for fine adjustment and energy meter display. This 3-pole version (105 mm x 161 mm x 86 mm) comes with a variety of optional functions and accessories. It complies with international standards (IEC 60947), CCC, EAC, and marine specifications. The ComPacT NSX100R is part of Schneider Electric's EcoStruxure Power architecture.
