Stahl 8146/1000-C923
Only 1 piece in stock at supplier
Product details

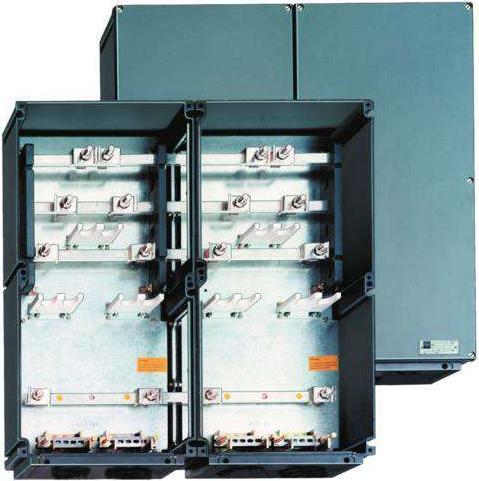

Stahl cable junction box 8146/1000-C923
Manufacturer: Stahl
Designation: Cable junction box 315/400A
Type: 8146/1000-C923
The cable end boxes in the R. STAHL Series 8146 comprise robust glass fibre reinforced Ex e enclosures. They are equipped with 35 to 185 mm² terminals. These are suitable for voltages up to 690 V, with a maximum rated operational current of 400 A depending on the enclosure version. The incoming and outgoing cables are fed into the enclosures via cable glands.
Specifications:
- Explosion-protected, Type: 8146/1000-C923
- AC rated operational voltage: 690 V
- Rated operational current, Connection cross-section: 185 mm²
- Enclosure material: Polyester resin, glass fibre reinforced
- Enclosure colour: Dark grey
- Dimensions (W x H x D): 681.5 x 681.5 x 150 mm
- Application range (zones): 1, 2, 21, 22
- Gas explosion protection: II 2 G Ex eb IIC T6....T5 Gb
- Dust explosion protection: II 2 D Ex tb IIIC T80 °C ....T95 °C Db
- Ambient temperature: -30 to +50 °C
- Silicone-free: No
Features:
- 12 pcs M12 bolt-type terminal 1-conductor, 185 mm²
- 4 pcs stud terminals M12 1-conductor, 185 mm², GN-YE
- 0 PE rail
- 0 equipotential bonding rail
- 0 mounting rail
- 4 pcs threaded holes without cable entry, M75
- Without flange
EAN: 4046827081163.
Junction box type | Junction box |
Length | 150 mm |
Item number | 34047297 |
Manufacturer | Stahl |
Category | Junction box |
Manufacturer no. | 136158 |
Release date | 17-5-2023 |
Colour | Grey |
Exact colour description | Dark grey |
Material group | Plastic |
Material | Glass fibre reinforced, Polyester resin |
Junction box type | Junction box |
Area of use | Outside |
Country of origin | Germany |
CO₂ emissions | 0,87 kg |
Climate contribution | EUR 0,12 |
Items per sales unit | 1 pcs. |
Length | 150 mm |
Product Safety |
