Wago Female connector

Ratings
BrandMore from Wago
Currently out of stock
Free shipping starting at 30,–

Product details

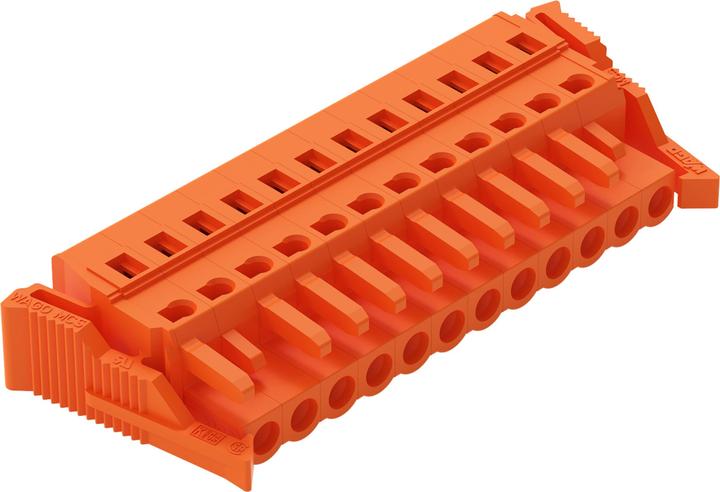

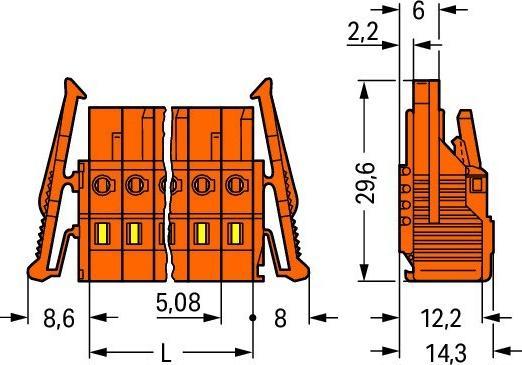

WAGO GmbH & Co. KG Female connector 231-316/037-000 Manufacturer :WAGO GmbH & Co. KG Designation :Female connector 16-pin. Type :231-316/037-000 Connection type :PCB to cable Contact design :Socket Number of poles :16 Number of rows of plug-in contacts :1 Contact pitch :5.08 mm Terminal pitch :5.08 mm Angle contact/conductor connection :180° (horizontal) Rated current In :16 A Rated voltage :320 V Rated impulse voltage :4 kV Overvoltage category :III Pollution degree :2 Connectable conductor cross-section fine-stranded without ferrule :0,08..2.5 mm² Connectable fine-stranded conductor cross-section with ferrule :0.25...21.5 mm² Connectable solid conductor cross-section :0.08...2.5 mm² Connectable conductor cross-section stranded :0.08..2.5 mm² Electrical connection type :spring-loaded connection Connectable cable type :round cable Material of contact coating :tin Material of contact :other copper alloys Material of insulating body :thermoplastic Material of enclosure :plastic Coating of enclosure :uncoated Enclosure colour :orange Flammability class of insulating material according to UL 94 :V0 With protective conductor :no Operating temperature :-60..85 °C Protection class (IP), mounted :IP20 WAGO GmbH & Co. KG Female connector 231-316/037-000: further details 1-conductor female connector CAGE CLAMP® 2,5 mm² Spacing 5,08 mm 16-pole lateral locking latches 2,50 mm² orange , EAN: 4044918349468.

Key specifications

Item number
36749915

General information

Manufacturer
Wago
Category
Cable joints
Manufacturer no.
231-316/037-000
Release date
28-6-2023

Colour

Exact colour description
Orange
Colour
Orange

Material

Material
Pewter
Material group
Metal

Cable connection Properties

Cable connection type
Terminal blocks
Clamps diameter
2.50 mm
Suitable for cable cross-section
5 mm²
Plug type
Gold-plated contacts

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Safety

Protection type (IP code)
IP20

Scope of delivery

Scope of delivery
037-000, Female multipoint connector 231-316
Items per sales unit
10 x
