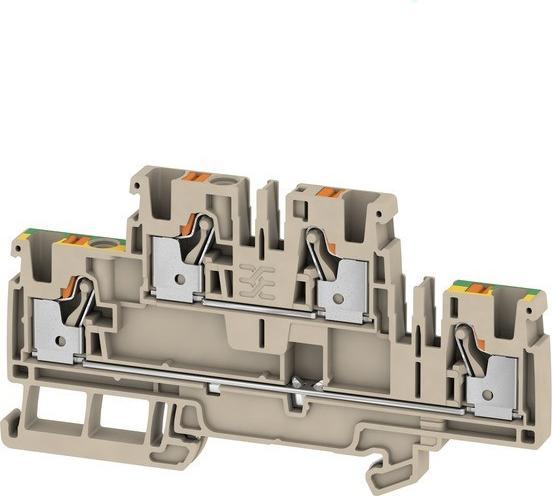

Weidmüller Multi-Storey Terminal Block A2T 4 FT-PE

Manufacturer: Weidmüller
Designation: Multi-Storey Terminal Block PUSH IN, 4 mm²
Type: A2T 4 FT-PE
Connectable conductor cross-section for fine-stranded without ferrule: 0.5 - 6 mm²
Connectable conductor cross-section for fine-stranded with ferrule: 0.5 - 6 mm²
Connectable conductor cross-section for single-stranded: 0.5 - 4 mm²
Connectable conductor cross-section for multi-stranded: 0.5 - 6 mm²
Rated current In: 32 A
Rated voltage: 800 V
Electrical connection type 1: Plug connection
Number of levels: 2
Number of connection points per level: 2
Mounting type: TH35 DIN rail
Material of insulating body: Thermoplastic
Operating temperature: -60 - 130 °C
Flammability class of insulating material according to UL 94: V0
Width: 6.1 mm
Height: 100 mm
Depth: 53.5 mm
End plate required: yes
Color: beige
Internally bridged levels: no

Weidmüller Multi-Storey Terminal Block A2T 4 FT-PE: Additional Details
Multi-level terminal block for connecting or linking conductors with permanently secure contact. Hardened steel withstands mechanical forces, while tin-plated copper ensures optimal conductivity. Space-saving design.
